Pinnacle LV8

Q: How much does the Pinnacle LV8 cost?

The price estimate for the Pinnacle LV8 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-lv8#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

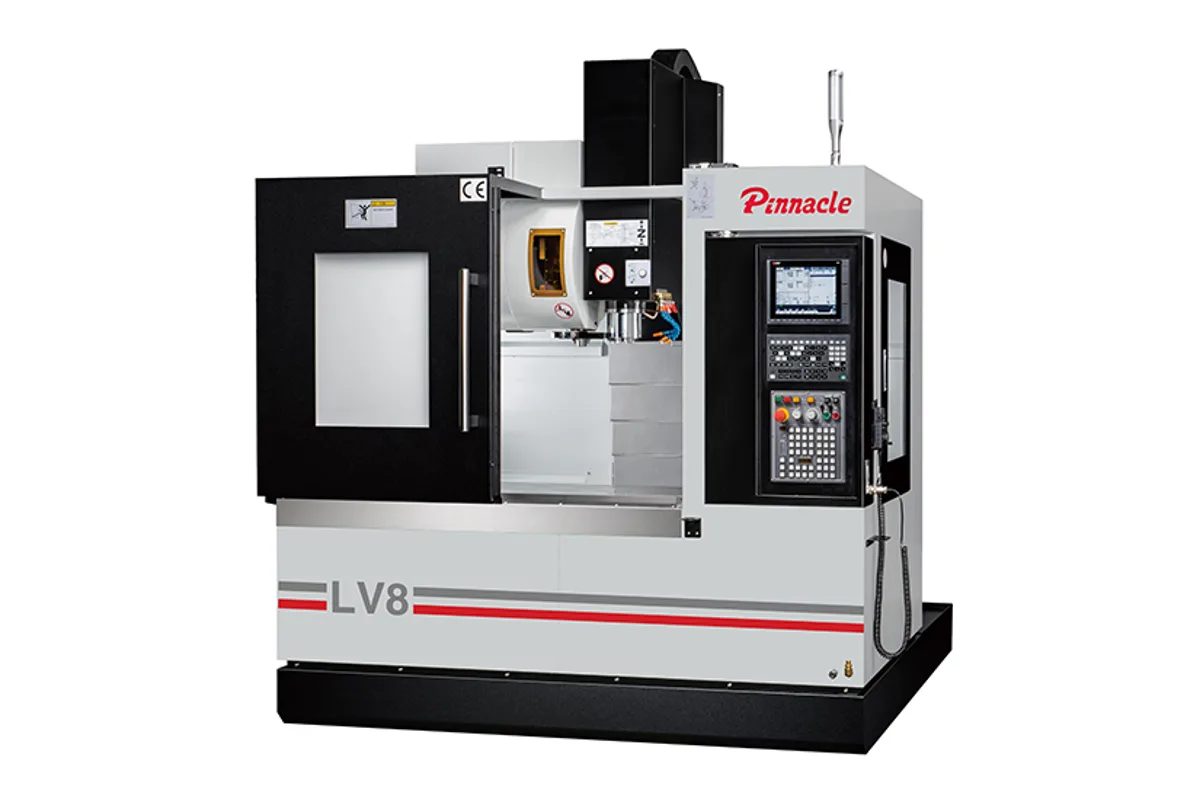

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO30; ISO40

Table Size

910x510 mm (35.8x20.1 in)

Spindle Power

3.7 / 5.5 kW (5.0 / 7.4 hp) (con/30 min)

x axis travel

810 mm (31.9 in)

y axis travel

510 mm (20.1 in)

z axis travel

510 mm (20.1 in)

How much does the Pinnacle LV8 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle LV8 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle LV8 takes the high-speed LV5 design and lengthens it: 810 mm (31.9 in) of X, 510 mm (20.1 in) of Y and 510 mm (20.1 in) of Z over a 910x510 mm (35.8x20.1 in) table. Rapids stay at 36 / 36 / 36 m/min.

Nothing about the spindle changes with the larger envelope. The motor is 3.7 / 5.5 kW (5.0 / 7.4 hp), the direct-drive spindle is listed at 12,000 (15,000) rpm, and the ISO30 built-in spindle at 24,000 (36,000/HSK-E40) rpm. So this is still a machine for small tools at high speed. What the buyer gains is room for a longer part, a second vise or a small rotary table beside the work.

Table load is 300 kg (661 lb), the same as on the smaller model, which keeps fixtures light. The spindle centre is 462 mm (18.2 in) from the column with ISO30 and 562 mm (22.1 in) with ISO40, and the tool diameter limit is Ø75 with adjacent tools and Ø150 without.

Weight is 3,600 kg (7,937 lb) on a 2,200 x 2,380 mm (86.6 x 93.7 in) floor space, with a 150 L coolant tank and a 15 kVA, 220 V supply. Pinnacle's table prints two different tool counts in the LV8 columns without labelling them, so the magazine size should be confirmed with the quotation.

Full Specifications

Parameter	Value
Table Size	910x510 mm (35.8x20.1 in)
X Axis Travel	810 mm (31.9 in)
Y Axis Travel	510 mm (20.1 in)
Z Axis Travel	510 mm (20.1 in)
Max Table Load	300 kg (661 lb)
Distance Spindle Nose to Table	100~610 mm (3.9~24.0 in)
T-Slots	14x125x4 (Width x Distance x Number mm)
Spindle Taper	ISO30; ISO40
Spindle Center to Column	ISO30: 462 mm (18.2 in); ISO40: 562 mm (22.1 in)
Spindle Speed Direct Drive	12,000 (15,000) rpm
Spindle Speed Built in	ISO30: 24,000 (36,000/HSK-E40) rpm
Draw Bar Force	ISO30: 300 kgf; ISO40: 600 kgf
Spindle Motor Power	3.7 / 5.5 kW (5.0 / 7.4 hp) (con/30 min)
Rapid Traverse Xyz	36 / 36 / 36 m/min
Tool Magazine Type	Disk
Max Tool Diameter (full magazine)	Adjacent Tools Ø75/W/O Adjacent Tools Ø150 mm (Adjacent Tools Ø3.0/W/O Adjacent Tools Ø5.9 in)
Air Requirement	6 kg/cm²
Power Requirements	220 V
Power Requirement	15 kVA
Coolant Tank Capacity	150 L
Machine Weight	3,600 kg (7,937 lb)
Machine Height	2,815 mm (110.8 in)
Floor Space	2,200 x 2,380 mm (86.6 x 93.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

810 mm (31.9 in) of X travel with the same 36 / 36 / 36 m/min rapids as the LV5
High-speed spindle choices up to 24,000 (36,000/HSK-E40) rpm on ISO30
910x510 mm (35.8x20.1 in) table leaves room for two setups
Light installation: 3,600 kg (7,937 lb) and 15 kVA

Limitations

Table load remains 300 kg (661 lb) despite the longer table
3.7 / 5.5 kW (5.0 / 7.4 hp) motor is sized for small tools only
Tool capacity for this model is not printed clearly in the maker's table

Best For

Longer small parts and plates up to 810 mm (31.9 in) High-speed finishing of aluminium and graphite Twin-vise production of small components

Frequently Asked Questions

01 What are the travels and table size of the Pinnacle LV8?

Travels are 810 mm (31.9 in) in X, 510 mm (20.1 in) in Y and 510 mm (20.1 in) in Z. The table is 910x510 mm (35.8x20.1 in), carries 300 kg (661 lb) and has T-slots listed as 14x125x4.

02 Is the LV8 spindle the same as the LV5?

Yes. Both list a 3.7 / 5.5 kW (5.0 / 7.4 hp) motor, a direct-drive spindle at 12,000 (15,000) rpm and an ISO30 built-in spindle at 24,000 (36,000/HSK-E40) rpm. The table notes that ISO30 and ISO40 are both available on the LV5 and the LV8.

03 How large a tool can the LV8 hold?

The maximum tool diameter is Ø75 with adjacent tools in place and Ø150 without adjacent tools. Tool length and weight are printed in two unlabelled columns on the maker's page, so those limits should be confirmed with Pinnacle.

04 How much space does the LV8 take?

Floor space is 2,200 x 2,380 mm (86.6 x 93.7 in) and height is 2,815 mm (110.8 in). The machine weighs 3,600 kg (7,937 lb), and it needs 220 V, 15 kVA and air at 6 kg/cm².
