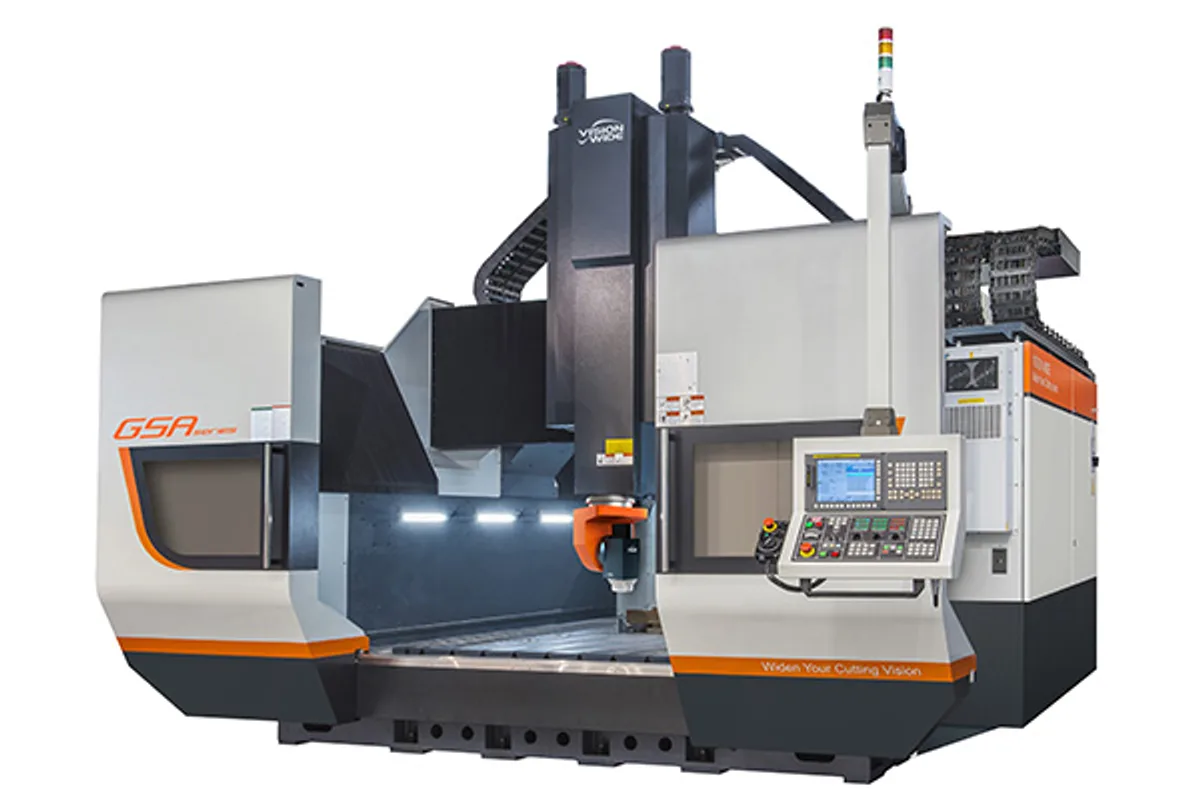

Vision Wide GSA-6027
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
Table Size
x axis travel
y axis travel
z axis travel
spindle power cont 30 min
How much does the Vision Wide GSA-6027 cost?
Price estimate
We do not have a price for the Vision Wide GSA-6027 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide GSA-6027 extends the 2,700 mm (106.3 in) wide GSA gantry to 6,000 mm (236.2 in) of X travel. The fixed table is 6,000×2,700 mm (236.2×106.3 in).
Six metres of table under a high-speed spindle produces a lot of chips over a large area, and the standard equipment reflects that. A screw type chip conveyor runs along the table sides and feeds a caterpillar type chip conveyor with water tank. A dual belt type chip conveyor with water tank is the optional alternative. On a fixed-table machine the chips stay where they fall, so the side conveyors do work that table motion would otherwise help with.
Coolant choices are a cutting fluid cooling system as standard, with coolant through spindle system 20 / 70 bar and an oil mist cooling device (MQL) as options. For aluminum tooling and composite-related molds, MQL is often the cleaner choice.
The rest is common to the series: an indexing IAC head with a 15,000 rpm spindle, 50/65 kW (67.1/87.2 hp), 32/32/20 m/min rapids, 1~20,000 mm/min cutting feed and a HEIDENHAIN TNC640. Z travel is 1,000 mm, or 1,200 mm. For more width, the GSA-6032 has 3,200 mm (126.0 in) of Y.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 6,000 mm (236.2 in) |
| Y Axis Travel | 2,700 mm (106.3 in) |
| Z Axis Travel | 1,000/1,200 mm (39.4/47.2 in)(Opt.) |
| Table Size | 6,000×2,700 mm (236.2×106.3 in) |
| Spindle Power Cont 30 Min | 50/65 kW (67.1/87.2 hp) |
| Max Spindle Speed | 15,000 rpm |
| Cutting Feed Rate | 1~20,000 mm/min |
| Rapid Traverse Xyz | 32/32/20 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 6,000 mm (236.2 in) of X travel on a fixed 6,000×2,700 mm (236.2×106.3 in) table
- Table-side screw conveyors and a caterpillar type chip conveyor are standard
- Oil mist cooling device (MQL) and 20 / 70 bar through-spindle coolant available
- 32/32/20 m/min rapid traverse
Limitations
- Through-spindle coolant and MQL are options
- Z travel is 1,000 mm as standard on a six-metre machine
- Y travel of 2,700 mm (106.3 in); the GSA-6032 is the wider version
Best For
Frequently Asked Questions
01
As standard, by a screw type chip conveyor on the table sides and a caterpillar type chip conveyor with water tank. A dual belt type chip conveyor with water tank is listed as an option.
02
A cutting fluid cooling system is standard. Options are a coolant through spindle system 20 / 70 bar and an oil mist cooling device (MQL).
03
X travel 6,000 mm (236.2 in), Y travel 2,700 mm (106.3 in), Z travel 1,000 mm or optionally 1,200 mm. The table is 6,000×2,700 mm (236.2×106.3 in).
04
Yes. The GSA-6032 has the same 6,000 mm (236.2 in) of X travel with 3,200 mm (126.0 in) of Y and a 6,000×3,200 mm (236.2×126.0 in) table.
