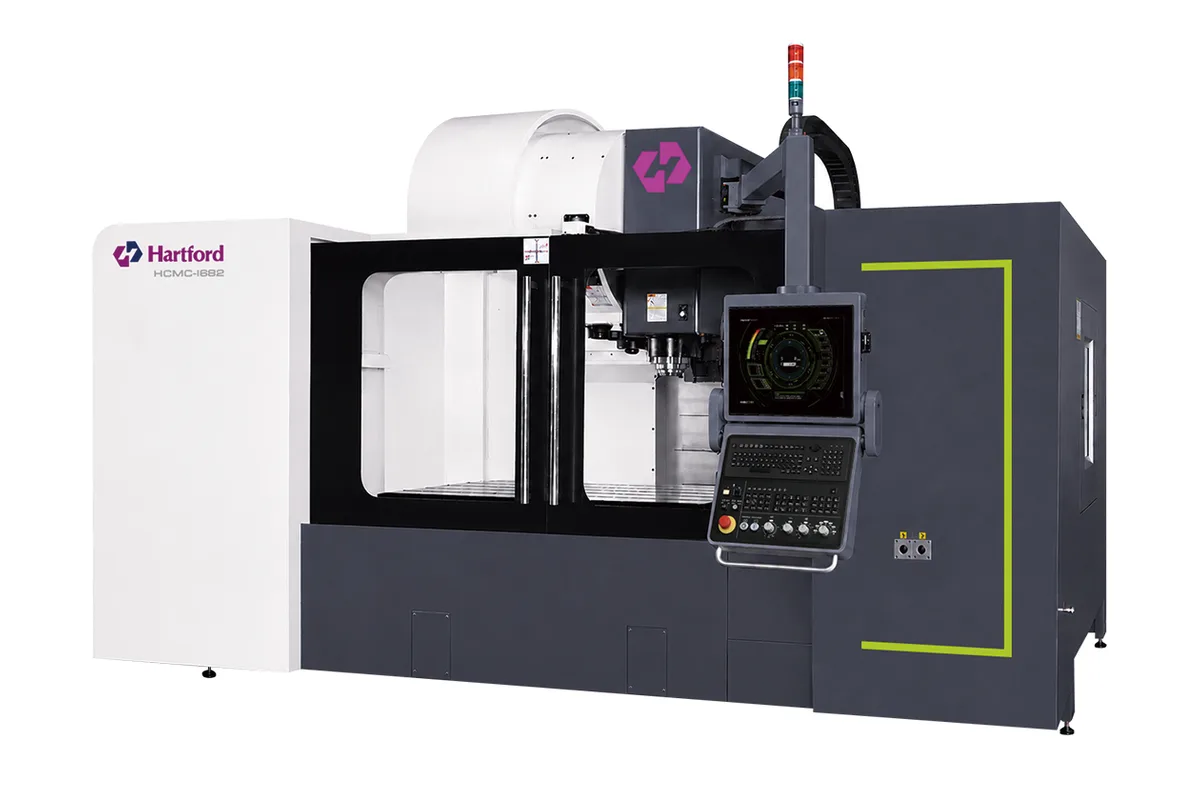

Hartford HCMC-1682
Image: hartfordcnc.com, Hartford
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
max table load
x axis travel
How much does the Hartford HCMC-1682 cost?
Price estimate
We do not have a price for the Hartford HCMC-1682 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
Hartford's HCMC-1682 is a 50-taper box-guideway vertical machining center with 1,600 mm (63.0 in) of X travel and 820 mm (32.3 in) of Y. The table is 1,750 x 820 mm (68.9 x 32.3 in) and takes an average load of 2,200 kg (4,850 lb).
Z travel is a choice on this model. The row reads 660 opt. 820 mm: the standard column gives 660 mm and a taller version 820 mm. Which one to order depends on the work. Deep die cavities and tall fixtures on a fourth axis need the longer stroke, while flat plate work is better served by the shorter, stiffer arrangement.
The spindle is driven through Hartford's own two-step gearbox at 4,000 / 6,000 / 8,000 rpm, or directly as a DDS unit at 10,000 / 12,000 rpm. Motor ratings start at 11 / 15 kW, one step above the HCMC-1370's base motor, and go to 15 / 18.5 kW and 22 / 26 kW as options (Cont. / 30 min).
A box-way machine of this size moves a heavy saddle and table, and Hartford addresses that in three ways: guideway spacing on X increased by 35% so the table does not overhang, a counterweighted Z axis, and the Air Suspension function. Dual screws on the base carry chips away. The magazine is an arm type with 24 tools, or 30, 32 or 40.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,750 x 820 mm (68.9 x 32.3 in) |
| Max Table Load | 2,200 kg (4,850 lb) |
| X Axis Travel | 1,600 mm (63.0 in) |
| Y Axis Travel | 820 mm (32.3 in) |
| Z Axis Travel | 660 opt. 820 mm |
| Spindle Taper | #50 |
| Spindle Speed Gear | 4,000 / 6,000 / 8,000 rpm |
| Spindle Speed Dds | 10,000 / 12,000 rpm |
| Tool Capacity | A: 24 (30 / 32 / 40) pcs |
| Tool Shank | BT50 (BBT / CAT / DIN69871) |
| Spindle Motor Power | 11 / 15 opt. 15 / 18.5; 22 / 26 kW (Cont. / 30 min) |
Specifications sourced from hartfordcnc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,600 x 820 mm X/Y travel on box guideways with a #50 spindle
- Z travel of 660 mm with an 820 mm option
- Table load of 2,200 kg (4,850 lb)
- Base motor of 11 / 15 kW, with 15 / 18.5 kW and 22 / 26 kW options (Cont. / 30 min)
- Dual chip screws on the base and 35% wider X guideway spacing, per Hartford
Limitations
- The 820 mm Z travel is an option, not the standard build
- Spindle speed is limited to 12,000 rpm with the DDS head and 8,000 rpm with the gear head
- #50 only; for a #40 spindle at this size Hartford offers the linear-guide MVP-16
- No published rapid traverse or cutting feed rates
Best For
Frequently Asked Questions
01
The table lists 660 opt. 820 mm, so 660 mm is standard and 820 mm is an option. X travel is 1,600 mm (63.0 in) and Y travel is 820 mm (32.3 in).
02
An average load of 2,200 kg (4,850 lb) on a table of 1,750 x 820 mm (68.9 x 32.3 in). Hartford says the X-axis guideway spacing was increased by 35% so that the table is not left overhanging with heavier workpieces.
03
Gear head: 4,000 / 6,000 / 8,000 rpm. DDS: 10,000 / 12,000 rpm. Both are #50 with BT50 shanks. The motor is 11 / 15 kW, optionally 15 / 18.5 kW or 22 / 26 kW, as continuous / 30 min ratings.
04
Length. The HCMC-2082 has 2,060 mm (81.1 in) of X travel, a 2,150 x 820 mm (84.6 x 32.3 in) table and a 2,600 kg (5,732 lb) load rating. Y travel, the Z options, spindles, motors and magazine are the same as on the HCMC-1682.
