Pinnacle DV1732

Q: How much does the Pinnacle DV1732 cost?

The price estimate for the Pinnacle DV1732 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1732#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

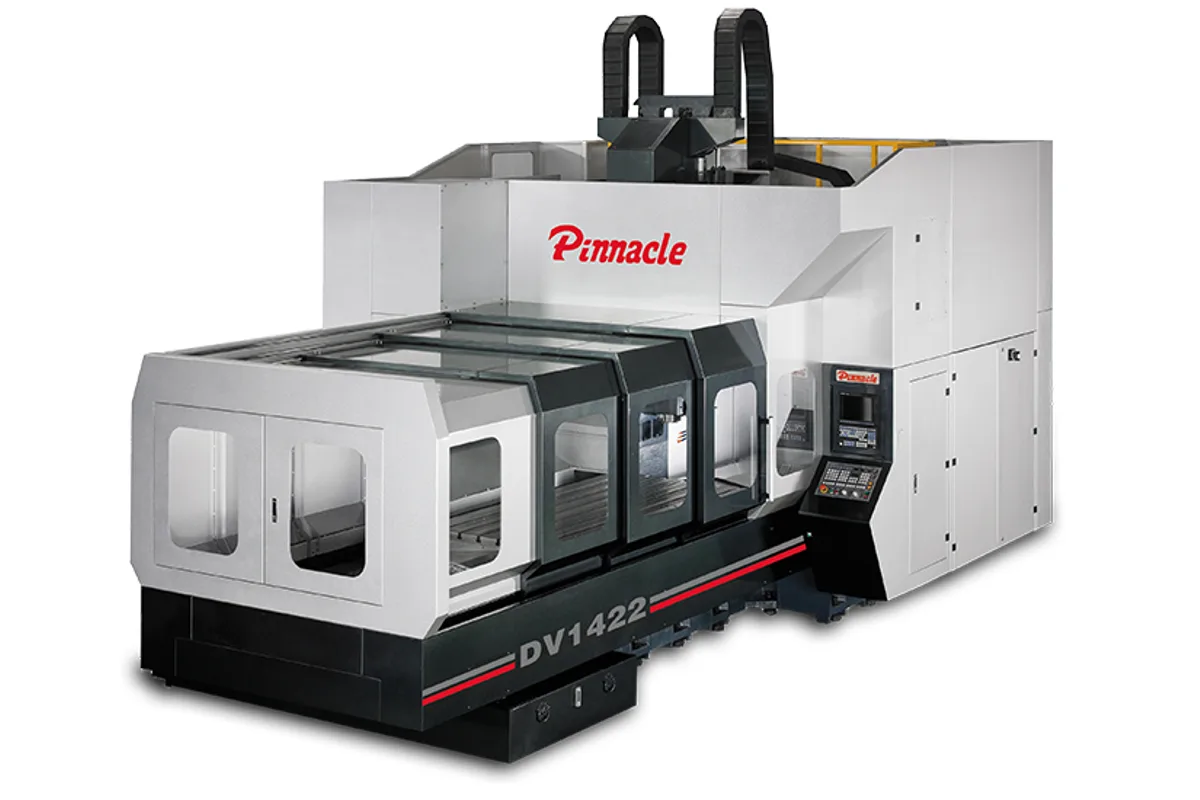

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

3,200 x 1,500 mm (126.0 x 59.1 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

3,200 mm (126.0 in)

y axis travel

1,700 mm (66.9 in)

How much does the Pinnacle DV1732 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1732 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV1732 is the mid-length, mid-width DV: 3,200 mm (126.0 in) of X, 1,700 mm (66.9 in) of Y and a 3,200 x 1,500 mm (126.0 x 59.1 in) table. Its table rating of 10,000 kg/m2 sits between the 8,000 kg/m2 of the DV1722 and the 12,000 kg/m2 of the DV1742.

That makes it a general-purpose machine for large parts. The table is a little over twice as long as it is wide, enough for a big mould base or for two medium jobs set side by side along X, and the 1,900 mm (74.8 in) column spacing leaves clearance beside the table.

Rapids are 16/16/20 m/min. Compared with the DV1432, which shares the X travel and is listed at 16/20/20 m/min, only the Y rapid is lower. Weight is 22,500 kg (49,603 lb) against 17,000 kg (37,478 lb) for the DV1432.

The spindle nose works from 110~1,010 mm (4.3~39.8 in) above the table across 900 mm (35.4 in) of Z. Cutting is done by the ISO50 gear-driven spindle with a 15/18.5 kW (20.1/24.8 hp) motor and a Ø100 mm (Ø3.9 in) spindle inner diameter, 8,000 rpm in the table. The linear ways on Z are laid out on the sides of the box-type spindle head, which Pinnacle says upgrades the head's rigidity. Allow 8,130 x 5,300 mm (320.1 x 208.7 in) of floor and 50 kVA.

Full Specifications

Parameter	Value
X Axis Travel	3,200 mm (126.0 in)
Y Axis Travel	1,700 mm (66.9 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	110~1,010 mm (4.3~39.8 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,900 mm (74.8 in)
Table Size	3,200 x 1,500 mm (126.0 x 59.1 in)
T-Slots	22 x 150 x 9 (W D x N mm )
Max Table Load	10,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	1,800 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	16/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	22,500 kg (49,603 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	8,130 x 5,300 mm (320.1 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

3,200 x 1,500 mm (126.0 x 59.1 in) table rated at 10,000 kg/m2
1,700 mm (66.9 in) of Y under a 1,900 mm (74.8 in) column spacing
X rapid of 16 m/min, the same as the shorter DV1722
Side-mounted Z linear ways on a box-type spindle head

Limitations

8,130 x 5,300 mm (320.1 x 208.7 in) of floor and 22,500 kg (49,603 lb) to found and level
Spindle nose rises no higher than 1,010 mm (39.8 in) above the table
Gear-driven spindle is listed at 8,000 rpm, with one motor rating across the range

Best For

Large mould bases and die shoes up to 3,200 x 1,500 mm (126.0 x 59.1 in) Two medium workpieces set up side by side along X Dense steel parts that need a 10,000 kg/m2 table

Frequently Asked Questions

01 What is the table load of the Pinnacle DV1732?

The table lists 10,000 kg/m2 on a 3,200 x 1,500 mm (126.0 x 59.1 in) table with T-slots given as 22 x 150 x 9. The figure is per square metre. The DV1722 is listed at 8,000 kg/m2 and the DV1742 at 12,000 kg/m2.

02 How does the DV1732 compare with the DV1932?

Both have 3,200 mm (126.0 in) of X, 900 mm (35.4 in) of Z and columns 1,900 mm (74.8 in) apart. The DV1932 has 1,900 mm (74.8 in) of Y, a 3,200 x 1,700 mm (126.0 x 66.9 in) table and a 2,000 kgf draw bar, with rapids of 12/16/20 m/min. The DV1732 has 1,700 mm (66.9 in) of Y, a 1,800 kgf draw bar and rapids of 16/16/20 m/min.

03 What clearance is there under the spindle of the DV1732?

Spindle nose to table surface is 110~1,010 mm (4.3~39.8 in), with 900 mm (35.4 in) of Z travel. Spindle centre to column is 404 mm (15.9 in). Tool length has to come out of the 1,010 mm (39.8 in) maximum when judging the tallest part.

04 What services does the DV1732 need?

A 50 kVA electrical supply and compressed air at 6 kg/cm². The coolant tank holds 900 L. The machine weighs 22,500 kg (49,603 lb), stands 4,500 mm (177.2 in) high and takes 8,130 x 5,300 mm (320.1 x 208.7 in) of floor.
