Pinnacle Vertical Machining Centers (VMC)

Pinnacle QV147

Q: How much does the Pinnacle QV147 cost?

The price estimate for the Pinnacle QV147 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-qv147#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

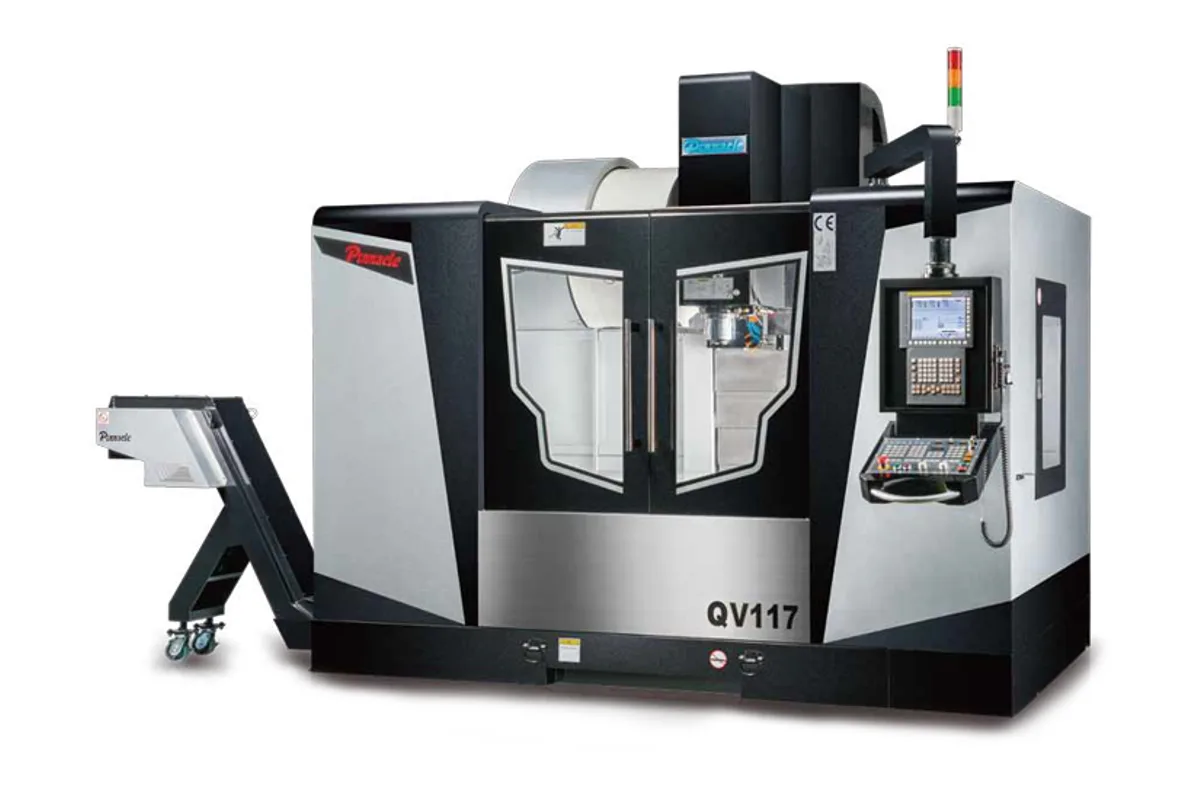

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO40; ISO50

Tool Capacity

ISO40: 24; ISO50: 24 / 32

Table Size

1,600 x 700 mm (63.0 x 27.6 in)

Spindle Power

ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)

x axis travel

1,400 mm (55.1 in)

y axis travel

710 mm (28.0 in)

How much does the Pinnacle QV147 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle QV147 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle QV147 carries the most of the three mid-size QV machines: 1,500 kg (3,307 lb) on a 1,600 x 700 mm (63.0 x 27.6 in) table. Travels are 1,400 mm (55.1 in) in X, 710 mm (28.0 in) in Y and 610 mm (24.0 in) in Z, all on hardened box ways.

At 11,000 kg (24,250 lb), the machine is heavier than the table load it supports by a wide margin, and the base is the wide four-slideway design used across this size. For a buyer the question is whether the part needs the longer X travel or the higher table rating compared with the QV137; the spindle, the tool changer and the rapids of 20 / 20 / 16 m/min do not change.

Spindle power is 7.5 / 11 kW (10.1 / 14.8 hp) with ISO40 or 11 / 15 kW (14.8 / 20.1 hp) with ISO50. The larger taper brings a DISK / CHAIN magazine with 24 / 32 tools and a tool diameter limit of Ø105 / Ø127 mm (Ø4.1 / Ø5.0 in).

Pinnacle's accessories list for the page includes rigid tapping, a spindle oil cooler and air blast through the spindle, while coolant through spindle, the 20 bar pump and the chip conveyor are options. The machine needs 3,890 × 3,235 mm (153.1 × 127.4 in) of floor and a 30 kVA supply.

Full Specifications

Parameter	Value
Table Size	1,600 x 700 mm (63.0 x 27.6 in)
X Axis Travel	1,400 mm (55.1 in)
Y Axis Travel	710 mm (28.0 in)
Z Axis Travel	610 mm (24.0 in)
Max Table Load	1,500 kg (3,307 lb)
Distance Spindle Nose to Table	110 ~ 720 mm (4.3 ~ 28.3 in)
T-Slots	18 x 125 x 5 (Width x Distance x Number mm)
Spindle Taper	ISO40; ISO50
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø100 mm (Ø3.9 in)
Spindle Center to Column	760 mm (29.9 in)
Spindle Speed Belt Drive	ISO40: 40 - 8,000(10,000/12,000) rpm; ISO50: 40 - 6,000 (8,000) rpm
Spindle Speed Gear Drive	ISO40: L40 ~ 1750, H1751 ~ 8000 rpm; ISO50: L40 ~ 1500, H1501 ~ 6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)
Rapid Traverse Xyz	20 / 20 / 16 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	ISO40: DISK; ISO50: DISK / CHAIN
Tool Capacity	ISO40: 24; ISO50: 24 / 32
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 / Ø127 mm (Ø4.1 / Ø5.0 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 350 mm (13.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirements	220V, 3Ph, 50 / 60Hz
Power Requirement	30 kVA
Coolant Tank Capacity	350 L
Machine Weight	11,000 kg (24,250 lb)
Machine Height	3,000 mm (118.1 in)
Floor Space	3,890 × 3,235 mm (153.1 × 127.4 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,500 kg (3,307 lb) table load on a 1,600 x 700 mm (63.0 x 27.6 in) table
1,400 mm (55.1 in) of X travel on box ways
ISO50 option with 11 / 15 kW (14.8 / 20.1 hp) and 24 / 32 tools
11,000 kg (24,250 lb) machine weight for damping in heavy cuts

Limitations

Rapid traverse of 20 / 20 / 16 m/min
Coolant through spindle and chip conveyor are options
Needs 3,890 × 3,235 mm (153.1 × 127.4 in) of floor

Best For

Heavy plates and die shoes up to 1,500 kg (3,307 lb) Long steel components across 1,400 mm (55.1 in) Shops standardised on ISO50 face mills and drills

Frequently Asked Questions

01 What are the travels of the Pinnacle QV147?

X is 1,400 mm (55.1 in), Y is 710 mm (28.0 in) and Z is 610 mm (24.0 in). The spindle centre is 760 mm (29.9 in) from the column, and the table measures 1,600 x 700 mm (63.0 x 27.6 in).

02 How does the QV147 compare with the QV159?

The QV159 is a larger frame: 1,500 mm (59.1 in) x 900 mm (35.4 in) x 850 mm (33.5 in) travels, a 2,000 kg (4,409 lb) table load and 14,000 kg (30,864 lb) of machine weight. The QV159 is also slower in traverse, at 16 / 16 / 12 m/min.

03 What accessories are listed for the QV147?

The accessories list includes air blast through spindle, a coolant flushing system, telescopic covers on three axes, a full splash guard, centralized automatic lubrication, rigid tapping and a spindle oil cooler. Coolant through spindle and the chip conveyor are marked as options.

04 Which tapers can the QV147 be built with?

ISO40 or ISO50. The ISO40 spindle has a Ø70 mm (Ø2.8 in) bearing bore and a 950 kgf draw bar; the ISO50 spindle has Ø100 mm (Ø3.9 in) and 2,000 kgf. Motor ratings are 7.5 / 11 kW and 11 / 15 kW.
