Pinnacle QV179

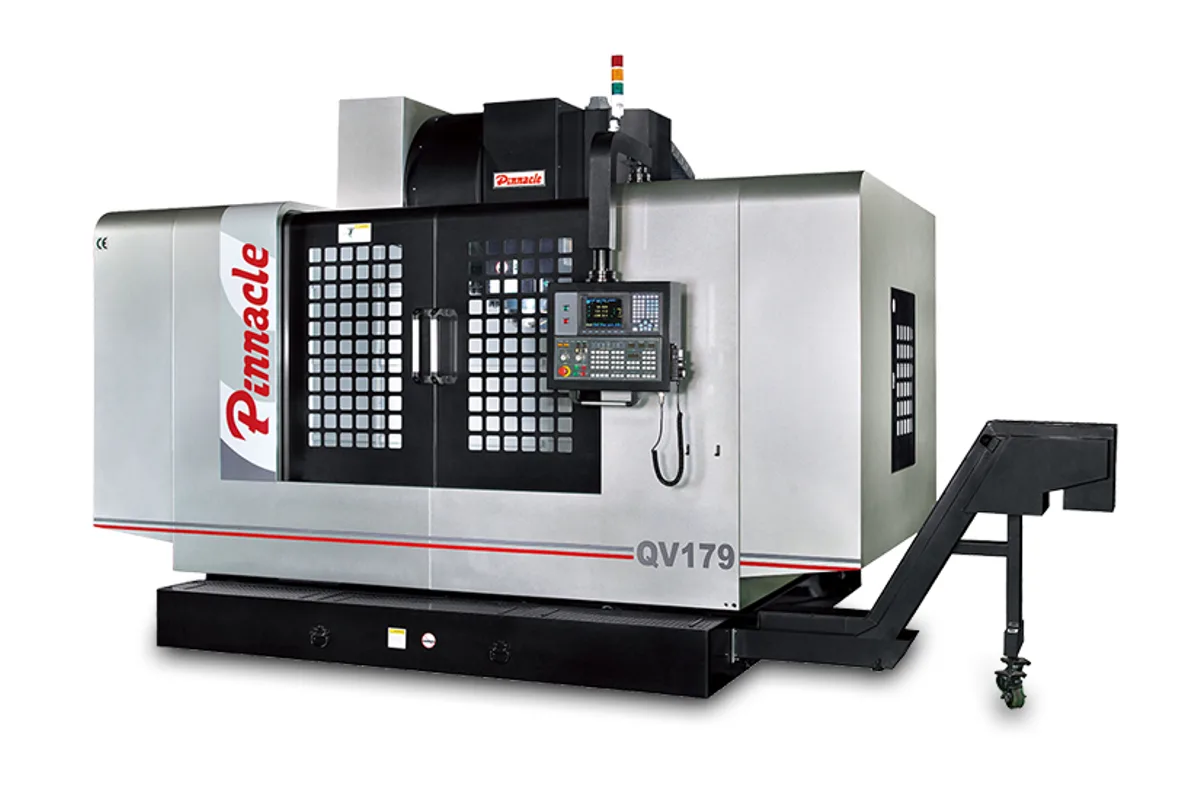

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Spindle Taper
Tool Capacity
Table Size
max table load
distance spindle nose to table
t slots
How much does the Pinnacle QV179 cost?
Price estimate
We do not have a price for the Pinnacle QV179 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle QV179 has a 2,000 x 850 mm (78.7 x 33.5 in) table rated for 2,500 kg (5,511 lb) on a box-way frame that weighs 15,000 kg (33,069 lb). Pinnacle's feature list for the three large QV models reads 1500 (1700, 2000) X 900 x 850 mm Travel; the travel cell for this model is misprinted in the maker's table, so the axis rows are omitted from the table on this page.
A curiosity worth noting for fixture planning: the table here is longer than the 1,900 x 850 mm (74.8 x 33.5 in) table of the linear-way LV179, although both belong to the 1700 mm travel class.
Like the QV159 it is a slow, heavy cutter. Rapids are 16 / 16 / 12 m/min, ways are hardened sliding surfaces, and ball screws are 50mm in diameter. The ISO50 side of the table lists a Ø100 mm (Ø3.9 in) spindle bearing bore, a 2,000 kgf draw bar and a DISK / CHAIN magazine with 24 / 32 tools.
The spindle motor row is printed inconsistently for this group, and the feature list gives 25/20HP. Plan for 4,450 x 2,900 mm (175.2 x 114.2 in) of floor, 3,200 mm (126.0 in) of height, a 40 kVA supply and a 700 L coolant tank. Pinnacle lists Mitsubishi, Fanuc, Heidenhain, Siemens and Fagor controls.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 2,000 x 850 mm (78.7 x 33.5 in) |
| Max Table Load | 2,500 kg (5,511 lb) |
| Distance Spindle Nose to Table | 150 ~ 1,000 mm (5.9 ~ 39.4 in) |
| T-Slots | 18 x 150 x 5 (Width x Distance x Number mm) |
| Spindle Taper | ISO40; ISO50 |
| Spindle Bearing Inner Diameter | ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø100 mm (Ø3.9 in) |
| Spindle Center to Column | 950 mm (37.4 in) |
| Spindle Speed Belt Drive | ISO40: 40 - 8,000(10,000/12,000) rpm; ISO50: 40 - 6,000 (8,000) rpm |
| Spindle Speed Gear Drive | ISO40: L40 ~ 2000, H2001-8000 rpm; ISO50: L40 ~ 1500, H1501 ~ 6000 rpm |
| Draw Bar Force | ISO40: 950 kgf; ISO50: 2,000 kgf |
| Rapid Traverse Xyz | 16 / 16 / 12 m/min |
| Cutting Feed Rate | 8,000 mm/min |
| Tool Magazine Type | ISO40: DISK; ISO50: DISK / CHAIN |
| Tool Capacity | ISO40: 24; ISO50: 24 / 32 |
| Max Tool Diameter (full magazine) | ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 / Ø127 mm (Ø4.1 / Ø5.0 in) |
| Max Tool Length | ISO40: 250 mm (9.8 in); ISO50: 350 mm (13.8 in) |
| Max Tool Weight | ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb) |
| Air Requirement | 6 kg/cm² |
| Power Requirements | 220V, 3Ph, 50 / 60Hz |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 700 L |
| Machine Weight | 15,000 kg (33,069 lb) |
| Machine Height | 3,200 mm (126.0 in) |
| Floor Space | 4,450 x 2,900 mm (175.2 x 114.2 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 2,000 x 850 mm (78.7 x 33.5 in) table with a 2,500 kg (5,511 lb) rating
- 15,000 kg (33,069 lb) box-way structure with 50mm ball screws
- ISO50 spindle with a Ø100 mm (Ø3.9 in) bearing bore
- DISK / CHAIN magazine with 24 / 32 tools on ISO50
Limitations
- Axis travels are misprinted in the maker's table and need written confirmation
- 16 / 16 / 12 m/min rapids
- Spindle motor rating is not clearly printed for this model
Best For
Frequently Asked Questions
01
2,000 x 850 mm (78.7 x 33.5 in), with a maximum load of 2,500 kg (5,511 lb) and T-slots listed as 18 x 150 x 5. Spindle nose to table distance is 150 ~ 1,000 mm (5.9 ~ 39.4 in).
02
The feature list for the QV159/QV179/QV209 gives 1500 (1700, 2000) X 900 x 850 mm Travel, which makes the QV179 the 1700 mm model. The specification table misprints the cell, so have Pinnacle confirm X, Y and Z.
03
ISO40: 24 tools up to Ø90 mm (Ø3.5 in), 250 mm (9.8 in) and 8 kg (18 lb). ISO50: 24 / 32 tools up to Ø105 / Ø127 mm (Ø4.1 / Ø5.0 in), 350 mm (13.8 in) and 15 kg (33 lb).
04
The QV209 has a 2,200 x 850 mm (86.6 x 33.5 in) table rated for 3,000 kg (6,614 lb) and weighs 16,000 kg (35,273 lb). Rapids, spindle options and the 40 kVA supply are the same for both.
