Pinnacle LV209

Q: How much does the Pinnacle LV209 cost?

The price estimate for the Pinnacle LV209 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-lv209#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

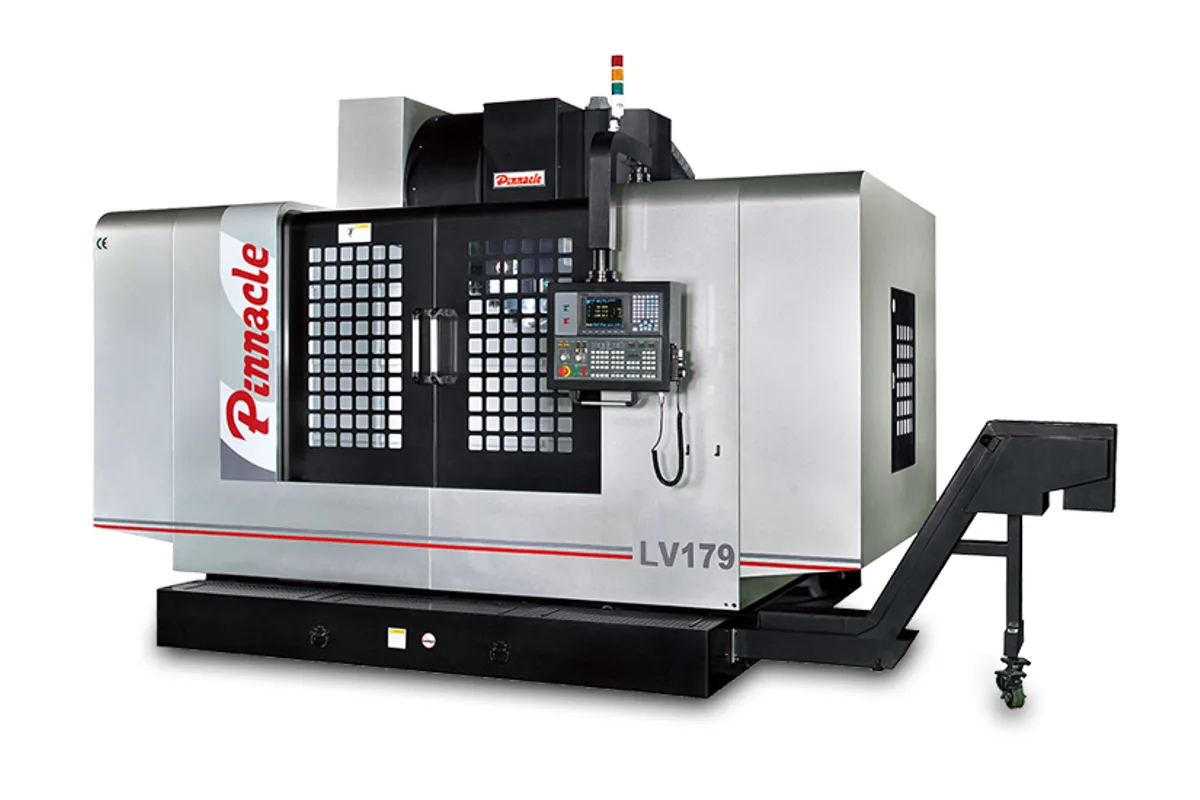

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

ISO40: 24; ISO50: 24 / 32

Table Size

2,200 x 850 mm (86.6 x 33.5 in)

Spindle Power

ISO40: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min); ISO50: 15 / 18.5 kW (20.1 / 24.8 hp) (con/30 min)

max table load

3,000 kg (6,614 lb)

distance spindle nose to table

100 ~ 950 mm (3.9 ~ 37.4 in)

t slots

18 x 150 x 5 (Width x Distance x Number mm)

How much does the Pinnacle LV209 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle LV209 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle LV209 is the longest machine in the LV line. Its table is 2,200 x 850 mm (86.6 x 33.5 in) and carries 3,000 kg (6,614 lb), and the feature list for the group, 1500 (1700, 2000) X 900 x 850 mm Travel, makes it the 2000 mm model. As with the LV179, the travel cell in Pinnacle's table is misprinted, so the per-axis travel rows are left out of the table here.

Moving that much table has a consequence. X and Y rapids are 18 / 18 / 16 m/min, slower than the 24 m/min of the two shorter models. On long parts with few repositioning moves that hardly matters; on plates full of small features it adds up.

Three tonnes of table load calls for the larger spindle, and the ISO50 column offers 15 / 18.5 kW (20.1 / 24.8 hp), a spindle bearing bore of Ø100 mm (Ø3.9 in) and tools of 350 mm (13.8 in) and 15 kg (33 lb). An ISO40 spindle with 11 / 15 kW (14.8 / 20.1 hp) is the alternative where speed matters more than torque.

Installation needs 5,000 x 2,900 mm (196.9 x 114.2 in) of floor for a 16,000 kg (35,273 lb) machine, plus a 40 kVA supply and a 700 L coolant tank. X and Y run on linear ways and Z on a box way, with a linear Z as an option.

Full Specifications

Parameter	Value
Table Size	2,200 x 850 mm (86.6 x 33.5 in)
Max Table Load	3,000 kg (6,614 lb)
Distance Spindle Nose to Table	100 ~ 950 mm (3.9 ~ 37.4 in)
T-Slots	18 x 150 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø100 mm (Ø3.9 in)
Spindle Center to Column	950 mm (37.4 in)
Spindle Speed Belt Drive	ISO40: 40 ~ 8,000(10,000/12,000) rpm; ISO50: 40 ~ 6,000(8,000) rpm
Spindle Speed Gear Drive	ISO40: L40~2000,H2001~8000 rpm; ISO50: L40~1500,H1501~6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min); ISO50: 15 / 18.5 kW (20.1 / 24.8 hp) (con/30 min)
Rapid Traverse Xyz	18 / 18 / 16 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	ISO40: DISK; ISO50: DISK / CHAIN
Tool Capacity	ISO40: 24; ISO50: 24 / 32
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 / Ø127 / Ø127 mm (Ø4.1 / Ø5.0 / Ø5.0 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 350 mm (13.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirements	220V, 3Ph,50/60Hz
Power Requirement	40 kVA
Coolant Tank Capacity	700 L
Machine Weight	16,000 kg (35,273 lb)
Machine Height	3,200 mm (126.0 in)
Floor Space	5,000 x 2,900 mm (196.9 x 114.2 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,200 x 850 mm (86.6 x 33.5 in) table with a 3,000 kg (6,614 lb) load rating
ISO50 spindle with 15 / 18.5 kW (20.1 / 24.8 hp) and a Ø100 mm (Ø3.9 in) bearing bore
16,000 kg (35,273 lb) of machine weight with a box-way Z axis
Tools up to 350 mm (13.8 in) long and 15 kg (33 lb) with ISO50

Limitations

Rapids fall to 18 / 18 / 16 m/min, the slowest in the LV159/LV179/LV209 group
Travel row is misprinted in the maker's table and must be confirmed with Pinnacle
Floor space of 5,000 x 2,900 mm (196.9 x 114.2 in)

Best For

Workpieces up to 3,000 kg (6,614 lb) on one table Long plates, beams and mould frames near 2000 mm Low-speed, high-torque ISO50 milling

Frequently Asked Questions

01 How large is the Pinnacle LV209 table?

The table measures 2,200 x 850 mm (86.6 x 33.5 in) and is rated for 3,000 kg (6,614 lb). T-slots are listed as 18 x 150 x 5 and the spindle nose travels 100 ~ 950 mm (3.9 ~ 37.4 in) above the table surface.

02 Why are the LV209 rapids slower than the LV159?

Pinnacle's table gives 18 / 18 / 16 m/min for the LV209 and 24 / 24 / 16 m/min for the LV159 and LV179. The page does not explain the difference; the LV209 has the longest table and the highest load rating of the three.

03 What does the LV209 need for installation?

Floor space of 5,000 x 2,900 mm (196.9 x 114.2 in), 3,200 mm (126.0 in) of height, a supply of 220V, 3Ph,50/60Hz at 40 kVA and air at 6 kg/cm². The machine weighs 16,000 kg (35,273 lb) and the coolant tank holds 700 L.

04 Which tool magazines are available on the LV209?

For ISO40 the table lists a 24-tool disk magazine with tools up to Ø90 mm (Ø3.5 in), 250 mm (9.8 in) and 8 kg (18 lb). For ISO50 it lists DISK / CHAIN with 24 / 32 tools up to 350 mm (13.8 in) and 15 kg (33 lb).
