Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV2122

Q: How much does the Pinnacle DV2122 cost?

The price estimate for the Pinnacle DV2122 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv2122#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

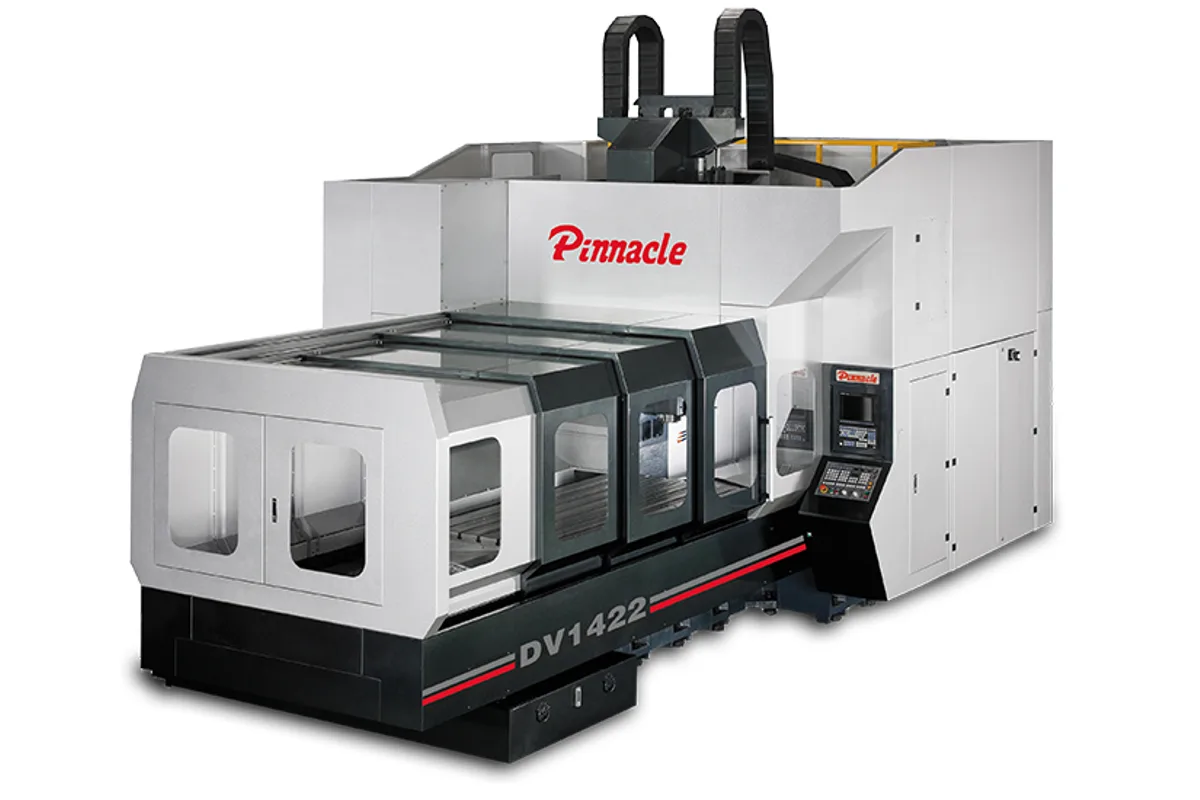

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

2,200 x 1,700 mm (86.6 x 66.9 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

2,200 mm (86.6 in)

y axis travel

2,100 mm (82.7 in)

How much does the Pinnacle DV2122 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV2122 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV2122 has more Y than table: 2,100 mm (82.7 in) of Y travel over a 2,200 x 1,700 mm (86.6 x 66.9 in) table, with 2,200 mm (86.6 in) of X and 900 mm (35.4 in) of Z. It is the short model of the widest DV bridge, whose columns stand 2,100 mm (82.7 in) apart.

Y travel reaching beyond the table edges is useful in practice. Parts and fixtures that overhang the 1,700 mm (66.9 in) table width can still be machined at their edges, and probing or facing the outer faces of a full-width plate does not run out of stroke. Pinnacle lists the same table size for the DV1922, so the choice between the two comes down to that extra Y.

Y is nearly as long as X here, which is unusual for a bridge machine. It weighs 23,500 kg (51,808 lb), more than the DV1922 at 22,000 kg (48,501 lb), on an identical 6,090 x 5,300 mm (239.8 x 208.7 in) floor space.

Rapids are 12/16/20 m/min and the table rating is 8,000 kg/m2. The ISO50 spindle is gear driven, with 8,000 rpm in the table, 15/18.5 kW (20.1/24.8 hp) and 2,000 kgf of draw bar force. The nose travels 160~1,060 mm (6.3~41.7 in) above the table.

Full Specifications

Parameter	Value
X Axis Travel	2,200 mm (86.6 in)
Y Axis Travel	2,100 mm (82.7 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	160~1,060 mm (6.3~41.7 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	2,100 mm (82.7 in)
Table Size	2,200 x 1,700 mm (86.6 x 66.9 in)
T-Slots	22 x 150 x 11 (W D x N mm)
Max Table Load	8,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	2,000 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	12/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	23,500 kg (51,808 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	6,090 x 5,300 mm (239.8 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,100 mm (82.7 in) of Y travel, more than the 1,700 mm (66.9 in) table width
2,100 mm (82.7 in) between the columns, the widest in the DV range
Spindle nose rises to 1,060 mm (41.7 in) above the table
2,000 kgf draw bar on a gear-driven ISO50 spindle

Limitations

Table is 2,200 x 1,700 mm (86.6 x 66.9 in), no wider than on the DV1922
Rapids are 12/16/20 m/min, slower on X and Y than on Z
Y travel equals the listed column spacing of 2,100 mm (82.7 in)
X travel is only 2,200 mm (86.6 in); the DV2132 has 3,200 mm (126.0 in)

Best For

Wide rings, flanges and plates that overhang a 1,700 mm (66.9 in) table Edge machining and facing of full-width workpieces Large square parts within 2,200 mm (86.6 in) of X

Frequently Asked Questions

01 How much Y travel does the Pinnacle DV2122 have?

2,100 mm (82.7 in), the largest Y in the DV range. The distance between the columns is listed as the same figure. X travel is 2,200 mm (86.6 in) and Z travel is 900 mm (35.4 in).

02 Is the DV2122 table wider than the DV1922 table?

No. Pinnacle lists 2,200 x 1,700 mm (86.6 x 66.9 in) with 22 x 150 x 11 T-slots for both. What the DV2122 adds is Y travel, 2,100 mm (82.7 in) against 1,900 mm (74.8 in) for the DV1922, and wider column spacing.

03 How tall a part fits under the DV2122 spindle?

Spindle nose to table surface is 160~1,060 mm (6.3~41.7 in) with 900 mm (35.4 in) of Z travel. The longer DV2132 is listed at 110~1,010 mm (4.3~39.8 in). Subtract tool length and fixture height from the 1,060 mm (41.7 in) maximum to find the tallest part.

04 What does the DV2122 weigh and what does it need?

23,500 kg (51,808 lb). It needs 6,090 x 5,300 mm (239.8 x 208.7 in) of floor, 4,500 mm (177.2 in) of height, a 50 kVA supply and air at 6 kg/cm². The coolant tank holds 900 L.
