Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV2132

Q: How much does the Pinnacle DV2132 cost?

The price estimate for the Pinnacle DV2132 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv2132#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

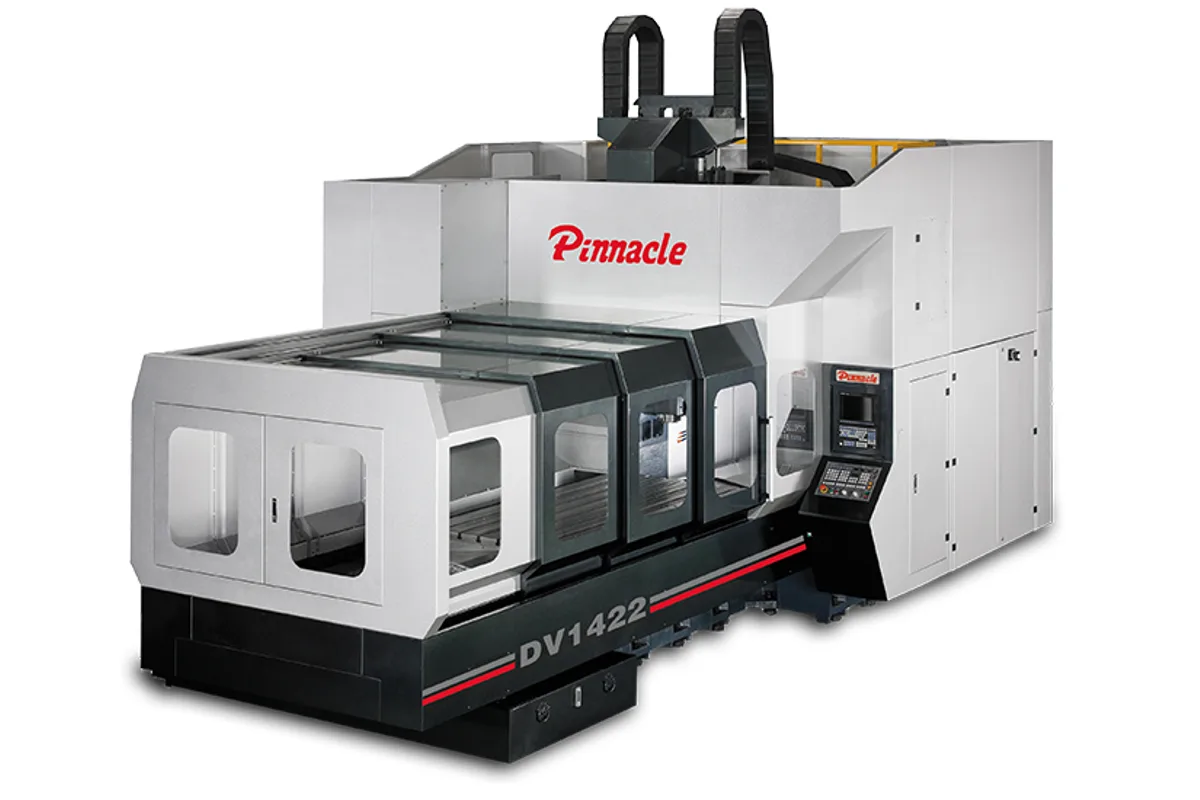

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

3,200 x 1,700 mm (126.0 x 66.9 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

3,200 mm (126.0 in)

y axis travel

2,100 mm (82.7 in)

How much does the Pinnacle DV2132 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV2132 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV2132 covers 3,200 mm (126.0 in) in X and 2,100 mm (82.7 in) in Y, the widest Y travel Pinnacle offers at this length, with 900 mm (35.4 in) of Z. The table measures 3,200 x 1,700 mm (126.0 x 66.9 in) and is rated at 10,000 kg/m2.

Its weight is worth a second look. Pinnacle lists 24,000 kg (52,910 lb), only slightly above the 23,500 kg (51,808 lb) of the DV2122, although the bed is longer. The DV1932, with the same table on a narrower bridge, is also listed at 23,500 kg (51,808 lb). Confirm the shipping weight for foundation and rigging plans.

What the wide bridge buys is clearance. Columns 2,100 mm (82.7 in) apart leave room on both sides of the 1,700 mm (66.9 in) wide table, for clamps that overhang, for long cutters working an outside face, or for a part that is simply wider than the table. Rapids are 12/16/20 m/min on X, Y and Z.

Pinnacle lists a semi-full splash guard, two screw type chip conveyors, a chain type 32-tool ATC and a gear head as standard. The spindle is ISO50 with a 15/18.5 kW (20.1/24.8 hp) motor, 2,000 kgf of draw bar force and 8,000 rpm in the table. The spindle nose range is 110~1,010 mm (4.3~39.8 in).

Full Specifications

Parameter	Value
X Axis Travel	3,200 mm (126.0 in)
Y Axis Travel	2,100 mm (82.7 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	110~1,010 mm (4.3~39.8 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	2,100 mm (82.7 in)
Table Size	3,200 x 1,700 mm (126.0 x 66.9 in)
T-Slots	22 x 150 x 11 (W D x N mm)
Max Table Load	10,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	2,000 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	12/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	24,000 kg (52,910 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	8,130 x 5,300 mm (320.1 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

2,100 mm (82.7 in) of Y travel on 3,200 mm (126.0 in) of X
3,200 x 1,700 mm (126.0 x 66.9 in) table rated at 10,000 kg/m2
Columns 2,100 mm (82.7 in) apart leave side clearance around the table
Chain type 32-tool ATC and gear head listed as standard

Limitations

Semi-full splash guard, not a full enclosure
Table width of 1,700 mm (66.9 in) is narrower than the Y travel
Listed weight of 24,000 kg (52,910 lb) is close to that of the shorter DV2122; confirm before rigging
Rapids are 12/16/20 m/min, slowest on X

Best For

Wide fabrications and frames up to 3,200 mm (126.0 in) long Parts overhanging the table that need 2,100 mm (82.7 in) of Y Heavy plates on a 10,000 kg/m2 table

Frequently Asked Questions

01 What are the travels of the Pinnacle DV2132?

3,200 mm (126.0 in) in X, 2,100 mm (82.7 in) in Y and 900 mm (35.4 in) in Z. The spindle nose is 110~1,010 mm (4.3~39.8 in) from the table and the spindle centre is 404 mm (15.9 in) from the column.

02 Is the DV2132 fully enclosed?

Pinnacle's standard accessories list for the DV series names a semi-full splash safety guard. Chips are handled by two screw type chip conveyors at the right and left of the base, and an air gun / water gun is included. Ask about guarding options if coolant containment matters for your work.

03 How does the DV2132 compare with the DV2142?

The DV2142 extends X to 4,200 mm (165.4 in) with a 4,200 x 1,700 mm (165.4 x 66.9 in) table rated at 12,000 kg/m2, and weighs 25,500 kg (56,217 lb). The DV2142 is listed with 10/16/20 m/min rapids against 12/16/20 m/min here. Y, Z, spindle and magazine are the same.

04 How much does the DV2132 weigh?

Pinnacle lists 24,000 kg (52,910 lb), with a floor space of 8,130 x 5,300 mm (320.1 x 208.7 in) and a height of 4,500 mm (177.2 in). The supply requirement is 50 kVA.
