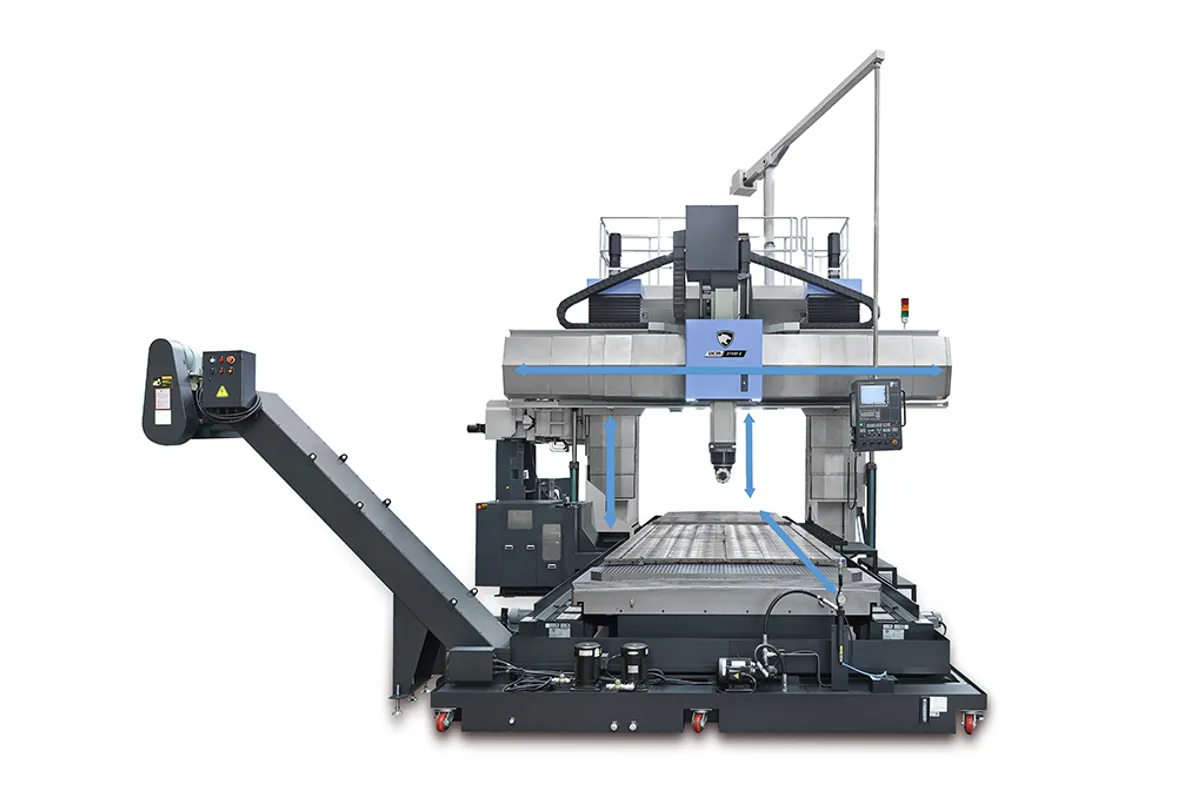

DN Solutions DCM 2740 F II

$800,000 - $1,200,000 Updated 2026-03-19

Key Specifications

Table Size

4,100 x 2,200 mm (161 x 87 in)

x axis travel

4,250 mm (167 in)

y axis travel

3,200 mm (126 in)

z axis travel

700 mm (28 in)

table load capacity

20,000 kg (44,092 lb)

rapid traverse x

16 m/min (630 in/min)

Overview

The DN Solutions DCM 2740 F II is a heavy-duty W-axis crossrail double-column machining center from the DCM series — DN Solutions' flagship platform for large die, mold, and structural machining. With 4,250 x 3,200 x 700 mm of travel and a 4,100 x 2,200 mm table rated for 20,000 kg, this machine handles the biggest mold blocks and heaviest castings in the automotive and energy sectors.

The DCM series differentiates from the DBM line through heavier construction, wider column spacing, and greater table load capacity. At 65,000 kg machine weight, the DCM 2740 F II has nearly double the mass of the DBM 2030, which translates directly to vibration damping and cutting stability. Rapids hit 16 m/min on X, 20 m/min on Y, and 15 m/min on Z — solid numbers for a machine this heavy.

The W-axis crossrail adds independent vertical positioning above the 700 mm Z-stroke. Ram-type spindle options let you configure the machine for different applications. Auto-change head attachments swap between high-speed finishing heads, heavy-duty roughing heads, and angular heads during operation. DN Solutions' DSQ I/II/III functions provide die-spotting, quill-feed, and precision contouring cycles. The 11,200 x 7,730 mm footprint needs a substantial foundation, but for shops producing 10-to-20-ton mold blocks, this machine is sized to handle the work without compromise.

Full Specifications

Parameter	Value
X Axis Travel	4,250 mm (167 in)
Y Axis Travel	3,200 mm (126 in)
Z Axis Travel	700 mm (28 in)
Table Size	4,100 x 2,200 mm (161 x 87 in)
Table Load Capacity	20,000 kg (44,092 lb)
Rapid Traverse X	16 m/min (630 in/min)
Rapid Traverse Y	20 m/min (787 in/min)
Rapid Traverse Z	15 m/min (591 in/min)
Machine Length	11,200 mm (441 in)
Machine Height	6,700 mm (264 in)
Machine Width	7,730 mm (304 in)
Machine Weight	65,000 kg (143,300 lb)
X Axis Travel Distance	4250 mm
Y Axis Travel Distance	3200 mm
Z Axis Travel Distance	700 mm
Metric	IMPERIAL
Capacity	Table to spindle nose
Travels	X-Axis Travel DistanceY-Axis Travel DistanceZ-Axis Travel Distance
Feed Rates	X-Axis Rapid TraverseY-Axis Rapid TraverseZ-Axis Rapid Traverse
Table	Table LengthTable WidthMaximum Workpiece weight
Dimensions	LengthHeightWidthWeight
Favorites	DCM 4280F

Specifications sourced from dn-solutions.com — verified 2026-03-28

Strengths & Limitations

Strengths

20,000 kg table load capacity handles the heaviest mold blocks and castings in the automotive sector
65,000 kg machine mass provides exceptional vibration damping during heavy roughing and interrupted cuts
W-axis crossrail extends depth capability beyond the 700 mm Z-stroke for deep-cavity mold work
Auto-change head system provides roughing, finishing, and angular machining flexibility
20 m/min Y-axis rapids minimize non-cutting time during positioning moves
DSQ I/II/III functions add specialized die-spotting and contouring cycles

Limitations

700 mm Z-travel is shorter than DBM-series 1,100 mm — the W-axis compensates but total reach differs by configuration
65,000 kg weight requires engineered foundation and substantial rigging for installation
11.2-meter machine length demands dedicated floor space in the shop
High capital cost that's justified by consistent large-workpiece volume

Best For

Automotive mold shops producing the largest injection molds for bumpers, dashboards, and body panels Die shops machining heavy progressive and transfer dies weighing up to 20 tons Energy sector manufacturers machining large turbine components and generator housings Aerospace tooling shops producing oversize forming and layup molds Any shop handling 10-to-20-ton workpieces that need W-axis double-column capability

Frequently Asked Questions

01 What does the DN Solutions DCM 2740 F II cost?

New DCM 2740 F II machines typically run $800,000-$1,200,000 depending on spindle configuration, head attachments, and accessories. The DCM series is positioned above the DBM series in both capability and price.

02 What's the difference between the DCM 2740 F II and the DCM 2740 U?

The F II designation is the standard ram-type spindle version categorized as a VMC. The U designation adds a universal head for 5-axis machining capability. Choose the F II for 3-axis work with auto-change attachments; choose the U when you need simultaneous 5-axis contouring.

03 Why is the Z-travel only 700 mm when the DBM-series offers 1,100 mm?

The DCM series uses a different column and crossrail design optimized for heavier table loads and wider Y-travel. The W-axis crossrail movement adds to the effective Z-depth. The total reach from W plus Z varies by configuration but can significantly exceed the 700 mm Z-stroke alone.

04 What control does the DCM 2740 F II use?

The DCM 2740 F II typically ships with a Fanuc 31i-B Plus or equivalent high-end control with NURBS interpolation and high-speed contouring capabilities suited for die/mold finishing work.
