Pinnacle Vertical Machining Centers (VMC)

Pinnacle SV126

Q: How much does the Pinnacle SV126 cost?

The price estimate for the Pinnacle SV126 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-sv126#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

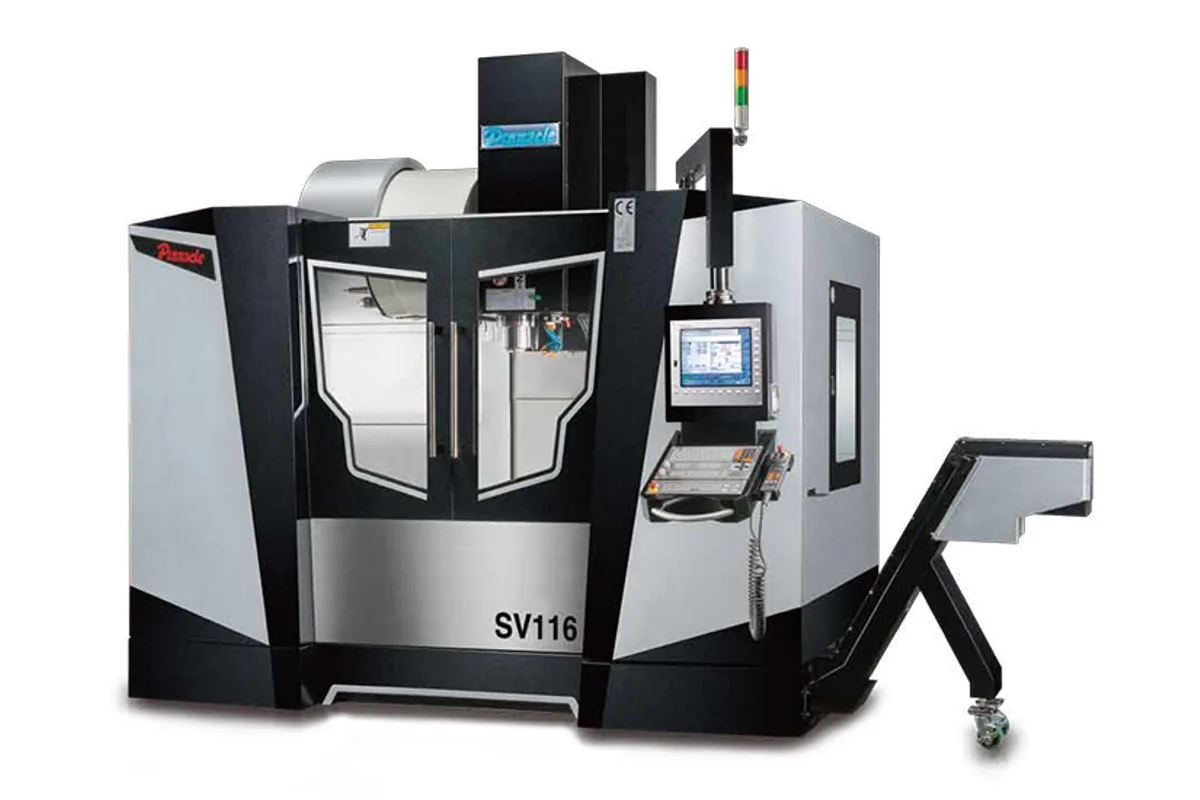

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

Table Size

1,400 x 610 mm (55.1 x 24.0 in)

Spindle Power

ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)

x axis travel

1,300 mm (51.2 in)

y axis travel

610 mm (24.0 in)

z axis travel

610 mm (24.0 in)

How much does the Pinnacle SV126 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle SV126 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle SV126 is the longest of the SV box-way machines, with 1,300 mm (51.2 in) of X travel and a 1,400 x 610 mm (55.1 x 24.0 in) table. Y and Z are 610 mm (24.0 in) each and the table load is 850 kg (1,874 lb).

One detail stands out in the table: X travel is close to the table length, so the spindle reaches almost the whole table surface. On the SV116 the table overhangs the travel by more.

The spindle is chosen by taper. ISO40 comes with 7.5 / 11 kW (10.1 / 14.8 hp), belt speeds of 60 ~ 8,000(10,000/12,000) rpm and direct-drive options of 10,000 / 12,000 / 15,000 rpm. ISO50 comes with 11 / 15 kW (14.8 / 20.1 hp), a spindle bearing bore of Ø80 mm (Ø3.1 in) and a direct-drive figure of 10,000 rpm.

Axes move at 20 / 20 / 20 m/min on ways hardened to over HRC55. The coolant tank holds 300 L, the supply is 20 kVA, and the machine weighs 6,800 kg (14,991 lb) on 3,400 x 2,200 mm (133.9 x 86.6 in) of floor. The disk magazine holds 24 tools with either taper. For more Y on box ways the next step is the QV137, at 710 mm (28.0 in).

Full Specifications

Parameter	Value
Table Size	1,400 x 610 mm (55.1 x 24.0 in)
X Axis Travel	1,300 mm (51.2 in)
Y Axis Travel	610 mm (24.0 in)
Z Axis Travel	610 mm (24.0 in)
Max Table Load	850 kg (1,874 lb)
Distance Spindle Nose to Table	110 ~ 720 mm (4.3 ~ 28.3 in)
T-Slots	18 x 125 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø80 mm (Ø3.1 in)
Spindle Center to Column	675 mm (26.6 in)
Spindle Speed Belt Drive	ISO40: 60 ~ 8,000(10,000/12,000) rpm; ISO50: 40 ~ 8,000 rpm
Spindle Speed Gear Drive	ISO40: L40~1750, H1751~8000 rpm; ISO50: L40~1500, H1501~6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)
Rapid Traverse Xyz	20 / 20 / 20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	24
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 mm (Ø4.1 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 300 mm (11.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirement	20 kVA
Coolant Tank Capacity	300 L
Machine Weight	6,800 kg (14,991 lb)
Machine Height	2,950 mm (116.1 in)
Floor Space	3,400 x 2,200 mm (133.9 x 86.6 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,300 mm (51.2 in) of X travel on a 1,400 x 610 mm (55.1 x 24.0 in) table
ISO50 spindle option with 11 / 15 kW (14.8 / 20.1 hp)
Box ways hardened to over HRC55 on three axes
300 L coolant tank and a 20 kVA supply

Limitations

20 / 20 / 20 m/min rapids lengthen cycles with many positioning moves
850 kg (1,874 lb) table load is unchanged from the shorter SV116
Y travel is limited to 610 mm (24.0 in)

Best For

Long steel parts machined with heavy cuts Plates up to 1,300 mm (51.2 in) that need full-length reach ISO50 face milling on a mid-size machine

Frequently Asked Questions

01 What is the X travel of the Pinnacle SV126?

1,300 mm (51.2 in), with 610 mm (24.0 in) in Y and Z. The table is 1,400 x 610 mm (55.1 x 24.0 in) and the spindle nose travels 110 ~ 720 mm (4.3 ~ 28.3 in) above it.

02 What are the ISO50 tool limits on the SV126?

With the ISO50 spindle the 24-tool magazine accepts tools up to Ø105 mm (Ø4.1 in) in diameter, 300 mm (11.8 in) long and 15 kg (33 lb). With ISO40 the limits are Ø90 mm (Ø3.5 in), 250 mm (9.8 in) and 8 kg (18 lb).

03 How much does the SV126 weigh?

6,800 kg (14,991 lb). Floor space is 3,400 x 2,200 mm (133.9 x 86.6 in) and height 2,950 mm (116.1 in). It needs a 20 kVA supply and air at 6 kg/cm².

04 Should I choose the SV126 or the QV137?

The QV137 has the same 1,300 mm (51.2 in) X travel but 710 mm (28.0 in) of Y, a 1,200 kg (2,646 lb) table load and a weight of 10,000 kg (22,046 lb). The SV126 is the lighter, smaller machine for parts that fit in 610 mm of Y.
