Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV2142

Q: How much does the Pinnacle DV2142 cost?

The price estimate for the Pinnacle DV2142 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv2142#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

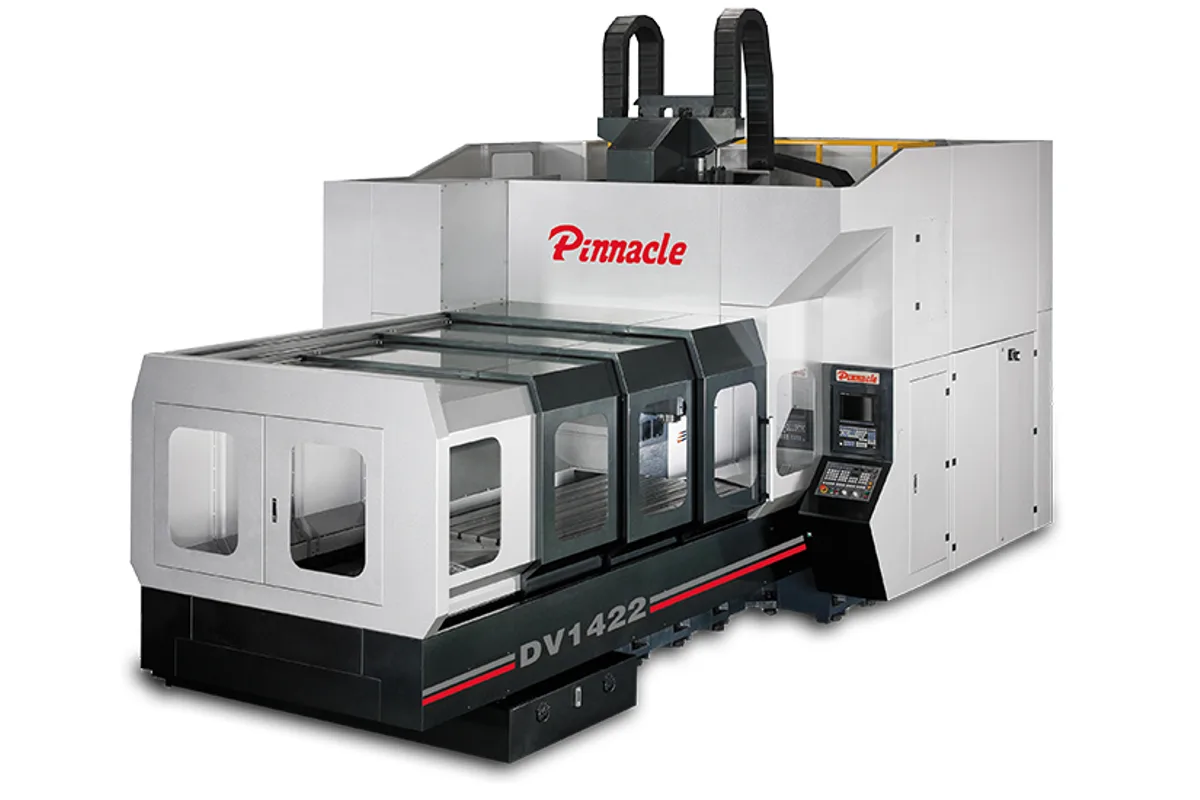

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

4,200 x 1,700 mm (165.4 x 66.9 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

4,200 mm (165.4 in)

y axis travel

2,100 mm (82.7 in)

How much does the Pinnacle DV2142 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV2142 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV2142 is the largest machine in Pinnacle's DV range: 4,200 mm (165.4 in) of X, 2,100 mm (82.7 in) of Y and 900 mm (35.4 in) of Z, at 25,500 kg (56,217 lb).

Every limit of the range meets here. It has the longest X, the widest column spacing at 2,100 mm (82.7 in), the highest table rating at 12,000 kg/m2 and the slowest X rapid at 10 m/min. The table itself is 4,200 x 1,700 mm (165.4 x 66.9 in), the same as on the DV1942, so the gain over that model is 2,100 mm (82.7 in) of Y in place of 1,900 mm (74.8 in).

Z does not grow with the rest. Travel is 900 mm (35.4 in) as on the DV1417, and the spindle nose range is 110~1,010 mm (4.3~39.8 in), so this is a machine for large flat work and low, wide fabrications. Tall housings are limited by the nose height, not by the table.

One spindle specification serves the whole range, and the DV2142 gets it too: ISO50, gear box drive, 15/18.5 kW (20.1/24.8 hp), 8,000 rpm in the table, a Ø100 mm (Ø3.9 in) spindle inner diameter and 2,000 kgf of draw bar force. Pinnacle's feature text gives the gear box a range from 10 to 6,000 rpm. Floor space is 10,310 x 5,300 mm (405.9 x 208.7 in).

Full Specifications

Parameter	Value
X Axis Travel	4,200 mm (165.4 in)
Y Axis Travel	2,100 mm (82.7 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	110~1,010 mm (4.3~39.8 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	2,100 mm (82.7 in)
Table Size	4,200 x 1,700 mm (165.4 x 66.9 in)
T-Slots	22 x 150 x 11 (W D x N mm)
Max Table Load	12,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	2,000 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	10/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	25,500 kg (56,217 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	10,310 x 5,300 mm (405.9 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Largest envelope in the range: 4,200 mm (165.4 in) of X and 2,100 mm (82.7 in) of Y
12,000 kg/m2 table rating on a 4,200 x 1,700 mm (165.4 x 66.9 in) table
2,100 mm (82.7 in) between the columns
25,500 kg (56,217 lb) cast iron structure on roller type linear ways

Limitations

Z travel is 900 mm (35.4 in), no more than on the smallest DV1417
X rapid is 10 m/min across 4,200 mm (165.4 in)
15/18.5 kW (20.1/24.8 hp) is modest spindle power for a machine of 25,500 kg (56,217 lb)
Needs 10,310 x 5,300 mm (405.9 x 208.7 in) of floor and 4,500 mm (177.2 in) of height

Best For

The largest plates, frames and bases, up to 4,200 x 1,700 mm (165.4 x 66.9 in) on the table Wide, low fabrications needing 2,100 mm (82.7 in) of Y One-off heavy parts where capacity matters more than cycle time

Frequently Asked Questions

01 How big is the Pinnacle DV2142?

Travels are 4,200 mm (165.4 in), 2,100 mm (82.7 in) and 900 mm (35.4 in) in X, Y and Z. The table is 4,200 x 1,700 mm (165.4 x 66.9 in). The machine weighs 25,500 kg (56,217 lb) and occupies 10,310 x 5,300 mm (405.9 x 208.7 in).

02 What is the difference between the DV2142 and the DV1942?

Y travel and column spacing: 2,100 mm (82.7 in) on the DV2142 and 1,900 mm (74.8 in) on the DV1942. Table size, table rating, rapids and spindle are listed the same. The DV2142 is 25,500 kg (56,217 lb); the DV1942 is 25,000 kg (55,115 lb).

03 What spindle speed does the DV2142 have?

The specification table lists 8,000 rpm under gear drive. The feature text on the page describes a wide spindle speed range from 10 to 6,000 rpm through the gear box, so confirm the top speed with Pinnacle. The motor is 15/18.5 kW (20.1/24.8 hp) and the taper is ISO50.

04 How much table load can the DV2142 carry?

The table is rated at 12,000 kg/m2 and has T-slots listed as 22 x 150 x 11. Pinnacle describes an extra heavy base that gives the table complete support. A total load in kilograms is not printed, so ask for it.
