Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV1932

Q: How much does the Pinnacle DV1932 cost?

The price estimate for the Pinnacle DV1932 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1932#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

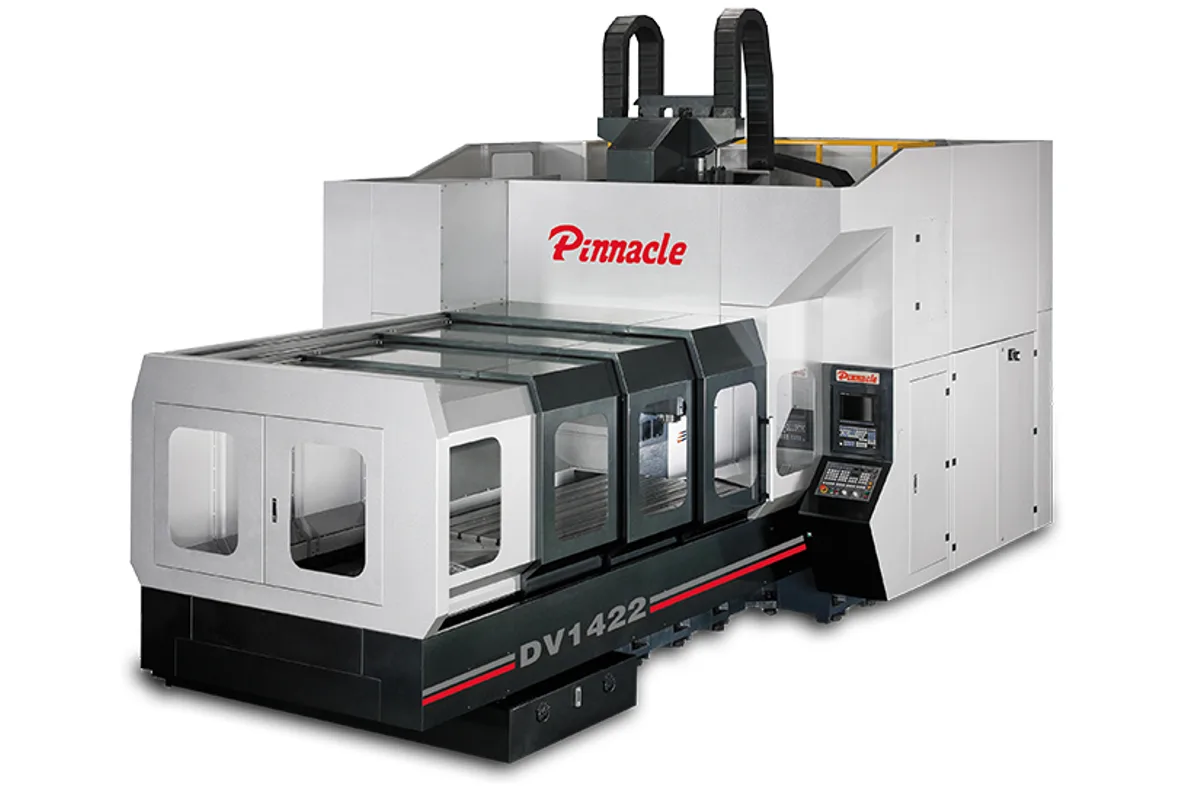

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

3,200 x 1,700 mm (126.0 x 66.9 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

3,200 mm (126.0 in)

y axis travel

1,900 mm (74.8 in)

How much does the Pinnacle DV1932 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1932 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV1932 pairs 3,200 mm (126.0 in) of X with 1,900 mm (74.8 in) of Y and a 3,200 x 1,700 mm (126.0 x 66.9 in) table, a table size it shares only with the DV2132.

This is a machine for removing a lot of metal from big parts. Pinnacle drives the ISO50 spindle through a gear box, which it describes as excellent for heavy cutting, and holds the tool with 2,000 kgf. The spindle head is a box-type construction carried on linear ways laid out at its sides. Under the part, the table is rated at 10,000 kg/m2 and has eleven T-slots, listed as 22 x 150 x 11.

Speed is not its strong point. The table gives 8,000 rpm and a 15/18.5 kW (20.1/24.8 hp) motor, and rapids are 12/16/20 m/min on X, Y and Z. On long finishing passes that hardly matters; on parts with many scattered features the positioning time adds up.

Tools stay out of the chips: the chain magazine is mounted apart from the cutting area behind a protection door, with random bi-directional selection. The machine weighs 23,500 kg (51,808 lb) and needs 8,130 x 5,300 mm (320.1 x 208.7 in) of floor, 50 kVA and air at 6 kg/cm². Its spindle nose works between 110~1,010 mm (4.3~39.8 in) from the table.

Full Specifications

Parameter	Value
X Axis Travel	3,200 mm (126.0 in)
Y Axis Travel	1,900 mm (74.8 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	110~1,010 mm (4.3~39.8 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,900 mm (74.8 in)
Table Size	3,200 x 1,700 mm (126.0 x 66.9 in)
T-Slots	22 x 150 x 11 (W D x N mm )
Max Table Load	10,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	2,000 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	12/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	23,500 kg (51,808 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	8,130 x 5,300 mm (320.1 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

3,200 x 1,700 mm (126.0 x 66.9 in) table rated at 10,000 kg/m2
2,000 kgf draw bar and gear box drive for heavy ISO50 cutting
1,900 mm (74.8 in) of Y travel with 900 mm (35.4 in) of Z
Tool magazine sits outside the cutting area behind a protection door

Limitations

Rapids of 12/16/20 m/min, slowest on the long X axis
23,500 kg (51,808 lb) and 8,130 x 5,300 mm (320.1 x 208.7 in) of floor
Column spacing is listed as 1,900 mm (74.8 in), the same as the Y travel
Top speed in the table is 8,000 rpm

Best For

Large die shoes and bolsters up to 3,200 x 1,700 mm (126.0 x 66.9 in) Roughing steel castings with large ISO50 cutters Wide plates that need 1,900 mm (74.8 in) of Y

Frequently Asked Questions

01 What size table does the Pinnacle DV1932 have?

3,200 x 1,700 mm (126.0 x 66.9 in), with T-slots listed as 22 x 150 x 11 and a load rating of 10,000 kg/m2. X travel is 3,200 mm (126.0 in) and Y travel is 1,900 mm (74.8 in), so the spindle covers the table with margin in Y.

02 Why does the DV1932 use a gear box?

Pinnacle states that running the spindle through a gear box makes the machine excellent for heavy cutting, and that the wide speed range lets it do heavy cutting and fine finishing. All gears and bearings in the gear box are oil-bath lubricated. The motor is 15/18.5 kW (20.1/24.8 hp).

03 How does the DV1932 differ from the DV1942?

The DV1942 is longer: 4,200 mm (165.4 in) of X, a 4,200 x 1,700 mm (165.4 x 66.9 in) table rated at 12,000 kg/m2 and 10/16/20 m/min rapids. The DV1932 has 3,200 mm (126.0 in) of X, 12/16/20 m/min rapids and weighs 23,500 kg (51,808 lb) against 25,000 kg (55,115 lb) for the DV1942.

04 Is the tool magazine protected from chips on the DV1932?

Yes. Pinnacle mounts the magazine separately from the cutting area and adds a protection door to prevent contamination of the tools by chips or coolant. The magazine is cam driven, tool selection is bi-directional and random, and the table lists a capacity of 24/32.
