Tongtai Vertical Machining Centers (VMC)

Tongtai TMV-1050QII

Specs verified 2026-10-03 · tongtaimachinetool.com Updated 2026-10-03

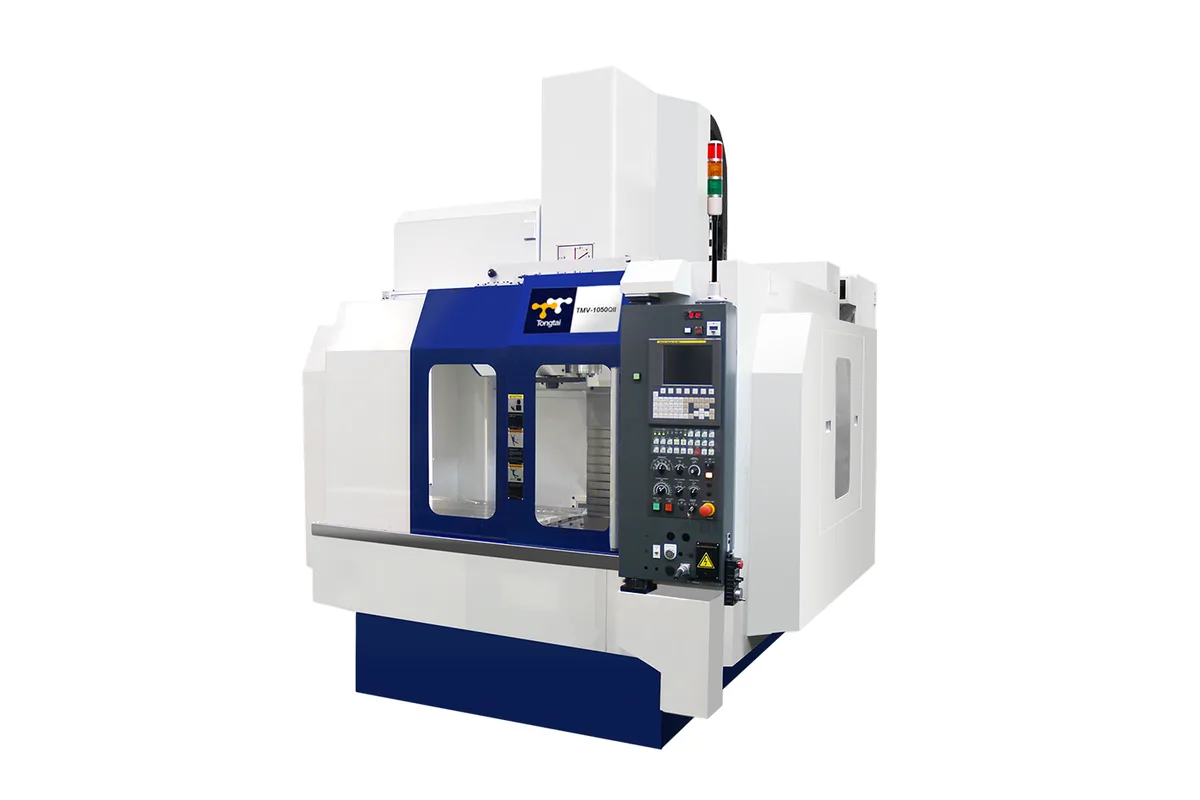

Image: tongtaimachinetool.com, Tongtai

Key Specifications

Max Spindle

Belt type: 10,000 (opt. 8,000) rpm; direct-drive type: opt. 10,000/12,000/15,000 rpm

Spindle Taper

7/24 Taper No.40

Tool Capacity

24 (opt. 30) pcs

Table Size

1,100 x 600 mm (43.3 x 23.6 in)

x axis travel

1,050 mm (41.3 in)

y axis travel

600 mm (23.6 in)

How much does the Tongtai TMV-1050QII cost?

Price estimate

Uncertain

We do not have a price for the Tongtai TMV-1050QII that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

Long parts and rows of fixtures are the reason to choose the Tongtai TMV-1050QII. It has 1,050 mm (41.3 in) of X travel over a 1,100 x 600 mm (43.3 x 23.6 in) table, with 600 mm (23.6 in) of Y and 530 mm (20.9 in) of Z, in a 40-taper vertical machining center.

Compared with the TMV-850QII, whose table is 950 x 600 mm (37.4 x 23.6 in), length is what grows. The 600 mm table depth is shared, and the table load is 800 kg (1,764 lb) on both machines. So the TMV-1050QII is for workpieces that are longer, not heavier: rails, plates and bars, or an extra vise in the row. Machine weight rises from 5,500 kg (12,125 lb) on the TMV-850QII to 5,900 kg (13,007 lb) here.

Rapids are 48 m/min (1,890 ipm) on X, Y and Z. A spindle has to be picked from five listed versions. Belt type is standard at 10,000 rpm, or 8,000 rpm as an option. Direct-drive type is optional at 10,000, 12,000 or 15,000 rpm. No power or torque figure appears in the table for any of them, which leaves a gap for the quotation to fill.

The magazine takes 24 tools, with 30 optional, and each tool can weigh up to 7 kg (15 lb). The listed controls, each with a 10.4 in display, are the Fanuc 0i-MF Plus, Fanuc 31i-MB and Mitsubishi M80VA.

Overall size is 2,500 x 3,518 x 2,932 mm (98.4 x 138.5 x 115.4 in) in width, depth and height. Allow for the 2,500 mm width when planning operator access and chip removal at both ends.

Full Specifications

Parameter	Value
X Axis Travel	1,050 mm (41.3 in)
Y Axis Travel	600 mm (23.6 in)
Z Axis Travel	530 mm (20.9 in)
Rapid Traverse Xyz	48 / 48 / 48 m/min (1,890 / 1,890 / 1,890 ipm)
Spindle Taper	7/24 Taper No.40
Max Spindle Speed	Belt type: 10,000 (opt. 8,000) rpm; direct-drive type: opt. 10,000/12,000/15,000 rpm
Table Size	1,100 x 600 mm (43.3 x 23.6 in)
Max Table Load	800 kg (1,764 lb)
Tool Capacity	24 (opt. 30) pcs
Max Tool Weight	7 kg (15 lb)
Machine Dimensions	2,500 x 3,518 x 2,932 mm (98.4 x 138.5 x 115.4 in), W x D x H
Machine Weight	5,900 kg (13,007 lb)
CNC Control	Fanuc 0i-MF Plus, Fanuc 31i-MB or Mitsubishi M80VA (10.4 in display)

Specifications sourced from tongtaimachinetool.com — verified 2026-10-03

Strengths & Limitations

Strengths

1,050 mm (41.3 in) of X travel on a 1,100 x 600 mm (43.3 x 23.6 in) table
Table load of 800 kg (1,764 lb)
Rapid traverse of 48 m/min (1,890 ipm) in every linear axis
Direct-drive spindle options reach 15,000 rpm
Longer table than the TMV-850QII for a weight increase from 5,500 kg (12,125 lb) to 5,900 kg (13,007 lb)

Limitations

Table load is the same 800 kg (1,764 lb) as the shorter TMV-850QII, so the extra table length carries no extra weight
Y travel stays at 600 mm (23.6 in) and Z at 530 mm (20.9 in); only X is longer
Spindle power and torque are not stated in the table
A 7 kg (15 lb) tool weight limit and a 24-tool standard magazine

Best For

Long, narrow parts up to 1,050 mm (41.3 in) in X Rows of vises or fixtures along the 1,100 mm (43.3 in) table Plate and rail work under 800 kg (1,764 lb) High-speed work with the 12,000 or 15,000 rpm direct-drive spindle options

Frequently Asked Questions

01 Is the TMV-1050QII just a longer TMV-850QII?

On the listed figures, yes. The TMV-1050QII has a 1,100 x 600 mm (43.3 x 23.6 in) table against 950 x 600 mm (37.4 x 23.6 in) on the TMV-850QII, and weighs 5,900 kg (13,007 lb) against 5,500 kg (12,125 lb). The spindle versions, the 24-tool magazine, the three controls and the 800 kg (1,764 lb) table load are listed identically for both.

02 Which spindle should I choose on the TMV-1050QII?

It depends on material and tool size. The standard belt-type spindle runs at 10,000 rpm, with an 8,000 rpm option. Direct-drive spindles are optional at 10,000, 12,000 or 15,000 rpm and make sense where small cutters or aluminium call for speed. Since the table states no power or torque, compare the curves from Tongtai before deciding.

03 What are the footprint and weight of the TMV-1050QII?

2,500 x 3,518 x 2,932 mm (98.4 x 138.5 x 115.4 in), width by depth by height, and 5,900 kg (13,007 lb). Check the 2,500 mm width against aisle and door clearances, and leave room at both ends of the table for loading long stock.

04 What tool capacity does the TMV-1050QII have?

The standard magazine has 24 tools and a 30-tool magazine is optional. Maximum tool weight is 7 kg (15 lb). The spindle taper is 7/24 No.40. Maximum tool diameter and length are not in the table and should be confirmed for large cutters.

05 When would the TMV-1350A be a better fit than the TMV-1050QII?

When the work is heavy, slow-speed cutting on big parts. The TMV-1350A has a No.50 taper spindle at 3,500 rpm, a 1,500 x 750 mm (59.1 x 29.5 in) table with a 1,300 kg (2,866 lb) load and weighs 13,000 kg (28,660 lb). The TMV-1050QII is the faster machine, with spindle options up to 15,000 rpm and 48 m/min (1,890 ipm) rapids.
