Pinnacle DV1442

Q: How much does the Pinnacle DV1442 cost?

The price estimate for the Pinnacle DV1442 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1442#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

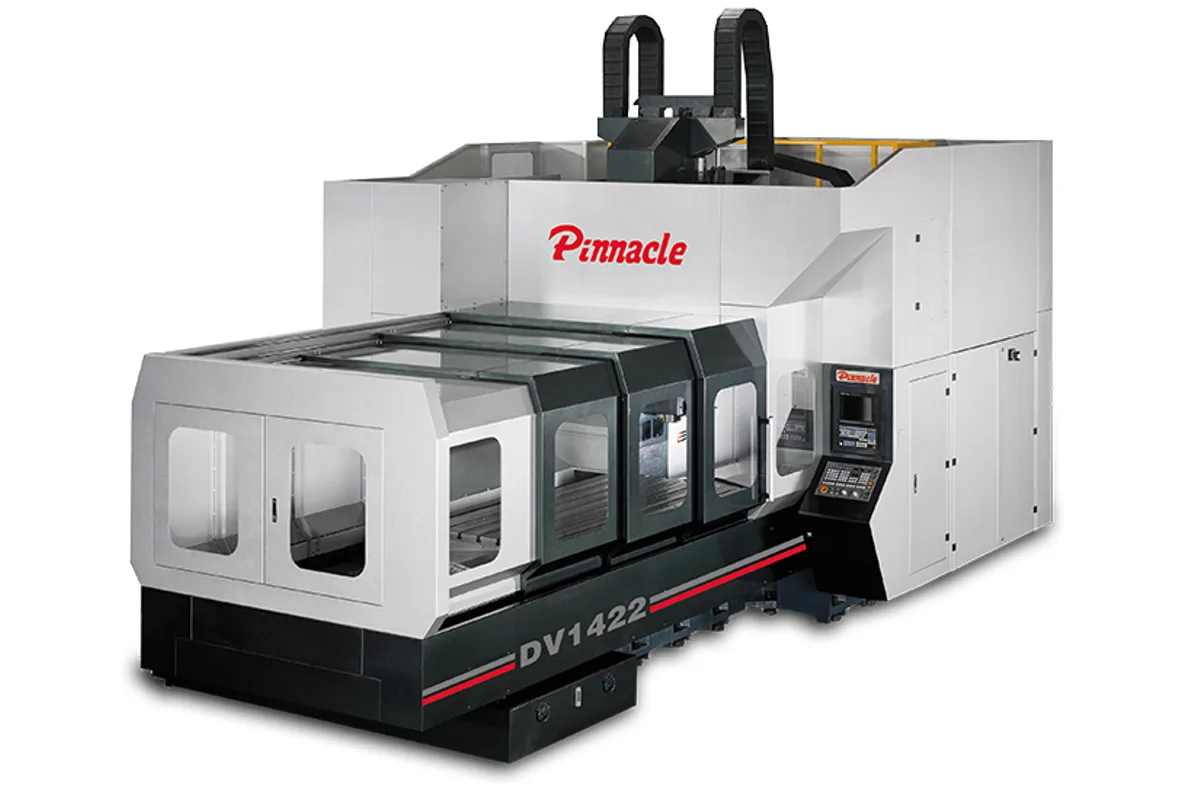

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

4,200 x 1,200 mm (165.4 x 47.2 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

4,200 mm (165.4 in)

y axis travel

1,400 mm (55.1 in)

How much does the Pinnacle DV1442 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1442 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

At 4,200 mm (165.4 in) of X travel, the Pinnacle DV1442 is the longest machine on the narrow DV bridge, with a 4,200 x 1,200 mm (165.4 x 47.2 in) table. Y remains 1,400 mm (55.1 in) and Z 900 mm (35.4 in). The table is three and a half times as long as it is wide, which says what the machine is for: beams, rails, long weldments and rows of fixtures.

Length slows the long axis. X rapid is 12 m/min, against 16 m/min on the DV1432 and 20 m/min on Y and Z of this machine. Cutting feed is unchanged at 10,000 mm/min, so the difference shows in positioning moves between features at opposite ends of the table, not in the cut.

The installation is the larger commitment. Floor space is 10,310 x 4,150 mm (405.9 x 163.4 in), the machine stands 4,500 mm (177.2 in) tall and weighs 18,000 kg (39,683 lb). Supply is 50 kVA with air at 6 kg/cm², and the coolant tank holds 900 L. Two screw type chip conveyors run at the right and left sides of the base and deliver to a chip conveyor that takes the chips out of the machine.

Above the table everything matches the shorter models: a gear-driven ISO50 spindle, 8,000 rpm in the table, 15/18.5 kW (20.1/24.8 hp), a 1,800 kgf draw bar, and roller type linear ways on all three axes. The table is rated at 8,000 kg/m2.

Full Specifications

Parameter	Value
X Axis Travel	4,200 mm (165.4 in)
Y Axis Travel	1,400 mm (55.1 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	110~1,010 mm (4.3~39.8 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,400 mm (55.1 in)
Table Size	4,200 x 1,200 mm (165.4 x 47.2 in)
T-Slots	22 x 150 x7 (W D x N mm )
Max Table Load	8,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	1,800 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	12/20/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK / Chain
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125(Ø160/ Ø250) mm (Ø4.3/ Ø4.9(Ø6.3/ Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	18,000 kg (39,683 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	10,310 x 4,150 mm (405.9 x 163.4 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

4,200 mm (165.4 in) of X travel on a 4,200 x 1,200 mm (165.4 x 47.2 in) table
Y and Z rapids stay at 20 m/min
Two screw type chip conveyors at the right and left of the base feed a chip conveyor
Same 15/18.5 kW (20.1/24.8 hp) gear-driven ISO50 spindle as the shorter DV1422

Limitations

X rapid is 12 m/min, the slowest of the four models with 1,400 mm (55.1 in) of Y
Needs 10,310 x 4,150 mm (405.9 x 163.4 in) of floor
Only 1,400 mm (55.1 in) between the columns; wider parts need the DV1742
Table rating is 8,000 kg/m2; the wider DV1742 is listed at 12,000 kg/m2

Best For

Beams, rails and long weldments up to 4,200 mm (165.4 in) Rows of fixtures machined in one loading along the bed Long, narrow plates within 1,200 mm (47.2 in) of table width

Frequently Asked Questions

01 How long is the Pinnacle DV1442?

The table is 4,200 x 1,200 mm (165.4 x 47.2 in) and X travel is 4,200 mm (165.4 in). The floor space needed is 10,310 x 4,150 mm (405.9 x 163.4 in), and machine height is 4,500 mm (177.2 in).

02 How fast are the rapids on the DV1442?

12/20/20 m/min on X, Y and Z. The shorter DV1432 is listed at 16/20/20 m/min and the DV1417 at 20/20/20 m/min, so X rapid falls as the table gets longer. Cutting feed is 10,000 mm/min.

03 How are chips removed on the DV1442?

Pinnacle fits two screw type chip conveyors, one at each side of the base. During cutting these augers deliver the chips to a chip conveyor that carries them outside the machine. The coolant tank holds 900 L, and air blast through the spindle is a standard accessory.

04 Is the DV1442 wide enough for my part?

The distance between the columns is 1,400 mm (55.1 in), equal to the Y travel, and the table is 1,200 mm (47.2 in) wide. For wider work the DV1742 has the same 4,200 mm (165.4 in) X travel with 1,700 mm (66.9 in) of Y and columns 1,900 mm (74.8 in) apart.
