Pinnacle Vertical Machining Centers (VMC)

Pinnacle SV116

Q: How much does the Pinnacle SV116 cost?

The price estimate for the Pinnacle SV116 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-sv116#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

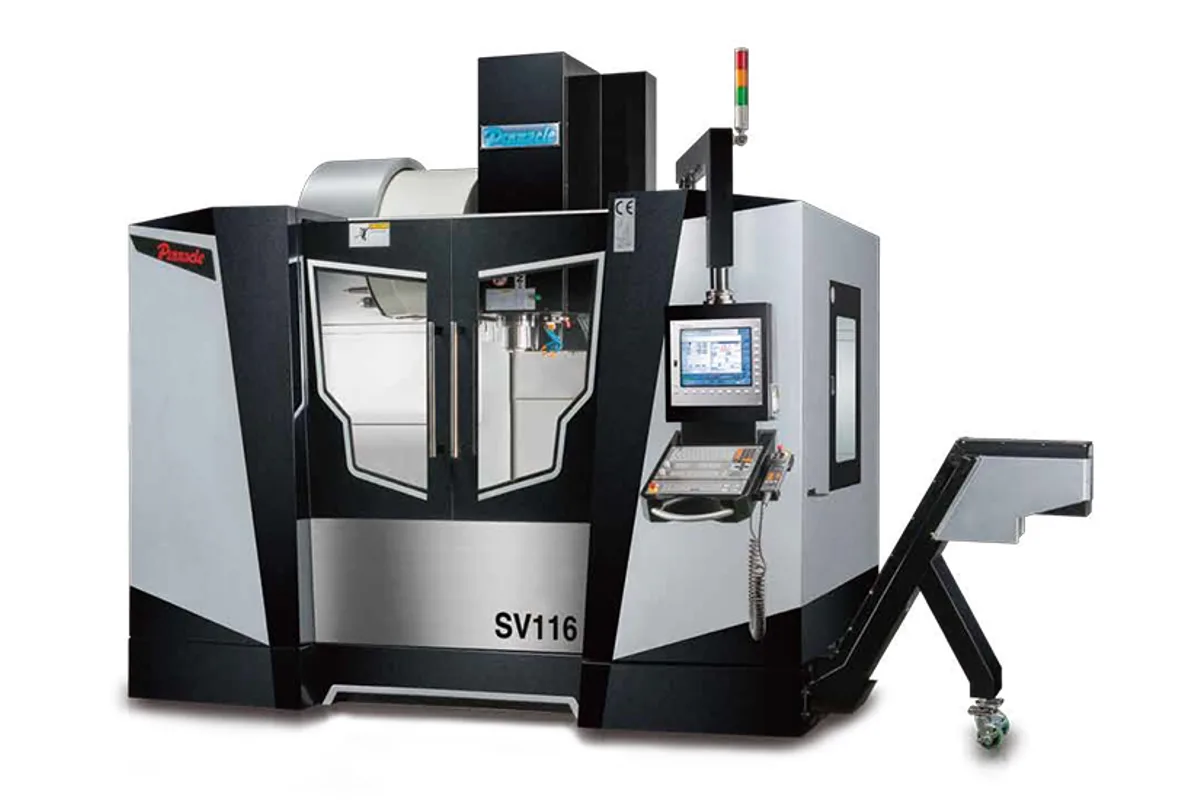

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

Table Size

1,300 x 610 mm (51.2 x 24.0 in)

Spindle Power

ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)

x axis travel

1,140 mm (44.9 in)

y axis travel

610 mm (24.0 in)

z axis travel

610 mm (24.0 in)

How much does the Pinnacle SV116 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle SV116 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle SV116 is a box-way vertical machining center with 1,140 mm (44.9 in) of X and 610 mm (24.0 in) of Y and Z, offered with an ISO40 or an ISO50 spindle. The table is 1,300 x 610 mm (51.2 x 24.0 in) and carries 850 kg (1,874 lb).

On sliding ways the ISO50 option makes particular sense. That column of the table lists an 11 / 15 kW (14.8 / 20.1 hp) motor, a 2,000 kgf draw bar, a 40 ~ 8,000 rpm belt drive and a gear head with L40~1500, H1501~6000 rpm ranges. The ISO40 column lists 7.5 / 11 kW (10.1 / 14.8 hp) and gear ranges of L40~1750, H1751~8000 rpm.

Every axis traverses at 20 m/min. That is slow next to a linear-guide machine, and deliberate: the ways are hardened to over HRC55 and the screws are 40mm in diameter. Parts with long air moves between features will take longer here; parts that need a rigid, damped cut will not notice.

Tool limits depend on the taper, Ø90 mm (Ø3.5 in) and 8 kg (18 lb) for ISO40, Ø105 mm (Ø4.1 in) and 15 kg (33 lb) for ISO50, with 24 pockets either way. The machine weighs 6,500 kg (14,330 lb) and stands on 3,100 x 2,200 mm (122.0 x 86.6 in).

Full Specifications

Parameter	Value
Table Size	1,300 x 610 mm (51.2 x 24.0 in)
X Axis Travel	1,140 mm (44.9 in)
Y Axis Travel	610 mm (24.0 in)
Z Axis Travel	610 mm (24.0 in)
Max Table Load	850 kg (1,874 lb)
Distance Spindle Nose to Table	110 ~ 720 mm (4.3 ~ 28.3 in)
T-Slots	18 x 125 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø80 mm (Ø3.1 in)
Spindle Center to Column	675 mm (26.6 in)
Spindle Speed Belt Drive	ISO40: 60 ~ 8,000(10,000/12,000) rpm; ISO50: 40 ~ 8,000 rpm
Spindle Speed Gear Drive	ISO40: L40~1750, H1751~8000 rpm; ISO50: L40~1500, H1501~6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)
Rapid Traverse Xyz	20 / 20 / 20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	24
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 mm (Ø4.1 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 300 mm (11.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirement	20 kVA
Coolant Tank Capacity	300 L
Machine Weight	6,500 kg (14,330 lb)
Machine Height	2,950 mm (116.1 in)
Floor Space	3,100 x 2,200 mm (122.0 x 86.6 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

ISO50 spindle option with 11 / 15 kW (14.8 / 20.1 hp) and a 2,000 kgf draw bar
Hardened box ways and 40mm ball screws on three axes
Gear heads listed for both tapers, with a low range for torque
850 kg (1,874 lb) table load in a 6,500 kg (14,330 lb) machine

Limitations

Rapid traverse is 20 / 20 / 20 m/min
Only 24 tool pockets with either taper
Z travel of 610 mm (24.0 in) limits tall workpieces with long ISO50 tools

Best For

Roughing steel and cast iron with ISO50 cutters Die blocks and fixtures up to 850 kg (1,874 lb) Work where damping matters more than traverse speed

Frequently Asked Questions

01 Does the Pinnacle SV116 come with ISO50?

It can. Pinnacle's table has an ISO40 and an ISO50 column for the spindle and the tool changer. The ISO50 spindle has an 11 / 15 kW (14.8 / 20.1 hp) motor and takes tools up to Ø105 mm (Ø4.1 in), 300 mm (11.8 in) and 15 kg (33 lb).

02 What are the rapid rates of the SV116?

20 / 20 / 20 m/min in X, Y and Z, with a cutting feed rate of 10,000 mm/min. The linear-way LV116 with the same travels is listed at 30 / 30 / 24 m/min, which shows what the box ways trade away.

03 What gear ranges does the SV116 spindle have?

With ISO40 the gear head is listed as L40~1750, H1751~8000 rpm. With ISO50 it is L40~1500, H1501~6000 rpm. Belt drive is 60 ~ 8,000(10,000/12,000) rpm for ISO40 and 40 ~ 8,000 rpm for ISO50.

04 How does the SV116 differ from the SV126?

The SV126 has 1,300 mm (51.2 in) of X travel and a 1,400 x 610 mm (55.1 x 24.0 in) table, and weighs 6,800 kg (14,991 lb). Y, Z, table load, spindle options and rapids are the same on both.
