DN Solutions DBM 3080

Est. $1,000,000 - $1,500,000 Specs verified 2026-10-02 · dn-solutions.com Updated 2026-10-02

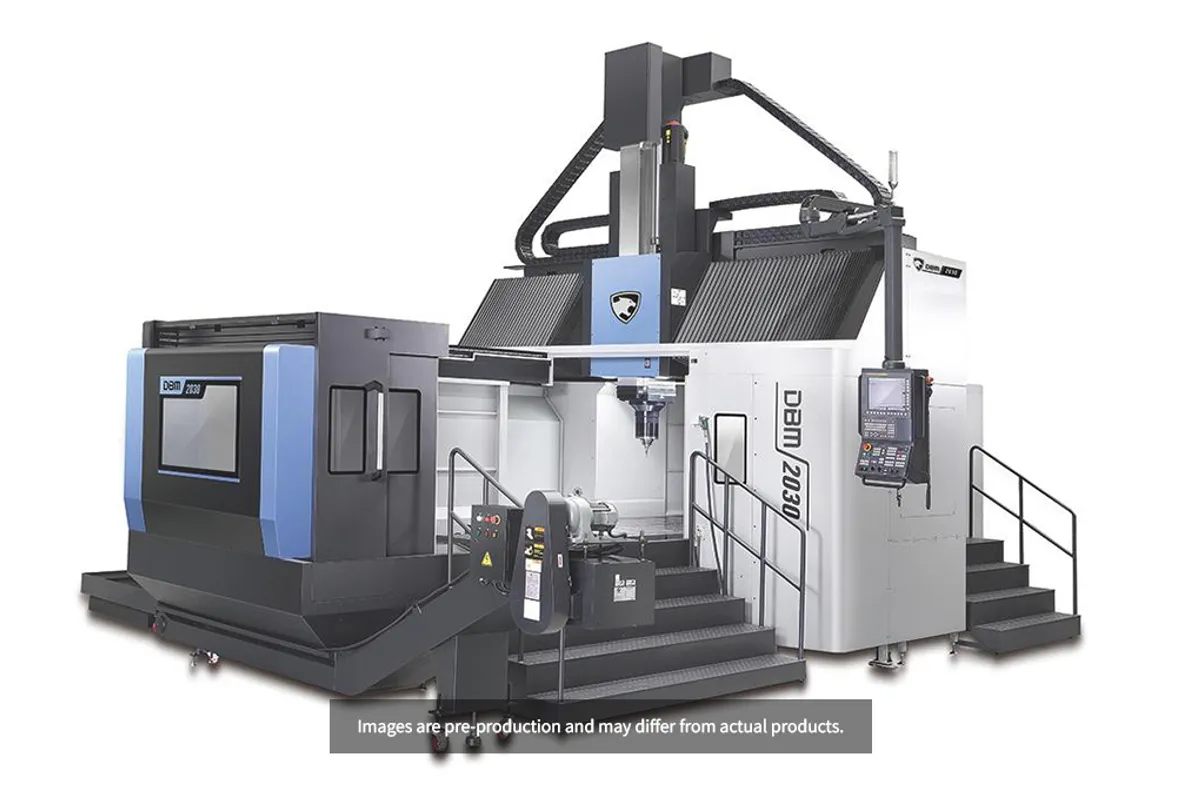

Image: dn-solutions.com, DN Solutions

Key Specifications

X Travel

8,250 mm (325 in)

Y Travel

3,500 mm (138 in)

Z Travel

1,100 mm (43 in)

Tool Capacity

Table Size

2,500 × 8,000 mm (98 × 315 in)

spindle nose to table

1,300 mm (51 in)

How much does the DN Solutions DBM 3080 cost?

Estimated price range

Est.$1,000,000 - $1,500,000

Our best estimate for a vertical machining centers (vmc) in this class — not a quote from DN Solutions. Configuration moves it a long way.

Overview

The DN Solutions DBM 3080 is the long member of DN's multi-purpose double-column series, built around a 2,500 × 8,000 mm (98 × 315 in) table. X travel is 8,250 mm (325 in), Y is 3,500 mm (138 in) and Z is 1,100 mm (43 in). The spindle is listed at 1,009 N·m (744 ft-lb) and the magazine holds 40 tools.

Eight metres of table changes how the machine gets used. One long workpiece such as a machine bed, a press frame or a structural beam can be cut end to end in a single clamping, because X travel is longer than the table. The same length will also take two shorter jobs clamped end to end and run in one cycle. Y travel of 3,500 mm (138 in) over a 2,500 mm (98 in) table leaves the head free to pass beyond both edges, which the auto-change attachments listed for the series need for side faces.

DN makes a heavier machine with identical X travel, the DCM 2780 F II, and the two are easy to confuse on length alone. The DCM 2780 F II has 3,200 mm (126 in) of Y, 700 mm (28 in) of Z and an 8,100 × 2,200 mm (319 × 87 in) table rated at 40,000 kg (88,185 lb). The DBM 3080 offers more Y, a wider table and more Z stroke, with 1,300 mm (51 in) from spindle nose to table.

Several figures a buyer needs are not in DN's table for this model: spindle speed and power, rapid traverse, table load and machine weight. On a machine this long the rapid rate decides how much time is lost between features at opposite ends, so ask for it early.

Full Specifications

Parameter	Value
Spindle Nose to Table	1,300 mm (51 in)
X-Axis Travel	8,250 mm (325 in)
Y-Axis Travel	3,500 mm (138 in)
Z-Axis Travel	1,100 mm (43 in)
Spindle Torque	1,009 N·m (744 ft-lb)
Table Size	2,500 × 8,000 mm (98 × 315 in)
Tool Capacity	40

Specifications sourced from dn-solutions.com — verified 2026-10-02

Strengths & Limitations

Strengths

2,500 × 8,000 mm (98 × 315 in) table with 8,250 mm (325 in) of X travel, so the whole table length can be machined
3,500 mm (138 in) of Y travel, the widest of the DBM 2030, DBM 2550 and DBM 3080 group
1,009 N·m (744 ft-lb) of spindle torque for heavy milling and boring
1,100 mm (43 in) of Z, against 700 mm (28 in) on the DCM 2780 F II with the same X travel
Auto-change attachments and high-precision or high-speed head attachments are listed for the series

Limitations

No table load is published, a serious gap for a table 8,000 mm (315 in) long
Spindle speed and power are not stated for this model
Rapid traverse is not listed, so non-cutting time over 8,250 mm (325 in) cannot be estimated from the table
A 40-tool magazine may be tight when two setups share the table

Best For

Machine beds, frames and beams up to 8,000 mm (315 in) long Two shorter setups clamped end to end along the table Heavy milling and boring that draws on 1,009 N·m (744 ft-lb) Wide plates that need up to 3,500 mm (138 in) of Y travel

Frequently Asked Questions

01 How long a part can the DBM 3080 machine?

The table is 2,500 × 8,000 mm (98 × 315 in) and X travel is 8,250 mm (325 in), so the spindle covers the full table length. Y travel is 3,500 mm (138 in) and Z is 1,100 mm (43 in), with the spindle nose up to 1,300 mm (51 in) above the table.

02 What is the difference between the DBM 3080 and the DCM 2780 F II?

Both have 8,250 mm (325 in) of X travel. The DBM 3080 has 3,500 mm (138 in) of Y, 1,100 mm (43 in) of Z and a 2,500 × 8,000 mm (98 × 315 in) table. The DCM 2780 F II has 3,200 mm (126 in) of Y, 700 mm (28 in) of Z and an 8,100 × 2,200 mm (319 × 87 in) table rated at 40,000 kg (88,185 lb), and it weighs 77,000 kg (169,756 lb). DN publishes no load or weight for the DBM 3080.

03 What spindle does the DBM 3080 have?

DN's table gives one spindle figure for this model, a torque of 1,009 N·m (744 ft-lb). Maximum speed, power and taper are not stated. The DBM 2550, which lists the same torque, is given a maximum of 6,000 rpm, but that figure belongs to the DBM 2550 and should not be assumed here.

04 Which functions does DN list for the DBM 3080 series?

The series description names auto-change attachments, high-precision and high-speed head attachments, DSQ I/II/III functions under mold machining performance, easy pattern cycles, work load counter control and automatic feed control. It does not separate standard items from options, so the quotation should.
