DMG Mori NVX 5080

$165,000 - $225,000 Updated 2026-03-13

Key Specifications

X Travel

800 mm (31.5 in)

Y Travel

530 mm (20.9 in)

Z Travel

510 mm (20.1 in)

Max Spindle

12,000 RPM (BT 40); 10,000 RPM (BT 50)

Spindle Taper

BT 40 / BT 50

Tool Capacity

30 (arm-type ATC); 40, 60 optional

Overview

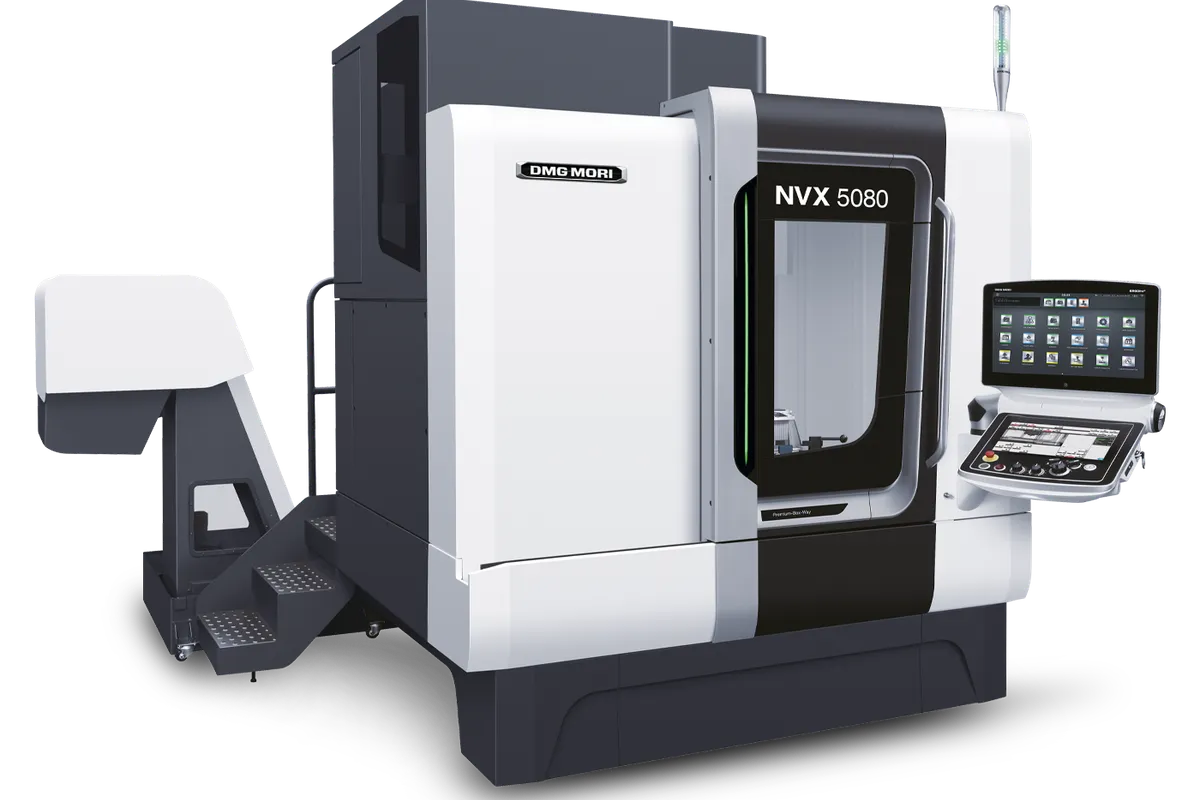

The DMG Mori NVX 5080 is a box-way vertical machining center built for shops that prioritize rigidity and damping over raw speed. With 800 x 530 x 510 mm (31.5 x 20.9 x 20.1 in) of travel, it fits the same work envelope as many roller-guide VMCs but uses hardened and ground box ways on all three axes to deliver superior vibration damping during heavy interrupted cuts.

The standard spindle is a BT 40 turning 12,000 RPM with 11 kW (14.7 hp) continuous. A BT 50 variant is available with 10,000 RPM and 22 kW (29.5 hp) for shops doing serious roughing in steel, cast iron, and titanium. Both versions use DMG Mori integral spindle design with ceramic hybrid bearings for thermal stability.

Rapid traverse is 36 m/min (1,417 ipm) — slower than roller-guide competitors, but that is the tradeoff for box-way rigidity. The 30-tool arm-type ATC handles tool changes in 1.8 seconds chip-to-chip, and the 1,270 x 560 mm (50.0 x 22.0 in) table supports 700 kg (1,543 lb).

DMG Mori thermal compensation system monitors displacement at multiple points and adjusts in real time. Positioning accuracy is ±0.003 mm, making the NVX 5080 one of the most accurate VMCs in its price class. The machine runs on a FANUC 0i-MF Plus control with CELOS X interface.

New NVX 5080 machines price between $165,000 and $225,000. The NVX 5080 competes with the Okuma GENOS M560-V, Mitsui Seiki Vertex 55X, and other box-way VMCs aimed at precision production. Specs sourced from DMG Mori published data.

Full Specifications

Parameter	Value
X-Axis Travel	800 mm (31.5 in)
Y-Axis Travel	530 mm (20.9 in)
Z-Axis Travel	510 mm (20.1 in)
Max Spindle Speed	12,000 RPM (BT 40); 10,000 RPM (BT 50)
Spindle Taper	BT 40 / BT 50
Spindle Motor Power	11 kW (14.7 hp) continuous (BT 40); 22 kW (29.5 hp) (BT 50)
Tool Capacity	30 (arm-type ATC); 40, 60 optional
Table Size	1,270 x 560 mm (50.0 x 22.0 in)
Max Table Load	700 kg (1,543 lb)
Rapid Traverse Rate	36 m/min (1,417 ipm)
Chip To Chip	1.8 sec
Machine Weight	7,500 kg (16,535 lb)
CNC Control	FANUC 0i-MF Plus / CELOS X
Guide Type	Box ways (all axes)
Positioning Accuracy	±0.003 mm (±0.00012 in)
Repeatability	±0.002 mm (±0.00008 in)
800 Mm	31.5 in.
530 Mm	20.9 in.
510 Mm	20.1 in.
1000 Kg	2204.6 lbs.
1100 Mm	43.3 in.
600 Mm	23.6 in.
From 3 To 5 Axis Machining Increasing Efficiency And Precision In Production	NVX 5000 2nd Generation
Customer Benefits	MPC Graph: aktuelle und angelernte Prozesswerte. / MPC Diagnostics: Lagerzustand, Anzahl von Stoß und Crash.
Customer Benefitsshorter Set Up Timesno Great Experience Necessary To Take Measurements	Left : Structured user notes for the measurement results. / Right : Toolsetter mode – length / diameter and wear measurement.

Specifications sourced from us.dmgmori.com — verified 2026-03-28

Strengths & Limitations

Strengths

Box ways on all three axes provide superior vibration damping for heavy interrupted cuts in steel, cast iron, and titanium
±0.003 mm positioning accuracy is among the best in the mid-range VMC class, supporting tight-tolerance mold and die work
BT 50 option with 22 kW spindle delivers serious roughing capability for shops machining hard materials daily
Ceramic hybrid bearings in the integral spindle minimize thermal growth during long production runs
7,500 kg machine weight provides a rigid, stable platform that maintains accuracy under heavy cutting loads
30-tool standard ATC with 60-tool option supports high-mix production without constant manual tool loading

Limitations

36 m/min rapids are 15-20% slower than roller-guide competitors, adding cycle time on parts with lots of positioning moves
11 kW continuous power on the BT 40 version is modest — shops doing heavy roughing should seriously consider the BT 50 variant
Box ways require more maintenance (periodic re-scraping) than roller guides to maintain accuracy over the machine life
At $165K+, it costs significantly more than entry-level VMCs with similar travel

Best For

Mold and die shops where surface finish quality and damping during finish passes justify the box-way premium Production shops machining steel, cast iron, and stainless steel parts where vibration damping directly affects tool life Aerospace shops cutting titanium and Inconel that need the rigidity of box ways for stable heavy-duty roughing Precision job shops holding tolerances under ±0.005 mm consistently across production runs Shops stepping up from entry-level VMCs that want the accuracy and rigidity of a premium platform

Frequently Asked Questions

01 What does a new DMG Mori NVX 5080 cost?

New NVX 5080 machines start around $165,000 for BT 40. The BT 50 variant runs $185,000-$225,000 depending on options. Through-spindle coolant, expanded ATC, and probing add to the price. Used units from 2015-2020 sell for $85,000-$130,000.

02 Box ways vs roller guides — why choose the NVX 5080?

Box ways excel at damping vibration during heavy cuts and interrupted machining. They maintain surface finish quality in challenging materials (hardened steel, cast iron, titanium) where roller guides can chatter. The tradeoff is slower rapids and higher maintenance. If your work is precision-critical in hard materials, box ways are worth it.

03 Should I get BT 40 or BT 50?

BT 40 for shops doing mostly aluminum, brass, and mild steel under moderate depths of cut. BT 50 for production work in hardened steel, cast iron, titanium, or any application where spindle stiffness and torque are the limiting factors. The BT 50 version weighs more and runs slower spindle speeds, but delivers significantly more cutting force.

04 How does the NVX 5080 compare to the Okuma GENOS M560-V?

Both are box-way VMCs in the same class. The Okuma offers its Thermo-Friendly Concept and OSP control. The DMG Mori counters with CELOS X interface and slightly better published accuracy specs. Both are excellent machines — the decision often comes down to control preference (FANUC vs OSP) and regional dealer support.
