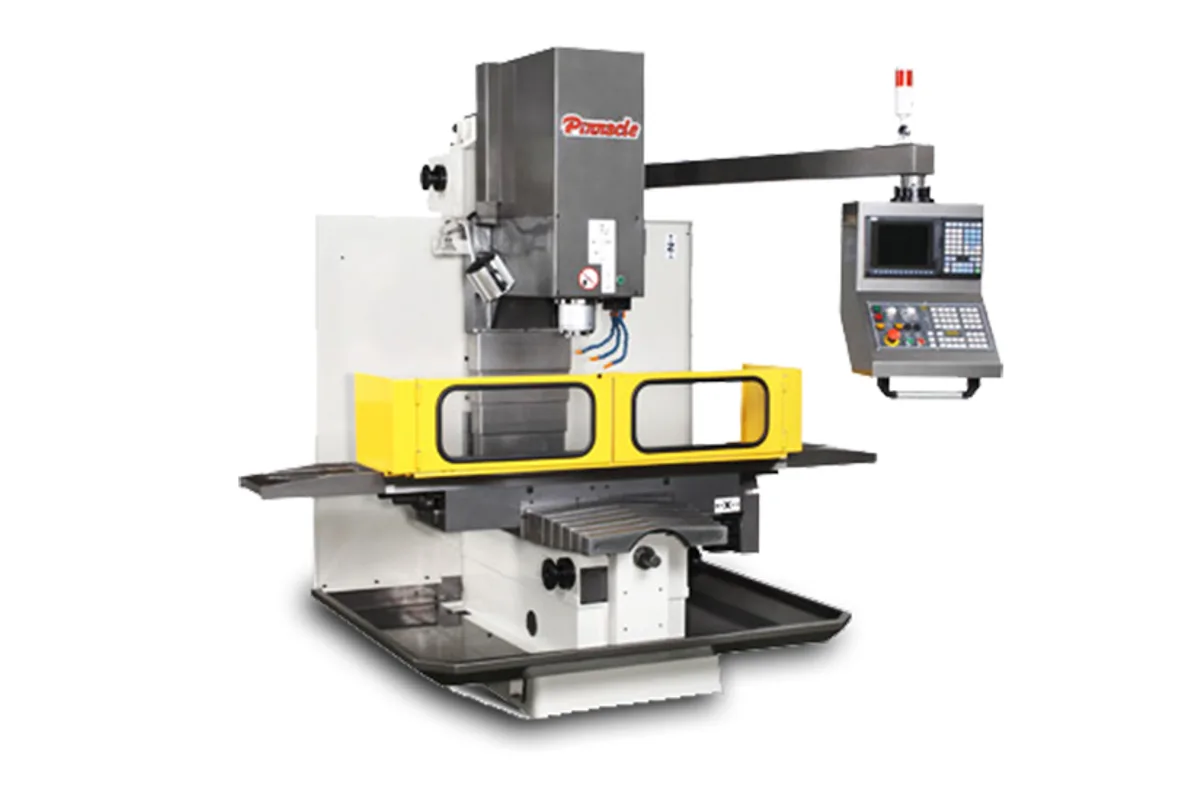

Pinnacle B3KCNC
Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
control
How much does the Pinnacle B3KCNC cost?
Price estimate
We do not have a price for the Pinnacle B3KCNC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle B3KCNC is a CNC bed-type milling machine: the CNC version of Pinnacle's PK-B3K bed mill, with 1,020 mm (40.2 in) of X travel, 460 mm (18.1 in) of Y and 500 mm (19.7 in) of Z. It is the simplest CNC machine in the range and the lightest, at 2,700 kg (5,952 lb).
The table shows its bed-mill origin. It is long and narrow, 1,524 x 305 mm (60.0 x 12.0 in), with a 300 kg (661 lb) load limit, so it suits bars, rails and plates clamped along X more than bulky castings. The spindle nose stands 150 - 660 mm (5.9 - 26.0 in) above it.
A BT40 spindle runs at 8,000 rpm on a 5.5 kW (7.4 hp) motor. Rapid traverse is 10 m/min, a fraction of what Pinnacle's LV vertical machining centers reach, and the tool changer capacity is listed as 16/20. Tools may be 90 mm (3.5 in) in diameter, 250 mm (9.8 in) long and 8 kg (18 lb).
The controller row reads M70. Standard accessories are basic: a cooling pump system, auto lubrication, way chip protectors, a chip tray and a worklight. Nothing on the page mentions a full enclosure. The coolant tank holds 90 L. For toolroom work, one-off parts and training, that is a sensible specification; for production the LV85 class is the next step.
Full Specifications
| Parameter | Value |
|---|---|
| CNC Control | M70 |
| Table Size | 1,524 x 305 mm (60.0 x 12.0 in) |
| X Axis Travel | 1,020 mm (40.2 in) |
| Y Axis Travel | 460 mm (18.1 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Max Table Load | 300 kg (661 lb) |
| Distance Spindle Nose to Table | 150 - 660 mm (5.9 - 26.0 in) |
| T-Slots | 16 x 63.5 x 3 (WxDxN mm) |
| Max Spindle Speed | 8,000 rpm |
| Spindle Motor Power | 5.5 kW (7.4 hp) |
| Spindle Taper | BT40 |
| Rapid Traverse Xyz | 10 m/min |
| Tool Capacity | 16/20 |
| Max Tool Diameter (full magazine) | 90 mm (3.5 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 8 kg (18 lb) |
| Coolant Tank Capacity | 90 L |
| Machine Weight | 2,700 kg (5,952 lb) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 1,020 mm (40.2 in) of X travel on a 1,524 x 305 mm (60.0 x 12.0 in) table
- BT40 spindle at 8,000 rpm with a 5.5 kW (7.4 hp) motor
- Tool changer with a capacity of 16/20
- Light machine at 2,700 kg (5,952 lb)
Limitations
- Rapid traverse is 10 m/min
- Table is only 305 mm wide and limited to 300 kg (661 lb)
- Standard accessories list a chip tray and way protectors, not a full enclosure
Best For
Frequently Asked Questions
01
A CNC bed-type milling machine with an automatic tool changer. Pinnacle lists it under milling machines beside the manual PK-B3K, and the specification table heads it B3KCNC (CNC Bed Type).
02
X is 1,020 mm (40.2 in), Y is 460 mm (18.1 in) and Z is 500 mm (19.7 in). The table is 1,524 x 305 mm (60.0 x 12.0 in) with T-slots listed as 16 x 63.5 x 3.
03
A BT40 spindle at 8,000 rpm driven by a 5.5 kW (7.4 hp) motor. The controller is listed as M70. Rapid feed rate on X, Y and Z is 10 m/min.
04
The ATC capacity is listed as 16/20. Maximum tool diameter is 90 mm (3.5 in), maximum length 250 mm (9.8 in) and maximum weight 8 kg (18 lb).
