Pinnacle Vertical Machining Centers (VMC)

Pinnacle LV179

Q: How much does the Pinnacle LV179 cost?

The price estimate for the Pinnacle LV179 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-lv179#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

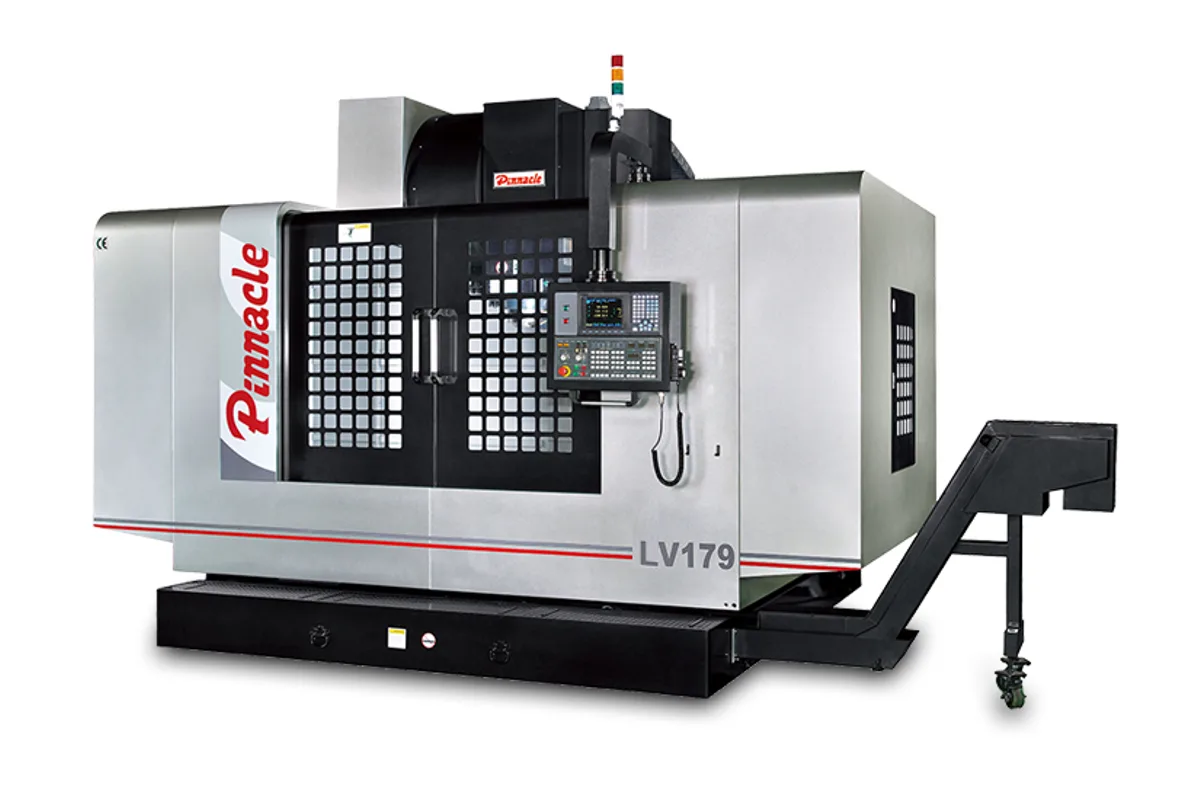

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

ISO40: 24; ISO50: 24 / 32

Table Size

1,900 x 850 mm (74.8 x 33.5 in)

Spindle Power

ISO40: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min); ISO50: 15 / 18.5 kW (20.1 / 24.8 hp) (con/30 min)

max table load

2,500 kg (5,511 lb)

distance spindle nose to table

100 ~ 950 mm (3.9 ~ 37.4 in)

t slots

18 x 150 x 5 (Width x Distance x Number mm)

How much does the Pinnacle LV179 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle LV179 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle LV179 is the mid-length model of the large LV group, with a 1,900 x 850 mm (74.8 x 33.5 in) table rated for 2,500 kg (5,511 lb). Pinnacle's feature list gives the group's travel as 1500 (1700, 2000) X 900 x 850 mm, which puts this model at 1700 mm of X; the travel cell of its own table is misprinted on the maker's page, so that row is not shown here.

Most buyers will look at it for the table. It is longer than the LV159's 1,700 x 850 mm (66.9 x 33.5 in) and carries more, yet the rapids are unchanged at 24 / 24 / 16 m/min. The LV209 is longer again but drops to 18 / 18 / 16 m/min.

Spindle and tooling match the rest of the group. ISO40 means 11 / 15 kW (14.8 / 20.1 hp) and a 24-tool disk magazine. ISO50 means 15 / 18.5 kW (20.1 / 24.8 hp), a gear head with L40~1500,H1501~6000 rpm ranges if wanted, and a DISK / CHAIN magazine with 24 / 32 tools.

The machine weighs 15,000 kg (33,069 lb) and occupies 4,450 x 2,900 mm (175.2 x 114.2 in). X and Y are on linear ways; Z is a box way unless the linear option is taken. Supply is 220V, 3Ph,50/60Hz at 40 kVA.

Full Specifications

Parameter	Value
Table Size	1,900 x 850 mm (74.8 x 33.5 in)
Max Table Load	2,500 kg (5,511 lb)
Distance Spindle Nose to Table	100 ~ 950 mm (3.9 ~ 37.4 in)
T-Slots	18 x 150 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø100 mm (Ø3.9 in)
Spindle Center to Column	950 mm (37.4 in)
Spindle Speed Belt Drive	ISO40: 40 ~ 8,000(10,000/12,000) rpm; ISO50: 40 ~ 6,000(8,000) rpm
Spindle Speed Gear Drive	ISO40: L40~2000,H2001~8000 rpm; ISO50: L40~1500,H1501~6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min); ISO50: 15 / 18.5 kW (20.1 / 24.8 hp) (con/30 min)
Rapid Traverse Xyz	24 / 24 / 16 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	ISO40: DISK; ISO50: DISK / CHAIN
Tool Capacity	ISO40: 24; ISO50: 24 / 32
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 / Ø127 / Ø127 mm (Ø4.1 / Ø5.0 / Ø5.0 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 350 mm (13.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirements	220V, 3Ph,50/60Hz
Power Requirement	40 kVA
Coolant Tank Capacity	700 L
Machine Weight	15,000 kg (33,069 lb)
Machine Height	3,200 mm (126.0 in)
Floor Space	4,450 x 2,900 mm (175.2 x 114.2 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,900 x 850 mm (74.8 x 33.5 in) table rated for 2,500 kg (5,511 lb)
Keeps 24 / 24 / 16 m/min rapids, where the longer LV209 slows to 18 / 18 / 16 m/min
ISO50 spindle with 15 / 18.5 kW (20.1 / 24.8 hp) and a 24 / 32 tool DISK / CHAIN magazine
15,000 kg (33,069 lb) structure with a counterweighted head

Limitations

The travel row of Pinnacle's table is misprinted for this model, so confirm X, Y and Z in writing
Z axis rapid is only 16 m/min
Requires 40 kVA and 4,450 x 2,900 mm (175.2 x 114.2 in) of floor

Best For

Long mould plates and machine bases up to 2,500 kg (5,511 lb) Shops that need more table than the LV159 without slower rapids Heavy ISO50 roughing with a gear head

Frequently Asked Questions

01 What is the X travel of the Pinnacle LV179?

Pinnacle's feature list for the LV159/LV179/LV209 reads 1500 (1700, 2000) X 900 x 850 mm Travel, so the LV179 is the 1700 mm model. The travel cell in the specification table carries a misprint, so ask Pinnacle to confirm the three travels before ordering.

02 How much can the LV179 table carry?

The maximum table load is 2,500 kg (5,511 lb) on a 1,900 x 850 mm (74.8 x 33.5 in) table with T-slots listed as 18 x 150 x 5. The spindle nose to table distance is 100 ~ 950 mm (3.9 ~ 37.4 in).

03 What spindle options does the LV179 have?

Two tapers. ISO40 with an 11 / 15 kW (14.8 / 20.1 hp) motor runs 40 ~ 8,000(10,000/12,000) rpm on a belt or 10,000 / 12,000 / 15,000 rpm direct-drive. ISO50 with 15 / 18.5 kW (20.1 / 24.8 hp) runs 40 ~ 6,000(8,000) rpm on a belt or 10,000 rpm direct-drive.

04 How does the LV179 compare with the LV209?

The LV209 has a 2,200 x 850 mm (86.6 x 33.5 in) table rated for 3,000 kg (6,614 lb) and weighs 16,000 kg (35,273 lb), but its rapids are 18 / 18 / 16 m/min. The LV179 is the faster-moving machine with the shorter table.
