Pinnacle DV1922

Q: How much does the Pinnacle DV1922 cost?

The price estimate for the Pinnacle DV1922 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1922#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

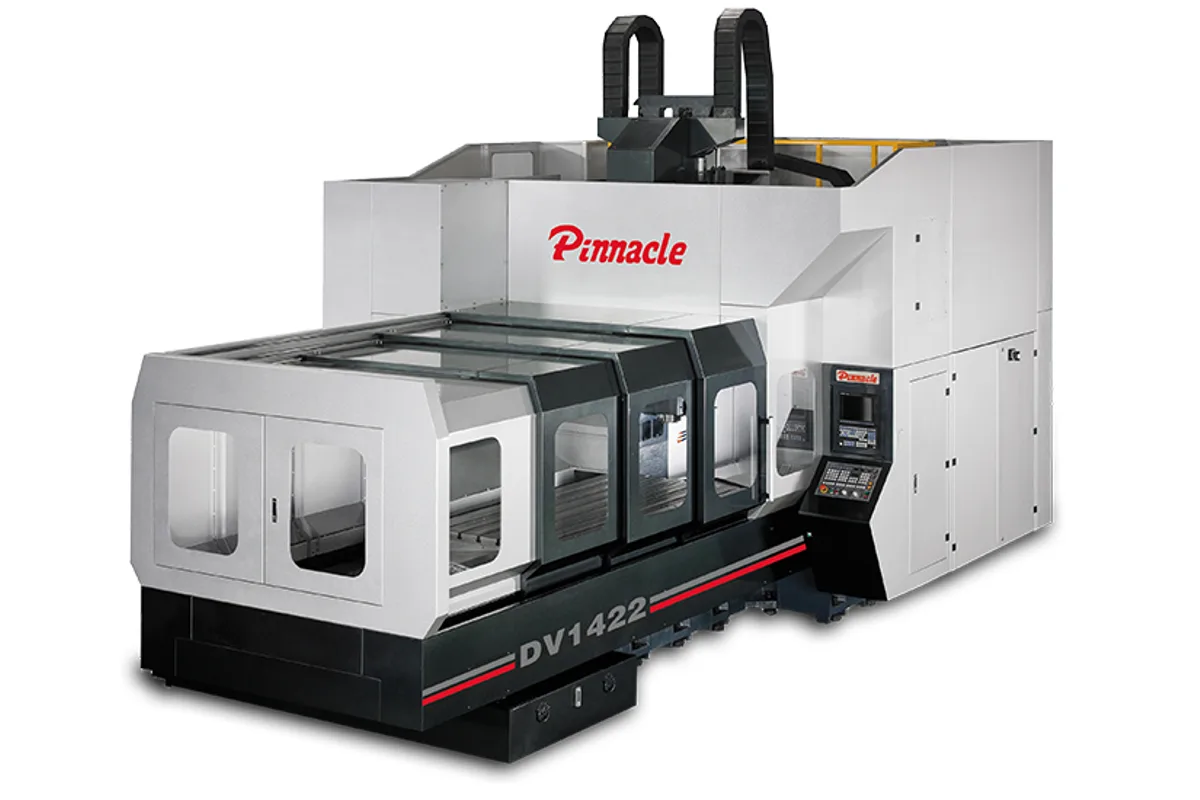

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

2,200 x 1,700 mm (86.6 x 66.9 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

2,200 mm (86.6 in)

y axis travel

1,900 mm (74.8 in)

How much does the Pinnacle DV1922 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1922 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV1922 has a nearly square working area: 2,200 mm (86.6 in) of X against 1,900 mm (74.8 in) of Y, over a 2,200 x 1,700 mm (86.6 x 66.9 in) table with eleven T-slots. Z travel is 900 mm (35.4 in).

Two things set it apart from the DV1722, which shares its floor space of 6,090 x 5,300 mm (239.8 x 208.7 in). Draw bar force is 2,000 kgf where the DV1722 has 1,800 kgf, a firmer grip on the ISO50 tool for heavy face milling. And Y travel uses the whole gap: the table lists 1,900 mm (74.8 in) both for Y travel and for the distance between the columns.

That second point deserves a question to the maker. With travel equal to the column spacing, a part as wide as the travel has no clearance to the columns, so the usable part width is set by the 1,700 mm (66.9 in) table and by fixture overhang.

Rapids are 12/16/20 m/min. The machine weighs 22,000 kg (48,501 lb) and stands 4,500 mm (177.2 in) high. The gear-driven spindle carries a 15/18.5 kW (20.1/24.8 hp) motor with 8,000 rpm in the table, and the standard chain magazine holds 32 tools selected at random in either direction.

Full Specifications

Parameter	Value
X Axis Travel	2,200 mm (86.6 in)
Y Axis Travel	1,900 mm (74.8 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	160~1,060 mm (6.3~41.7 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,900 mm (74.8 in)
Table Size	2,200 x 1,700 mm (86.6 x 66.9 in)
T-Slots	22 x 150 x 11 (W D x N mm )
Max Table Load	8,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	2,000 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	12/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	22,000 kg (48,501 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	6,090 x 5,300 mm (239.8 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,900 mm (74.8 in) of Y travel on 2,200 mm (86.6 in) of X
2,000 kgf draw bar force on the ISO50 spindle
2,200 x 1,700 mm (86.6 x 66.9 in) table with T-slots listed as 22 x 150 x 11
Same 6,090 x 5,300 mm (239.8 x 208.7 in) floor space as the narrower DV1722

Limitations

Rapids are 12/16/20 m/min, where the DV1722 with the same X travel has 16/16/20 m/min
Y travel equals the 1,900 mm (74.8 in) column spacing, so no side clearance is implied for full-width parts
Table rating is 8,000 kg/m2, below the 10,000 kg/m2 of the DV1932

Best For

Large square plates and rings up to 2,200 x 1,700 mm (86.6 x 66.9 in) Heavy face milling that benefits from 2,000 kgf of tool clamping Wide die blocks needing 1,900 mm (74.8 in) of Y

Frequently Asked Questions

01 What is the Y travel of the Pinnacle DV1922?

1,900 mm (74.8 in), with 2,200 mm (86.6 in) of X and 900 mm (35.4 in) of Z. The distance between the columns is also listed as 1,900 mm (74.8 in), and the table is 2,200 x 1,700 mm (86.6 x 66.9 in).

02 What is the draw bar force on the DV1922?

2,000 kgf. The DV1722 and the other narrower DV models are listed at 1,800 kgf. Taper, spindle inner diameter and motor are unchanged: ISO50, Ø100 mm (Ø3.9 in) and 15/18.5 kW (20.1/24.8 hp).

03 DV1922 or DV2122: which is wider?

The DV2122 has 2,100 mm (82.7 in) of Y travel and the same distance between its columns. Both machines list a 2,200 x 1,700 mm (86.6 x 66.9 in) table, a 6,090 x 5,300 mm (239.8 x 208.7 in) floor space and 12/16/20 m/min rapids. The DV1922 weighs 22,000 kg (48,501 lb), the DV2122 23,500 kg (51,808 lb).

04 How fast does the DV1922 move?

Rapid feed is 12/16/20 m/min on X, Y and Z, and cutting feed is 10,000 mm/min. The Z axis is balanced pneumatically, which Pinnacle says gives fast and stable Z movement.
