Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV1432

Q: How much does the Pinnacle DV1432 cost?

The price estimate for the Pinnacle DV1432 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1432#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

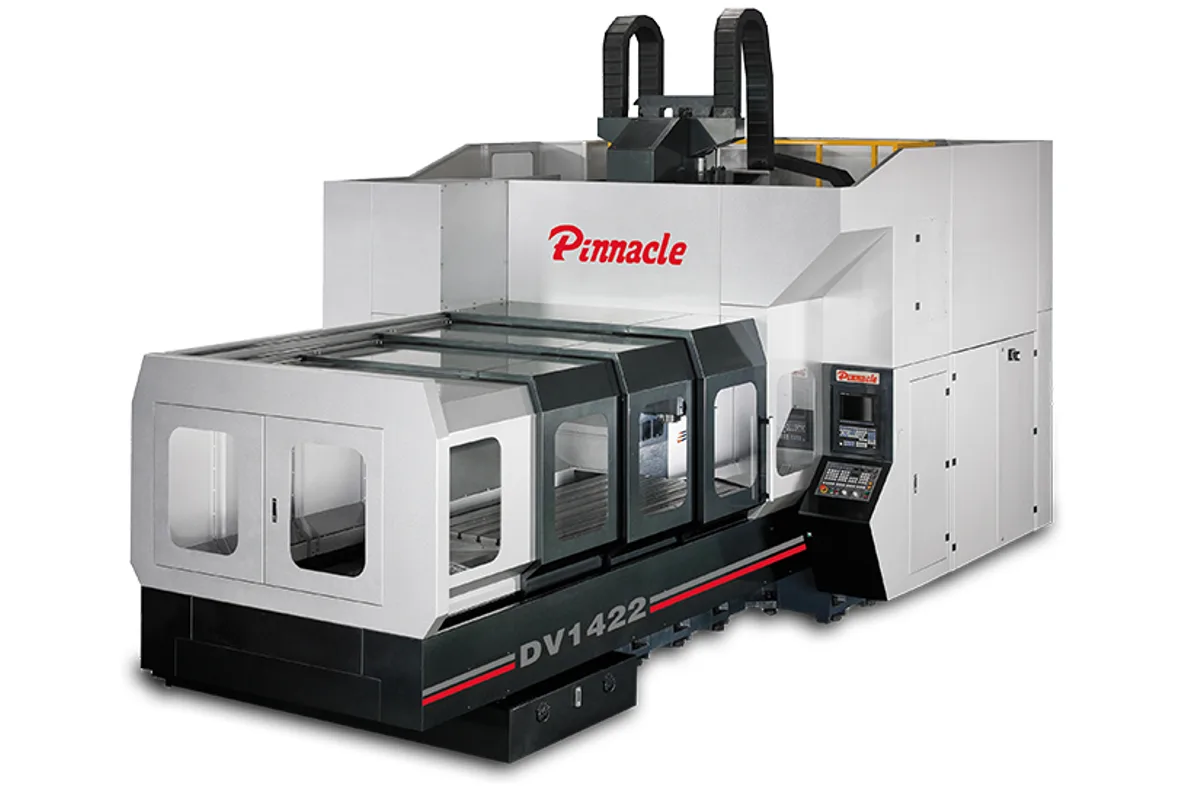

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

3,200 x 1,200 mm (126.0 x 47.2 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

3,200 mm (126.0 in)

y axis travel

1,400 mm (55.1 in)

How much does the Pinnacle DV1432 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1432 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV1432 puts a 3,200 x 1,200 mm (126.0 x 47.2 in) table under the narrowest DV bridge. X travel is 3,200 mm (126.0 in), Y is 1,400 mm (55.1 in) and Z is 900 mm (35.4 in), a long and fairly narrow envelope for plates, rails and multi-part setups along the bed.

Two figures change at this length. The table rating rises to 8,000 kg/m2, from the 5,000 kg/m2 of the DV1422. And the spindle nose range moves down: 110~1,010 mm (4.3~39.8 in) from the table here, where the DV1422 is listed at 160~1,060 mm (6.3~41.7 in). Short tools reach closer to the table surface, and the tallest workpiece is correspondingly lower.

Weight goes up only modestly for the added length, to 17,000 kg (37,478 lb), while the floor space grows to 8,130 x 4,150 mm (320.1 x 163.4 in). X rapid stays at 16 m/min with 20 m/min on Y and Z.

The cutting end is the common DV package. An ISO50 spindle is driven through a gear box by a 15/18.5 kW (20.1/24.8 hp) motor, with 8,000 rpm in the specification table and oil-bath lubrication for the gears and bearings. Tool selection is bi-directional and random, from a magazine listed as DISK / Chain with 24/32 tools.

Full Specifications

Parameter	Value
X Axis Travel	3,200 mm (126.0 in)
Y Axis Travel	1,400 mm (55.1 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	110~1,010 mm (4.3~39.8 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,400 mm (55.1 in)
Table Size	3,200 x 1,200 mm (126.0 x 47.2 in)
T-Slots	22 x 150 x7 (W D x N mm )
Max Table Load	8,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	1,800 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	16/20/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK / Chain
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125(Ø160/ Ø250) mm (Ø4.3/ Ø4.9(Ø6.3/ Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	17,000 kg (37,478 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	8,130 x 4,150 mm (320.1 x 163.4 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

3,200 mm (126.0 in) of X over a 3,200 x 1,200 mm (126.0 x 47.2 in) table
Table rating of 8,000 kg/m2
Spindle nose comes down to 110 mm (4.3 in) from the table
Keeps a 16 m/min X rapid at this length; the DV1442 slows to 12 m/min
Gears and bearings in the gear box are oil-bath lubricated

Limitations

Y travel stays at 1,400 mm (55.1 in), so the envelope is long and narrow
Maximum spindle nose height is 1,010 mm (39.8 in), lower than the 1,060 mm (41.7 in) of the DV1422
Floor space of 8,130 x 4,150 mm (320.1 x 163.4 in) and 4,500 mm (177.2 in) of height

Best For

Long plates, rails and frames up to 3,200 x 1,200 mm (126.0 x 47.2 in) Several fixtures in a row along 3,200 mm (126.0 in) of X Heavy parts that need the 8,000 kg/m2 table rating

Frequently Asked Questions

01 What is the X travel of the Pinnacle DV1432?

3,200 mm (126.0 in). Y is 1,400 mm (55.1 in) and Z is 900 mm (35.4 in), and the table measures 3,200 x 1,200 mm (126.0 x 47.2 in) with T-slots listed as 22 x 150 x7.

02 How much weight can the DV1432 table take?

Pinnacle prints the maximum table load as 8,000 kg/m2. That is a rating per square metre of table, so the permitted total depends on how the load is spread; ask Pinnacle for the total figure for a concentrated load. The machine itself weighs 17,000 kg (37,478 lb).

03 Why is the spindle nose distance different from the DV1422?

Pinnacle lists 110~1,010 mm (4.3~39.8 in) between spindle nose and table for the DV1432 and 160~1,060 mm (6.3~41.7 in) for the DV1422. Z travel is 900 mm (35.4 in) on both, so the whole stroke sits lower on the longer machine. The page does not give the reason.

04 Which tool magazine does the DV1432 use?

The table lists DISK / Chain with a capacity of 24/32, and the standard accessories list names a chain type 32-tool ATC. Pinnacle describes the magazine as cam driven, mounted apart from the cutting area and closed off by a protection door to keep chips and coolant off the tools.
