Vision Wide Vertical Machining Centers (VMC)

Vision Wide HF-4040 / HF-4047

Q: How much does the Vision Wide HF-4040 / HF-4047 cost?

The price estimate for the Vision Wide HF-4040 / HF-4047 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-4040-hf-4047#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

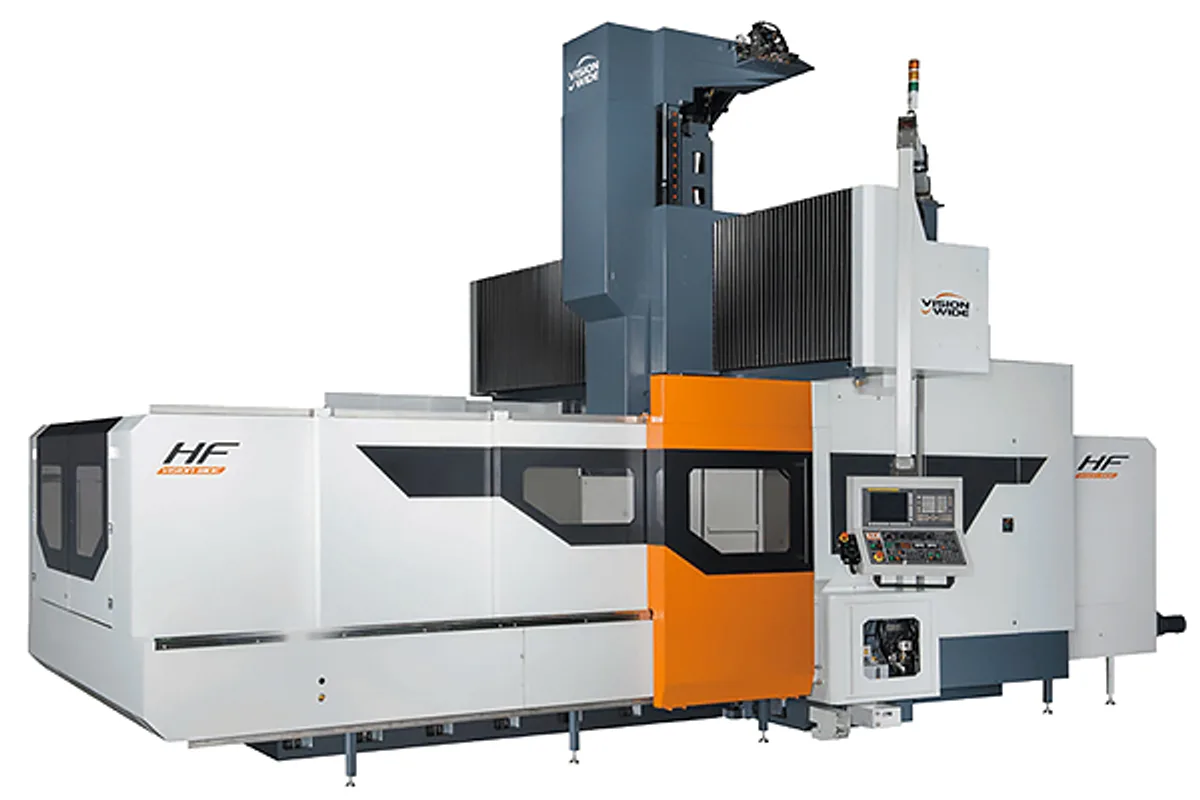

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

4,000×3,500 mm (157.5×137.8 in)

x axis travel

4,100 mm (161.4 in)

y axis travel

4,000/ 4,700 mm (157.5/ 185.0 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

20,000 kg (44,092 lb)

How much does the Vision Wide HF-4040 / HF-4047 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-4040 / HF-4047 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

On the Vision Wide HF-4040 / HF-4047 the bridge is as long as the bed. X travel is 4,100 mm (161.4 in); Y travel is 4,000 mm (157.5 in) on the HF-4040 and 4,700 mm (185.0 in) on the HF-4047. The table, 4,000×3,500 mm (157.5×137.8 in), is nearly square.

Round and square parts are the natural fit. Large rings and flanges, turbine and pump casings, square die sets and machine columns laid flat all want equal reach in both directions, and most long-bed machines waste half their travel on them. Here a four-metre part can sit in the middle of the table with the spindle able to reach all round it.

It carries 20,000 kg (44,092 lb), the same as the HF-4035, whose table is 4,000×3,000 mm (157.5×118.1 in). As elsewhere in the range the wider table brings area and no additional capacity.

A beam spanning 4,700 mm of travel is a long one. Vision Wide describes a square cross-section beam with the center of the head close to the beam center to keep heavy cutting ability. The standard motor is 22/26 kW (29.5/34.9 hp), X/Y rapid is 10 m/min, and cutting feed runs 1-7,000 mm/min.

Full Specifications

Parameter	Value
X Axis Travel	4,100 mm (161.4 in)
Y Axis Travel	4,000/ 4,700 mm (157.5/ 185.0 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	4,000×3,500 mm (157.5×137.8 in)
Max Table Load	20,000 kg (44,092 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm(Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	10 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Near-square 4,000×3,500 mm (157.5×137.8 in) table
Y travel of 4,000 mm (157.5 in) or 4,700 mm (185.0 in) on a 4,100 mm (161.4 in) bed
20,000 kg (44,092 lb) table load
Square-section beam designed for heavy cutting, per the maker

Limitations

No more load capacity than the narrower HF-4035
X/Y rapid traverse of 10 m/min
Cutting feed of 1-7,000 mm/min

Best For

Large rings, flanges and casings Square die sets and machine columns laid flat Round or square parts up to 20,000 kg (44,092 lb)

Frequently Asked Questions

01 How big is the Vision Wide HF-4040 table?

4,000×3,500 mm (157.5×137.8 in), with a 20,000 kg (44,092 lb) load rating. The HF-4035 has a 4,000×3,000 mm (157.5×118.1 in) table and the same rating.

02 What Y travel do the HF-4040 and HF-4047 have?

4,000 mm (157.5 in) on the HF-4040 and 4,700 mm (185.0 in) on the HF-4047, printed as 4,000/ 4,700 mm (157.5/ 185.0 in). X travel is 4,100 mm (161.4 in) on both.

03 Is the HF-4040 suited to round parts?

Its travels are nearly equal in X and Y and its table is close to square, so large rings and casings can be reached all round. The page lists no rotary table; five-face work is done with attachment heads.

04 What spindle does the HF-4040 / HF-4047 have?

A box way 4,000rpm 2-step gear type spindle as standard, driven by a 22/26 kW (29.5/34.9 hp) motor. A 30/37 kW (40.2/49.6 hp) motor and a 6,000 rpm gear spindle are options.
