Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV1742

Q: How much does the Pinnacle DV1742 cost?

The price estimate for the Pinnacle DV1742 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1742#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

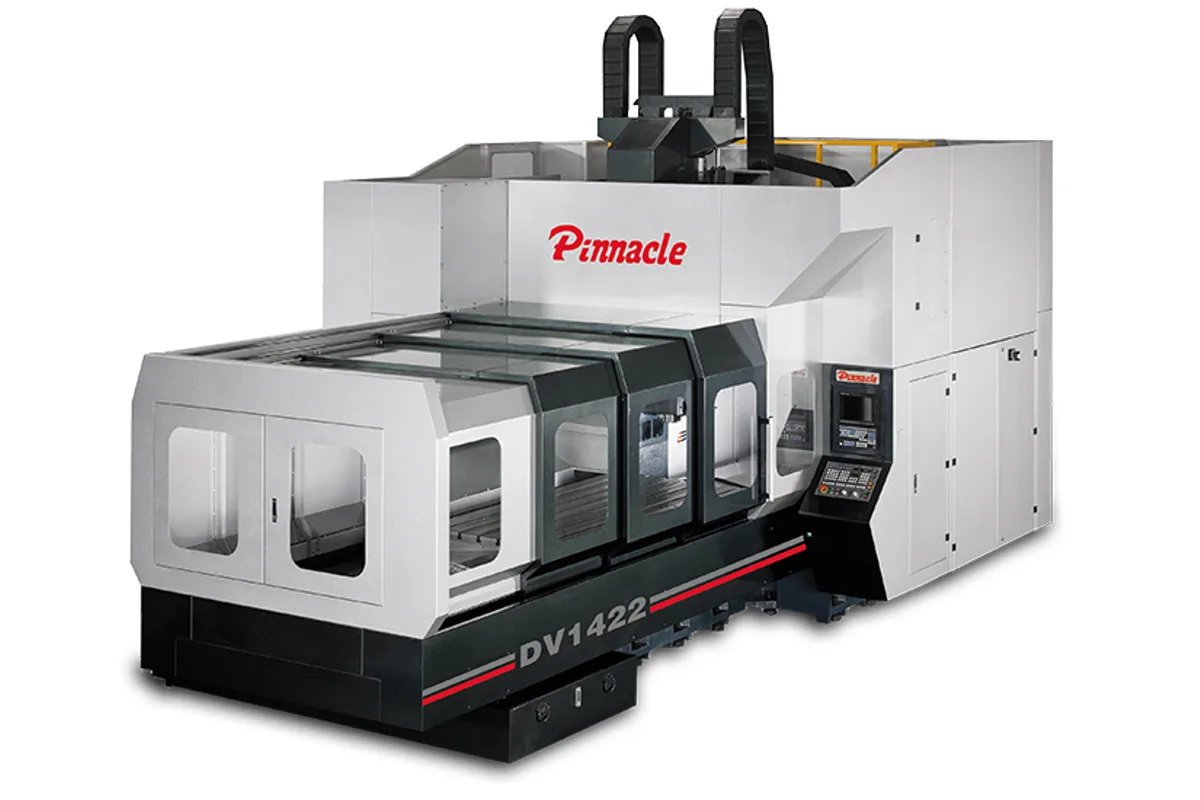

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

4,200 x 1,500 mm (165.4 x 59.1 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

4,200 mm (165.4 in)

y axis travel

1,700 mm (66.9 in)

How much does the Pinnacle DV1742 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1742 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV1742 carries the highest table rating Pinnacle lists for the DV range, 12,000 kg/m2, on a 4,200 x 1,500 mm (165.4 x 59.1 in) table. Travels are 4,200 mm (165.4 in) in X, 1,700 mm (66.9 in) in Y and 900 mm (35.4 in) in Z.

Heavy, long workpieces are the reason to choose it: machine beds, press frames, large fabrications. The base is described by Pinnacle as extra heavy, giving complete support to the table so that it resists heavy loads without deformation, and the X, Y and Z axes run on roller type linear ways set wide apart. The machine weighs 24,000 kg (52,910 lb).

The spindle does not scale with the table. It is the same ISO50 gear-driven unit as on the 15,500 kg (34,171 lb) DV1417, with a 15/18.5 kW (20.1/24.8 hp) motor and 1,800 kgf of draw bar force. So the DV1742 removes metal at the rate of the smaller machines; what it adds is reach and carrying capacity. Rapids are 12/16/20 m/min on X, Y and Z.

Installation needs 10,310 x 5,300 mm (405.9 x 208.7 in) of floor, 4,500 mm (177.2 in) of height, 50 kVA and a 900 L coolant fill. The spindle nose ranges 110~1,010 mm (4.3~39.8 in) above the table.

Full Specifications

Parameter	Value
X Axis Travel	4,200 mm (165.4 in)
Y Axis Travel	1,700 mm (66.9 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	110~1,010 mm (4.3~39.8 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,900 mm (74.8 in)
Table Size	4,200 x 1,500 mm (165.4 x 59.1 in)
T-Slots	22 x 150 x 9 (W D x N mm )
Max Table Load	12,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	1,800 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	12/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	24,000 kg (52,910 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	10,310 x 5,300 mm (405.9 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

12,000 kg/m2 table rating, the highest listed in the DV range
4,200 x 1,500 mm (165.4 x 59.1 in) table with 4,200 mm (165.4 in) of X
Extra heavy base and roller type linear ways on X, Y and Z
1,900 mm (74.8 in) between columns for 1,700 mm (66.9 in) of Y travel

Limitations

Spindle power stays at 15/18.5 kW (20.1/24.8 hp) on a 24,000 kg (52,910 lb) machine
Rapids of 12/16/20 m/min, with the slowest axis covering 4,200 mm (165.4 in) of travel
Floor space of 10,310 x 5,300 mm (405.9 x 208.7 in)

Best For

Machine beds and press frames up to 4,200 x 1,500 mm (165.4 x 59.1 in) Dense, heavy workpieces that need the 12,000 kg/m2 rating Long fabrications needing 1,700 mm (66.9 in) of Y

Frequently Asked Questions

01 How heavy a workpiece can the Pinnacle DV1742 take?

Pinnacle lists the maximum table load as 12,000 kg/m2 for the 4,200 x 1,500 mm (165.4 x 59.1 in) table. No total in kilograms is printed, so get the permitted total and point load from Pinnacle before planning a heavy job. The DV1442 with the same X travel is listed at 8,000 kg/m2.

02 Does the DV1742 have a more powerful spindle than the smaller DV models?

No. The main motor is 15/18.5 kW (20.1/24.8 hp), continuous and 30 minute rating, the same figure as on the smaller models, with an ISO50 taper and gear drive. Draw bar force is 1,800 kgf here; the DV1942 lists 2,000 kgf.

03 What are the dimensions of the DV1742?

Floor space is 10,310 x 5,300 mm (405.9 x 208.7 in) and height is 4,500 mm (177.2 in). The machine weighs 24,000 kg (52,910 lb). The table is 4,200 x 1,500 mm (165.4 x 59.1 in) with T-slots listed as 22 x 150 x 9.

04 How is the DV1742 built?

Pinnacle says all major structural parts are high quality cast iron, tempered to relieve stress, with rib reinforced box type sections. The spindle head is a box-type construction and the Z axis is counter-balanced by a pneumatic system with an accumulator in the air circuit.
