Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV1942

Q: How much does the Pinnacle DV1942 cost?

The price estimate for the Pinnacle DV1942 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1942#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

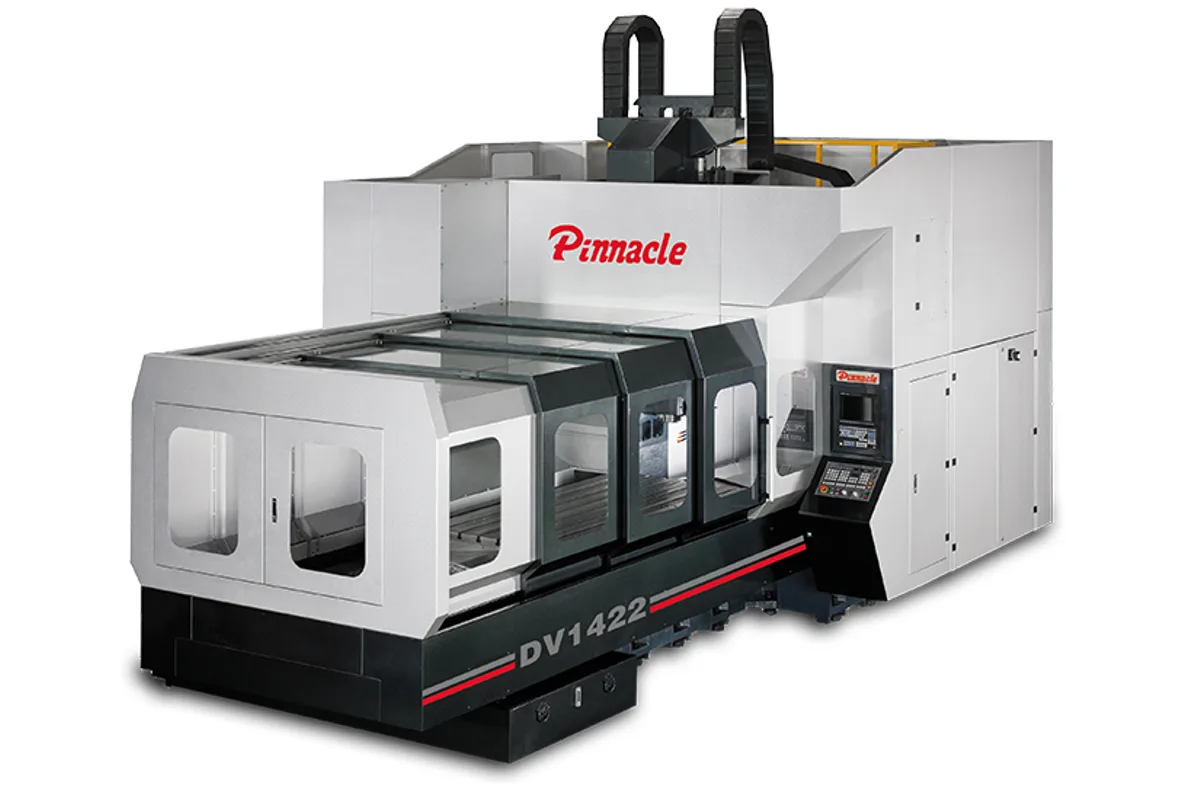

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

4,200 x 1,700 mm (165.4 x 66.9 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

4,200 mm (165.4 in)

y axis travel

1,900 mm (74.8 in)

How much does the Pinnacle DV1942 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1942 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV1942 is a 25,000 kg (55,115 lb) double column machining center with 4,200 mm (165.4 in) of X, 1,900 mm (74.8 in) of Y and 900 mm (35.4 in) of Z. Its 4,200 x 1,700 mm (165.4 x 66.9 in) table is rated at 12,000 kg/m2.

A buyer should start with the building, not the spindle. The machine needs 10,310 x 5,300 mm (405.9 x 208.7 in) of floor and stands 4,500 mm (177.2 in) tall before any crane clearance is added. The supply is 50 kVA, air is 6 kg/cm², and the coolant tank takes 900 L. Leveling bolts and pads are on the standard accessories list.

On the long axis the DV1942 is the slowest mover in the range together with the DV2142: rapids are 10/16/20 m/min on X, Y and Z. With 4,200 mm (165.4 in) to cross, programs that hop from one end of the part to the other will show it, so group operations by location where possible.

Cutting hardware is common to the range. The ISO50 spindle is gear driven with 8,000 rpm in the table, a 15/18.5 kW (20.1/24.8 hp) motor and 2,000 kgf of draw bar force, and rigid tapping is listed as standard. Spindle nose to table is 110~1,010 mm (4.3~39.8 in).

Full Specifications

Parameter	Value
X Axis Travel	4,200 mm (165.4 in)
Y Axis Travel	1,900 mm (74.8 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	110~1,010 mm (4.3~39.8 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,900 mm (74.8 in)
Table Size	4,200 x 1,700 mm (165.4 x 66.9 in)
T-Slots	22 x 150 x 11 (W D x N mm )
Max Table Load	12,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	2,000 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	10/16/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK/CHAIN
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125 (Ø160/Ø250) mm (Ø4.3/ Ø4.9 (Ø6.3/Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	25,000 kg (55,115 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	10,310 x 5,300 mm (405.9 x 208.7 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

4,200 x 1,700 mm (165.4 x 66.9 in) table rated at 12,000 kg/m2
1,900 mm (74.8 in) of Y travel over 4,200 mm (165.4 in) of X
2,000 kgf draw bar force with gear drive
Rigid tapping, spindle oil cooler and heat exchanger are standard accessories

Limitations

X rapid is 10 m/min, the lowest figure in the DV table
10,310 x 5,300 mm (405.9 x 208.7 in) of floor and 25,000 kg (55,115 lb) of machine
Spindle nose reaches at most 1,010 mm (39.8 in) above the table
Motor rating is 15/18.5 kW (20.1/24.8 hp), no higher than on the DV1417

Best For

Very large plates and frames up to 4,200 x 1,700 mm (165.4 x 66.9 in) Heavy workpieces needing a 12,000 kg/m2 table Long parts with wide features across 1,900 mm (74.8 in) of Y

Frequently Asked Questions

01 How much floor space does the Pinnacle DV1942 need?

10,310 x 5,300 mm (405.9 x 208.7 in), with a machine height of 4,500 mm (177.2 in). The machine weighs 25,000 kg (55,115 lb). Pinnacle includes leveling bolts and pads in the standard accessories.

02 What is the rapid traverse of the DV1942?

10/16/20 m/min on X, Y and Z. The DV1932 is listed at 12/16/20 m/min, so the extra length takes a little off the X rapid. Cutting feed rate is 10,000 mm/min.

03 Can the DV1942 tap rigidly?

Rigid tapping is on Pinnacle's standard accessories list for the DV series, along with air blast through the spindle, a spindle oil cooler and an RS-232 interface. The spindle is ISO50 with 2,000 kgf of draw bar force and a 15/18.5 kW (20.1/24.8 hp) motor.

04 What is the work envelope of the DV1942?

X travel is 4,200 mm (165.4 in), Y is 1,900 mm (74.8 in) and Z is 900 mm (35.4 in). Spindle nose to table surface is 110~1,010 mm (4.3~39.8 in), spindle centre to column is 404 mm (15.9 in) and the columns are 1,900 mm (74.8 in) apart.
