Hwacheon Vesta 1000

$100,000 - $135,000 Updated 2026-03-11

Key Specifications

X Travel

1,000 mm (39.4 in)

Y Travel

550 mm (21.7 in)

Z Travel

500 mm (19.7 in)

Max Spindle

12,000 RPM

Spindle Taper

BT40

Tool Capacity

30-position ATC

Overview

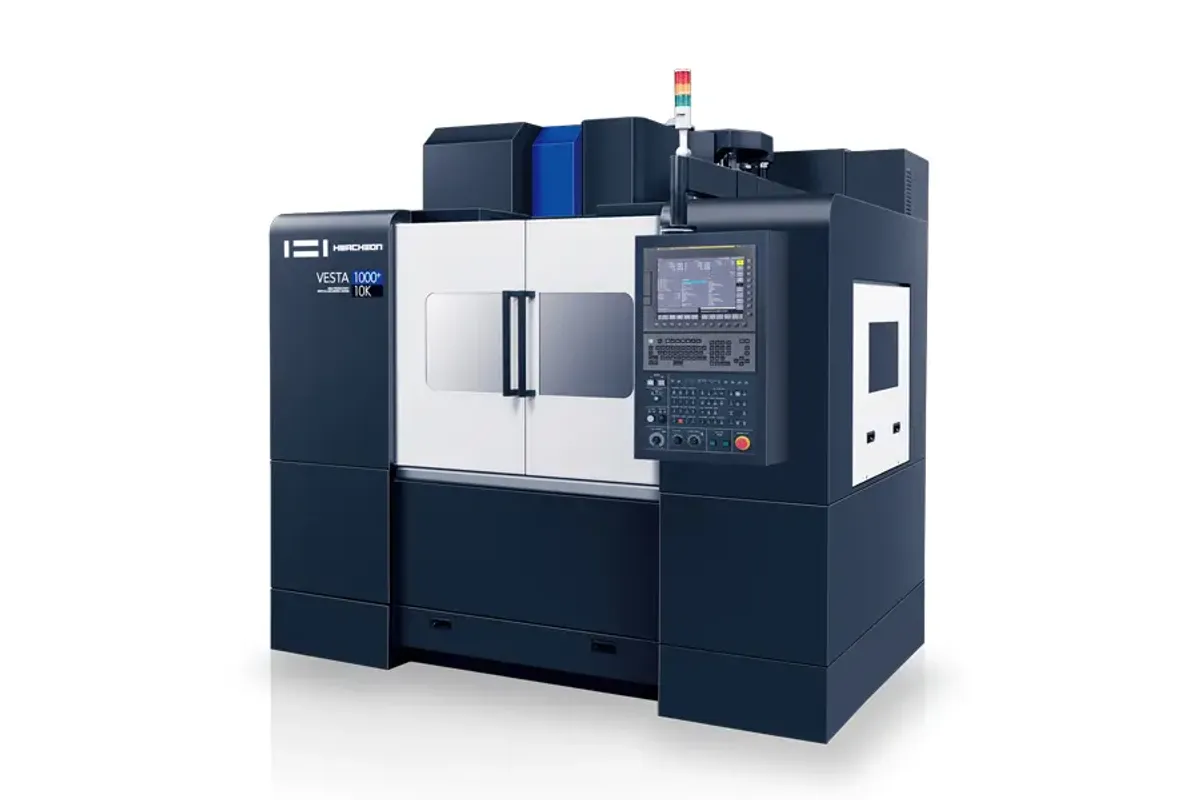

The Hwacheon Vesta 1000 is a linear-guideway vertical machining center that delivers 1,000 x 550 x 500 mm (39.4 x 21.7 x 19.7 in) of travel with a 12,000 RPM spindle and 30-tool ATC. Hwacheon, South Korea's oldest machine tool manufacturer, built the Vesta series for shops that need production-capable VMC performance at a price point below Japanese and European brands. The Vesta 1000 occupies the sweet spot between mid-size and large VMCs, with enough X-travel to handle parts that outgrow a typical 30-inch machine.

The 30/25 kW (40/33 hp) spindle motor is a standout specification for a machine at this price point. That's more power than you'll find on most 40-taper VMCs under $150K, and it translates directly to higher material removal rates in steel, cast iron, and stainless. The BT40 spindle runs to 12,000 RPM, providing adequate speed for aluminum work while the high horsepower handles demanding steel roughing. Hwacheon manufactures their spindles in-house, which gives them more control over quality and consistency than OEMs that source from third-party spindle makers.

Rapid traverse rates of 36/36/30 m/min (1,417/1,417/1,181 ipm) on X/Y/Z are competitive for the machine's size class. The 30-position tool changer provides good capacity for complex multi-feature parts, and through-spindle coolant at 30 bar (435 PSI) comes as an option for modern carbide tooling strategies. The table measures 1,100 x 500 mm (43.3 x 19.7 in) with a load capacity exceeding 680 kg (1,500 lb). At 6,500 kg (14,330 lb), the machine has substantial mass for vibration damping.

The Vesta 1000 runs on a Fanuc control, providing industry-standard compatibility. It competes with the Haas VF-4, Doosan DNM 5700, and Mazak VCN-530C in the large mid-size VMC segment. Hwacheon's value proposition is delivering power and capability comparable to Japanese machines at Korean pricing — new Vesta 1000 machines typically list around $100,000-$135,000, which undercuts Mazak and Okuma by 20-30% for similar specifications.

Full Specifications

Parameter	Value
X-Axis Travel	1,000 mm (39.4 in)
Y-Axis Travel	550 mm (21.7 in)
Z-Axis Travel	500 mm (19.7 in)
Max Spindle Speed	12,000 RPM
Spindle Taper	BT40
Spindle Motor Power	30/25 kW (40/33 hp)
Spindle Drive	In-house manufactured spindle
Tool Capacity	30-position ATC
Table Size	1,100 x 500 mm (43.3 x 19.7 in)
Table Load Max	680 kg (1,500 lb)
Rapid Traverse X	36 m/min (1,417 ipm)
Rapid Traverse Y	36 m/min (1,417 ipm)
Rapid Traverse Z	30 m/min (1,181 ipm)
Through Spindle Coolant	30 bar (435 PSI) optional
Guideway Type	Linear Guides
Machine Weight	6,500 kg (14,330 lb)
CNC Control	Fanuc 0i-MF Plus
Manufacturer	Hwacheon
Model	Vesta 1000

Specifications sourced from machinio.com — verified 2026-03-28

Strengths & Limitations

Strengths

40 HP spindle motor is exceptionally powerful for a 40-taper VMC at this price — more power than most machines costing $50K more
1,000 mm (39.4 in) X-travel handles parts that outgrow typical 30-inch mid-size VMCs
12,000 RPM spindle with 40 HP is a versatile combination for both aluminum speed work and steel power cutting
In-house manufactured spindle gives Hwacheon quality control advantages over OEMs sourcing third-party spindles
Price point 20-30% below comparable Mazak and Okuma machines makes it accessible for smaller shops
6,500 kg machine weight provides stability and vibration damping for aggressive cutting in steel

Limitations

Linear-guide construction trades some rigidity versus box-way machines like the Okuma GENOS M560-V in heavy interrupted cuts
Hwacheon brand recognition in North America is lower than Haas, Mazak, or DMG Mori
Dealer and service network in North America is growing but not as extensive as Japanese or American competitors
BT40 taper is standard in Asia but CAT 40 shops will need to invest in new tooling or adapters
Used market for Hwacheon in North America is thin, making resale values less predictable than Haas or Mazak

Best For

Job shops and contract manufacturers looking for large-travel VMC capability at a competitive price point Shops machining steel and cast iron parts that benefit from the 40 HP spindle motor for aggressive roughing Production environments running medium-to-large aluminum and steel parts with mixed-material requirements Shops upgrading from Haas VF-3 or VF-4 size machines that want more spindle power without the Japanese price premium Manufacturers who value performance specifications over brand name recognition

Frequently Asked Questions

01 What does a new Hwacheon Vesta 1000 cost?

New Vesta 1000 machines typically list around $100,000-$135,000 depending on options. This is 20-30% less than comparably specified Mazak or Okuma VMCs. Used machines from 2018-2022 trade in the $55,000-$80,000 range.

02 Why does the Vesta 1000 have so much spindle power?

Hwacheon builds their spindles in-house and spec their machines aggressively on power. The 40 HP rating lets operators push deeper cuts and faster feed rates in steel and cast iron, reducing cycle times. It also provides headroom for demanding materials like stainless and Inconel that many shops encounter occasionally.

03 How does the Vesta 1000 compare to the Haas VF-4?

Both offer similar X-travel (39.4 vs 50 inches — the Haas has more). The Vesta 1000 has significantly more spindle power (40 vs 30 HP), faster rapids, and a 12,000 RPM spindle (vs 8,100 on the base VF-4). The Haas wins on X-travel, dealer network, and brand familiarity. The Hwacheon wins on spindle capability and power.

04 Is Hwacheon a reputable manufacturer?

Yes. Hwacheon is South Korea's oldest machine tool manufacturer, founded in 1945. They build their own spindles, castings, and key components in-house. Their machines are used worldwide in automotive, aerospace, and general manufacturing. They exhibit at IMTS and other major trade shows.
