Pinnacle Vertical Machining Centers (VMC)

Pinnacle LV126

Q: How much does the Pinnacle LV126 cost?

The price estimate for the Pinnacle LV126 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-lv126#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

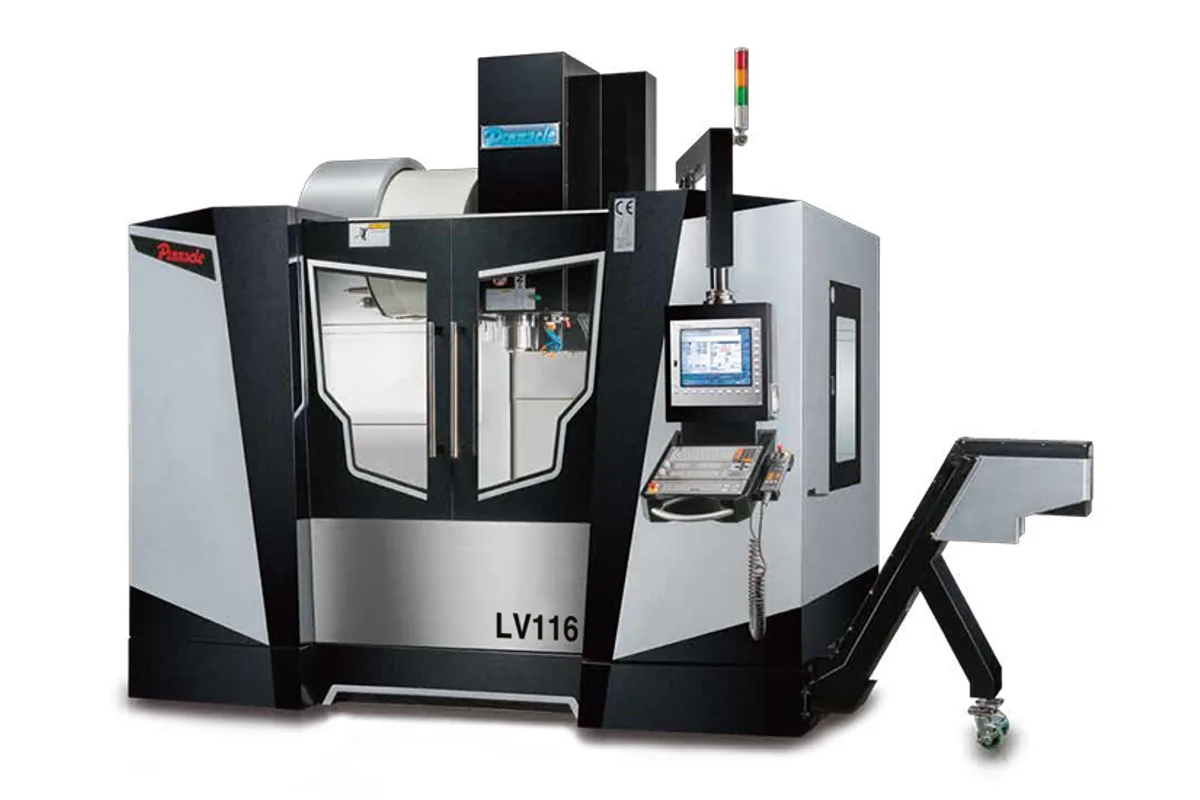

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Tool Capacity

Table Size

1,440 x 610 mm (56.7 x 24.0 in)

Spindle Power

ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)

x axis travel

1,270 mm (50.0 in)

y axis travel

610 mm (24.0 in)

z axis travel

610 mm (24.0 in)

How much does the Pinnacle LV126 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle LV126 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle LV126 is the long-X version of the LV116: 1,270 mm (50.0 in) of X travel with a 1,440 x 610 mm (56.7 x 24.0 in) table, while Y and Z remain 610 mm (24.0 in). It is a linear-way vertical machining center weighing 6,800 kg (14,991 lb).

Buyers choose between two spindles. One column of Pinnacle's table is ISO40, with a 7.5 / 11 kW (10.1 / 14.8 hp) motor and a belt drive at 60 ~ 8,000(10,000/12,000) rpm. The other is ISO50 with 11 / 15 kW (14.8 / 20.1 hp). For the ISO50 spindle the gear head is listed as L40~1500, H1501~6000 rpm and direct drive at 10,000 rpm. Draw bar force is 950 kgf on the small taper and 2,000 kgf on the large one.

The table load is 850 kg (1,874 lb), which is the figure to watch on a table this long. It is the same limit as the LV116, so the longer table buys reach, not capacity. Spindle nose to table is 120-730 mm (4.7-28.7 in).

Rapids of 30 / 30 / 24 m/min, a 24-tool disk magazine and a 300 L coolant tank complete the picture. Floor space is 3,400 x 2,230 mm (133.9 x 87.8 in). If the work needs more Y than 610 mm, the LV137 offers 710 mm (28.0 in) of Y on a heavier base.

Full Specifications

Parameter	Value
Table Size	1,440 x 610 mm (56.7 x 24.0 in)
X Axis Travel	1,270 mm (50.0 in)
Y Axis Travel	610 mm (24.0 in)
Z Axis Travel	610 mm (24.0 in)
Max Table Load	850 kg (1,874 lb)
Distance Spindle Nose to Table	120-730 mm (4.7-28.7 in)
T-Slots	18 x 125 x 5 (Width x Distance x Number mm)
Spindle Bearing Inner Diameter	ISO40: Ø70 mm (Ø2.8 in); ISO50: Ø80 mm (Ø3.1 in)
Spindle Center to Column	675 mm (26.6 in)
Spindle Speed Belt Drive	ISO40: 60 ~ 8,000(10,000/12,000) rpm; ISO50: 60 ~ 8,000 rpm
Spindle Speed Gear Drive	ISO40: L40~2000, H2001~8000 rpm; ISO50: L40~1500, H1501~6000 rpm
Spindle Speed Direct Drive	ISO40: 10,000 / 12,000 / 15,000 rpm; ISO50: 10,000 rpm
Draw Bar Force	ISO40: 950 kgf; ISO50: 2,000 kgf
Spindle Motor Power	ISO40: 7.5 / 11 kW (10.1 / 14.8 hp) (con/30 min); ISO50: 11 / 15 kW (14.8 / 20.1 hp) (con/30 min)
Rapid Traverse Xyz	30 / 30 / 24 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	24
Max Tool Diameter (full magazine)	ISO40: Ø90 mm (Ø3.5 in); ISO50: Ø105 mm (Ø4.1 in)
Max Tool Length	ISO40: 250 mm (9.8 in); ISO50: 300 mm (11.8 in)
Max Tool Weight	ISO40: 8 kg (18 lb); ISO50: 15 kg (33 lb)
Air Requirement	6 kg/cm²
Power Requirement	20 kVA
Coolant Tank Capacity	300 L
Machine Weight	6,800 kg (14,991 lb)
Machine Height	2,950 mm (116.1 in)
Floor Space	3,400 x 2,230 mm (133.9 x 87.8 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

1,270 mm (50.0 in) X travel with a 1,440 x 610 mm (56.7 x 24.0 in) table
ISO50 option with 11 / 15 kW (14.8 / 20.1 hp) and a 2,000 kgf draw bar
ISO40 option with direct-drive speeds of 10,000 / 12,000 / 15,000 rpm
30 / 30 / 24 m/min rapids and a 300 L coolant tank

Limitations

Table load of 850 kg (1,874 lb) is no higher than on the shorter LV116
Y travel of 610 mm (24.0 in) is narrow for a table 1,440 mm long
ISO50 gear head is limited to 6000 rpm in its high range

Best For

Long plates, rails and bars up to 1,270 mm (50.0 in) Several fixtures in a row on one 1,440 mm table Heavier face milling with the ISO50 spindle option

Frequently Asked Questions

01 What is the X travel of the Pinnacle LV126?

X travel is 1,270 mm (50.0 in), with 610 mm (24.0 in) in Y and 610 mm (24.0 in) in Z. The table is 1,440 x 610 mm (56.7 x 24.0 in) and carries 850 kg (1,874 lb).

02 Which spindle tapers are available on the LV126?

ISO40 and ISO50. The ISO40 spindle uses a 7.5 / 11 kW (10.1 / 14.8 hp) motor and can be belt, gear or direct-drive. The ISO50 spindle uses 11 / 15 kW (14.8 / 20.1 hp), with a 60 ~ 8,000 rpm belt drive or a 10,000 rpm direct drive.

03 How heavy is the LV126 and how much room does it take?

The machine weighs 6,800 kg (14,991 lb). Floor space is 3,400 x 2,230 mm (133.9 x 87.8 in), height is 2,950 mm (116.1 in), and it needs a 20 kVA supply with air at 6 kg/cm².

04 When should I pick the LV137 over the LV126?

When the part is wide. The LV137 has 710 mm (28.0 in) of Y against 610 mm here, a 1,200 kg (2,646 lb) table load and a base that Pinnacle describes as having four slideways. The LV137 weighs 10,000 kg (22,046 lb), so it also asks more of the floor.
