Pinnacle Vertical Machining Centers (VMC)

Pinnacle DV1417

Q: How much does the Pinnacle DV1417 cost?

The price estimate for the Pinnacle DV1417 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-dv1417#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

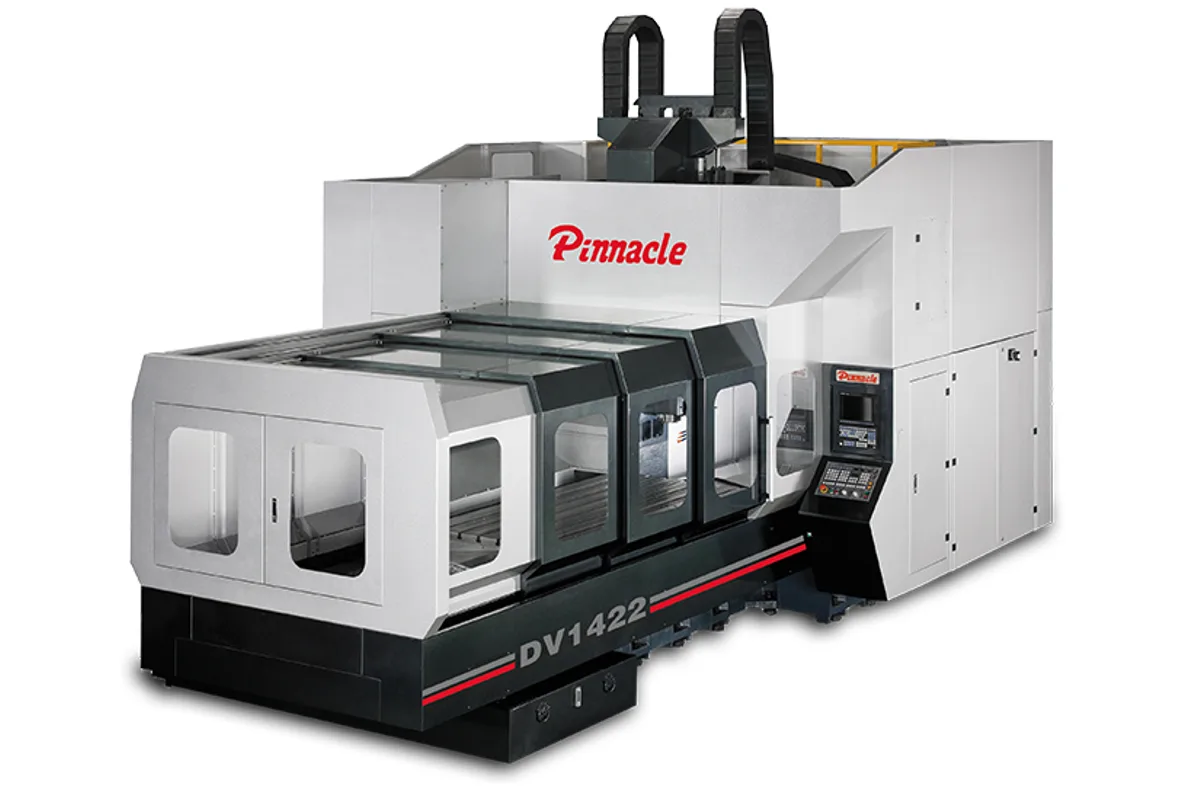

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO50

Tool Capacity

24/32

Table Size

1,700 x 1,200 mm (66.9 x 47.2 in)

Spindle Power

15/18.5 kW (20.1/24.8 hp) (con/30 min)

x axis travel

1,700 mm (66.9 in)

y axis travel

1,400 mm (55.1 in)

How much does the Pinnacle DV1417 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle DV1417 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle DV1417 is the shortest of Pinnacle's DV double column machining centers: 1,700 mm (66.9 in) of X, 1,400 mm (55.1 in) of Y and 900 mm (35.4 in) of Z over a 1,700 x 1,200 mm (66.9 x 47.2 in) table. It is the entry to the range for shops that need a bridge machine's Y travel without a long bed.

Being short has one measurable benefit. The DV1417 is the only DV model listed with 20/20/20 m/min rapids; the DV1422 drops to 16/20/20 m/min as the table grows. It is also the lightest at 15,500 kg (34,171 lb), on a floor space of 5,800 x 4,150 mm (228.3 x 163.4 in).

The spindle follows the DV pattern: ISO50, driven through a gear box, 8,000 rpm in the specification table, with a 15/18.5 kW (20.1/24.8 hp) motor and a 1,800 kgf draw bar. Pinnacle's feature text describes a speed range from 10 to 6,000 rpm for the gear box, so the top speed should be confirmed for the machine quoted. Roller type linear ways carry the X, Y and Z axes.

Table load is printed as 5,000 kg/m2, a rating per square metre and not a total. The standard accessories list includes a chain type 32-tool ATC, two screw type chip conveyors in the base and a Z axis pneumatic balance system. Plan for 50 kVA, a 900 L coolant tank and 4,500 mm (177.2 in) of machine height.

Full Specifications

Parameter	Value
X Axis Travel	1,700 mm (66.9 in)
Y Axis Travel	1,400 mm (55.1 in)
Z Axis Travel	900 mm (35.4 in)
Distance Spindle Nose to Table	160~1,060 mm (6.3~41.7 in)
Spindle Center to Column	404 mm (15.9 in)
Distance Between Columns	1,400 mm (55.1 in)
Table Size	1,700 x 1,200 mm (66.9 x 47.2 in)
T-Slots	22 x 150 x7 (W D x N mm )
Max Table Load	5,000 kg/m2
Spindle Taper	ISO50
Spindle Bearing Inner Diameter	Ø100 mm (Ø3.9 in)
Spindle Speed Gear Drive	8000 rpm
Draw Bar Force	1,800 kgf
Spindle Motor Power	15/18.5 kW (20.1/24.8 hp) (con/30 min)
Rapid Traverse Xyz	20/20/20 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK / Chain
Tool Capacity	24/32
Max Tool Diameter (full magazine)	Ø110/ Ø125(Ø160/ Ø250) mm (Ø4.3/ Ø4.9(Ø6.3/ Ø9.8) in)
Air Requirement	6 kg/cm²
Power Requirement	50 kVA
Coolant Tank Capacity	900 L
Machine Weight	15,500 kg (34,171 lb)
Machine Height	4,500 mm (177.2 in)
Floor Space	5,800 x 4,150 mm (228.3 x 163.4 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Only DV model with 20/20/20 m/min rapids on X, Y and Z
1,400 mm (55.1 in) of Y travel and 900 mm (35.4 in) of Z in a 5,800 x 4,150 mm (228.3 x 163.4 in) floor space
Gear-driven ISO50 spindle with a 15/18.5 kW (20.1/24.8 hp) motor
Chain type 32-tool ATC and two screw type chip conveyors are standard accessories

Limitations

X travel of 1,700 mm (66.9 in) is the shortest in the DV range; the DV1422 has 2,200 mm (86.6 in)
Table load is 5,000 kg/m2, the lowest rating in the range alongside the DV1422
Needs 50 kVA and 4,500 mm (177.2 in) of height for a machine with a 1,700 x 1,200 mm (66.9 x 47.2 in) table
The splash guard is listed as semi-full, not a full enclosure

Best For

Mould bases and plates up to 1,700 x 1,200 mm (66.9 x 47.2 in) Heavy ISO50 roughing in steel and cast iron Shops stepping up from a C-frame machine that need 1,400 mm (55.1 in) of Y

Frequently Asked Questions

01 What are the travels of the Pinnacle DV1417?

X is 1,700 mm (66.9 in), Y is 1,400 mm (55.1 in) and Z is 900 mm (35.4 in). The spindle nose is 160~1,060 mm (6.3~41.7 in) from the table surface and the distance between the columns is 1,400 mm (55.1 in).

02 How does the DV1417 compare with the DV1422?

The DV1422 has 2,200 mm (86.6 in) of X and a 2,200 x 1,200 mm (86.6 x 47.2 in) table, and weighs 16,000 kg (35,273 lb). The DV1417 keeps the same Y, Z, spindle and magazine in a shorter machine of 15,500 kg (34,171 lb) with a faster X rapid, 20 m/min against 16 m/min on the DV1422.

03 What spindle speed does the DV1417 reach?

Pinnacle's specification table gives 8,000 rpm for the gear-driven ISO50 spindle. The feature text on the same page describes a wide spindle speed range from 10 to 6,000 rpm for the gear box. Ask which applies to the build you are quoted. Motor power is 15/18.5 kW (20.1/24.8 hp), continuous and 30 minute rating.

04 What comes standard on the DV1417?

The standard accessories list covers a chain type 32-tool ATC, gear head, spindle oil cooler, air blast through the spindle, rigid tapping, two screw type chip conveyors, a Z axis pneumatic balance system, heat exchanger and a semi-full splash guard. The table lists the magazine as DISK / Chain with 24/32 tools.
