YCM DCV3021B

Q: How much does the YCM DCV3021B cost?

The price estimate for the YCM DCV3021B is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/ycm-dcv3021b#price; the request is passed to YCM or an authorised dealer.

Specs verified 2026-10-05 · ycmcnc.com Updated 2026-10-05

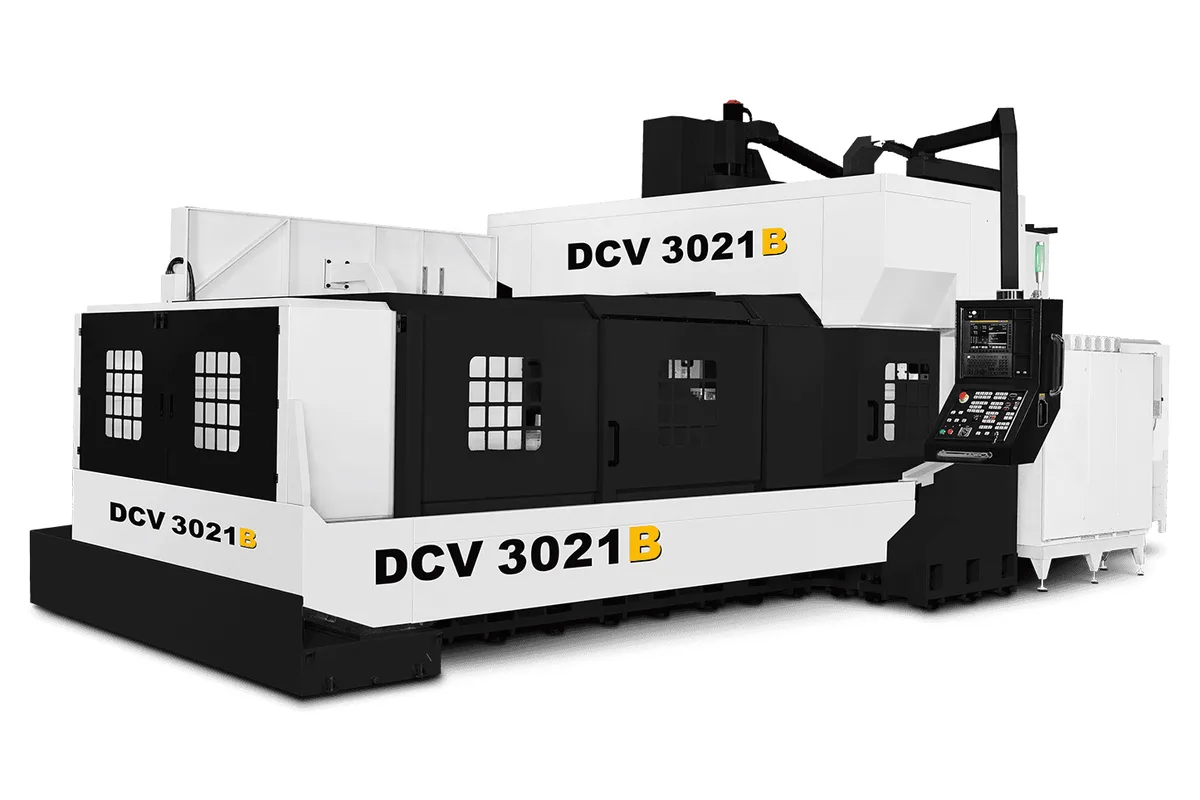

Image: ycmcnc.com, YCM

Key Specifications

Max Spindle

4,500 rpm; opt. 6,000 / 10,000 rpm

Spindle Taper

BBT50

Tool Capacity

40 tools; opt. 60 / 120 tools

Table Size

3,100 x 2,000 mm (122.05 x 78.74 in)

Spindle Power

25 kW (33.5 hp); opt. 25/45 kW (33.5/60 hp)

x axis travel

3,060 mm (120.47 in)

How much does the YCM DCV3021B cost?

Price estimate

Uncertain

We do not have a price for the YCM DCV3021B that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The YCM DCV3021B opens the heavy half of the DCV range. Its columns stand 2,320 mm apart, Y travel is 2,100 mm, and the 3,100 x 2,000 mm table takes 15,000 kg. X travel is 3,060 mm.

More changes than the width. The machine weighs 41,000 kg, ten tonnes more than the DCV3016B with the same X travel, and YCM lists a different structure for it. The X axis rides on 3 roller type guideways with 12 slider blocks to carry the load, and is moved by a direct drive gearbox. Three more roller guideways on Y support the saddle and headstock. The columns have widened bases with boots so that the headstock cannot lean forward, and the Z slide is lined with Turcite-B for damping.

A table two metres deep takes parts that are closer to square: large mold bases, die shoes for big presses, turbine casings, bases for presses and injection machines. T-slots are 28 mm wide on a 200 mm pitch, the size used for heavy strap clamps.

All three axes rapid at 15 m/min. The spindle is the geared 4,500 rpm BBT50 unit with 25 kW; 6,000 or 10,000 rpm and 45 kW can be ordered. Z travel is 762 mm, with 1,016 mm as the option, and the page also gives a spindle nose to table range for a column raised by 250 mm. The magazine holds 40 tools, or 60 or 120.

Full Specifications

Parameter	Value
Max Spindle Speed	4,500 rpm; opt. 6,000 / 10,000 rpm
Spindle Motor Power	25 kW (33.5 hp); opt. 25/45 kW (33.5/60 hp)
Spindle Taper	BBT50
X Axis Travel	3,060 mm (120.47 in)
Y Axis Travel	2,100 mm (82.68 in)
Z Axis Travel	762 mm (30 in); opt. 1,016 mm (40 in)
Distance Spindle Nose to Table	200~962 (450~1,212 [ Raised Column 250] / 200~1,216 [ Z-axis Travel 1,016]) mm
Distance Between Columns	2,320 mm (91.34 in)
Table Size	3,100 x 2,000 mm (122.05 x 78.74 in)
T-Slots	9 x 28 x 200 mm (9 x 1.1 x 7.87 in)
Max Table Load	15,000 kg (33,069 lb)
Rapid Traverse Xyz	15/15/15 m/min (591/591/591 ipm)
Cutting Feed Rate	1~10,000 mm/min (0.04~394 ipm)
Tool Capacity	40 tools; opt. 60 / 120 tools
Max Tool Weight	20 kg (44.1 lb)
Max Tool Size	ø125 x 350 mm (ø4.92 x 13.78 in); without adjacent tools ø240 x 350 mm (ø9.45 x 13.78 in)
Machine Weight	41,000 kg (90,389 lb)

Specifications sourced from ycmcnc.com — verified 2026-10-05

Strengths & Limitations

Strengths

15,000 kg table load on a 3,100 x 2,000 mm table
2,100 mm of Y travel with 2,320 mm between columns
X axis on 3 roller type guideways with 12 slider blocks
Column bases widened with boots to stop the headstock leaning
28 mm T-slots on a 200 mm pitch for heavy clamping

Limitations

Rapid traverse is 15 m/min on every axis
The machine weighs 41,000 kg
Standard spindle is 4,500 rpm with 25 kW
Standard Z travel is 762 mm

Best For

Large, near-square mold bases and die shoes Castings and weldments up to 15,000 kg Heavy roughing of steel with the geared 50-taper spindle

Frequently Asked Questions

01 How wide a workpiece fits the DCV3021B?

The distance between columns is 2,320 mm and Y travel is 2,100 mm. The table is 3,100 x 2,000 mm. The DCV3016B, the narrower machine with the same X travel, has 1,820 mm between columns.

02 How much can the table carry?

15,000 kg. YCM equips the X axis with 3 roller type guideways and 12 slider blocks for load capacity, and drives it through a direct drive gearbox. T-slots are listed as 9 x 28 x 200 mm.

03 What are the spindle options?

Standard is 4,500 rpm with 25 kW on a BBT50 taper, through a 2-step gear transmission. The options column lists 6,000 and 10,000 rpm and 45 kW. Tools can weigh up to 20 kg.

04 Is there a wider model with the same X travel?

Yes. The DCV3025B has 2,500 mm of Y travel, 2,720 mm between columns and a 3,100 x 2,400 mm table with the same 15,000 kg rating. The DCV3025B weighs 44,000 kg against 41,000 kg here.
