Vision Wide Vertical Machining Centers (VMC)

Vision Wide HF-10040 / HF-10047

Q: How much does the Vision Wide HF-10040 / HF-10047 cost?

The price estimate for the Vision Wide HF-10040 / HF-10047 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/vision-wide-hf-10040-hf-10047#price; the request is passed to Vision Wide or an authorised dealer.

Specs verified 2026-10-04 · visionwide-tech.com Updated 2026-10-04

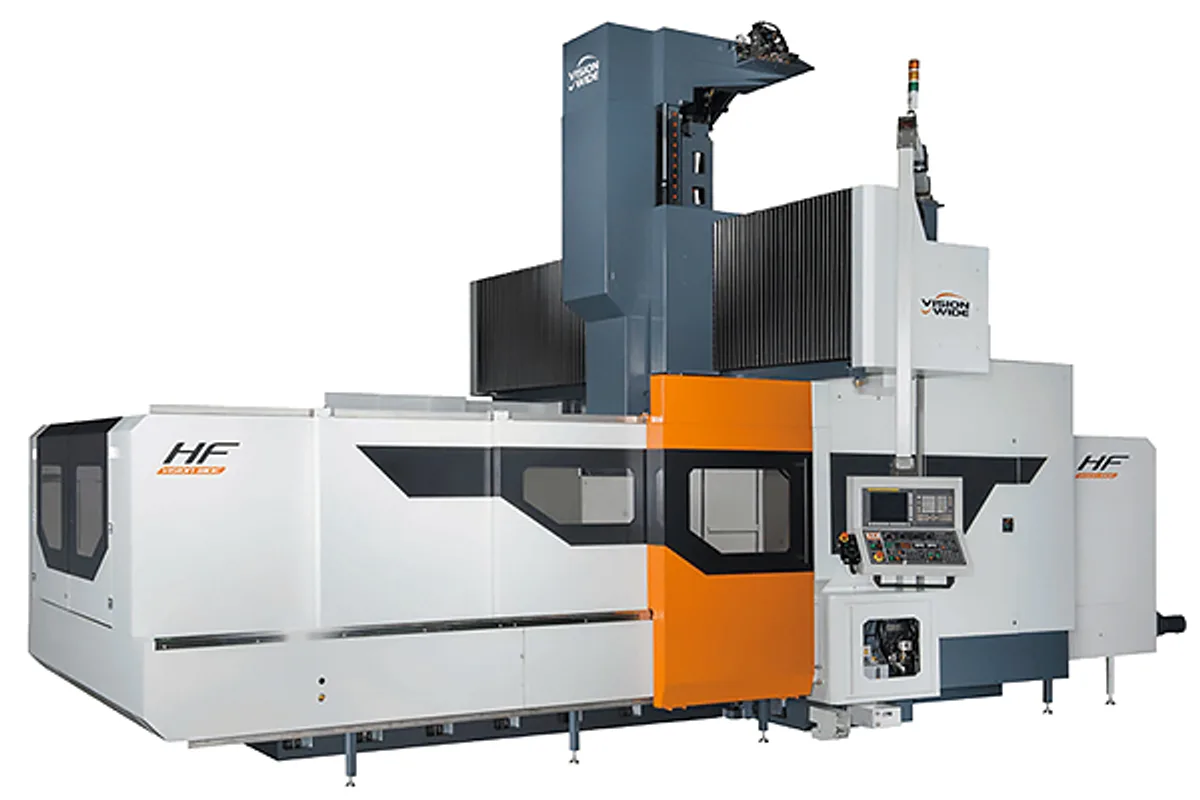

Image: visionwide-tech.com, Vision Wide

Key Specifications

Table Size

10,000×3,500 mm (393.7×137.8 in)

x axis travel

10,100 mm (397.6 in)

y axis travel

4,000/ 4,700 mm (157.5/ 185.0 in)

z axis travel box way single ballscrew

920 / 1,020 mm (36.2 / 40.2 in)(Opt.)

z axis travel linear way enclosed box ram dual ballscrews

1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)

max table load

36,000 kg (79,365 lb)

How much does the Vision Wide HF-10040 / HF-10047 cost?

Price estimate

Uncertain

We do not have a price for the Vision Wide HF-10040 / HF-10047 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Vision Wide HF-10040 / HF-10047 is the largest HF: a 10,000×3,500 mm (393.7×137.8 in) table, 10,100 mm (397.6 in) of X travel, and 4,000 mm (157.5 in) of Y on the HF-10040 or 4,700 mm (185.0 in) on the HF-10047. Table load is 36,000 kg (79,365 lb).

Buyers at this size should also read the page for the HF-10047M. The HF-10047M has the same table, the same load and 4,700 mm of Y, but its Z travel is 1,500 mm (59.1 in). On the HF-10040 / HF-10047, Z starts at 920 mm and reaches 1,400 mm only with the optional dual-ballscrew heads. So the two lines divide by part height: the HF for long, wide and relatively low work, the M version for the same plan area with more depth.

Everything about the machine is governed by its mass. The X/Y rapid is 8 m/min and cutting feed is 1-7,000 mm/min, with a 15 m/min Z rapid on the standard head.

Five-face machining is automatic, using a 90º head, an extension head and a universal head with their own tool change. Standard spindle power is 22/26 kW (29.5/34.9 hp) on a 4,000 rpm gear spindle.

Full Specifications

Parameter	Value
X Axis Travel	10,100 mm (397.6 in)
Y Axis Travel	4,000/ 4,700 mm (157.5/ 185.0 in)
Z Axis Travel Box Way Single Ballscrew	920 / 1,020 mm (36.2 / 40.2 in)(Opt.)
Z Axis Travel Linear Way Enclosed Box Ram Dual Ballscrews	1,000 mm (39.4 in)(Opt.) / 1,200 mm (47.2 in)(Opt.) / 1,400 mm (55.1 in)(Opt.)
Table Size	10,000×3,500 mm (393.7×137.8 in)
Max Table Load	36,000 kg (79,365 lb)
Spindle Power Cont 30 Min	22/26 kW (29.5/34.9 hp)(30/37 kW (40.2/49.6 hp) Opt.)
Spindle Speed Box Way 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram 2 Step Gear	4,000 / 6,000 rpm(Opt.)
Spindle Speed Linear Way Enclosed Box Ram Direct Driven	10,000 rpm(Opt.)
Cutting Feed Rate	1-7,000 mm/min
Rapid Traverse Xy	8 m/min
Rapid Traverse Z Box Way or Linear Way	15 m/min
Rapid Traverse Z Enclosed Box Ram	12 m/min
Tool Capacity Vertical Tool Change	32 / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)
Tool Capacity Floor Standing Vertical Horizontal Tool Change	32 pcs(Opt.) / 40 pcs (Opt.) / 60 pcs (Opt.)

Specifications sourced from visionwide-tech.com — verified 2026-10-04

Strengths & Limitations

Strengths

Largest HF table at 10,000×3,500 mm (393.7×137.8 in)
36,000 kg (79,365 lb) table load
Y travel of up to 4,700 mm (185.0 in) on the HF-10047
Automatic head change with 90º, extension and universal heads

Limitations

Z travel is at most 1,400 mm, and only with optional heads
X/Y rapid of 8 m/min and cutting feed of 1-7,000 mm/min
Standard spindle speed is 4,000 rpm

Best For

The longest and widest parts in the HF range Low, heavy structures up to 36,000 kg (79,365 lb) Single-clamping five-face machining of ten-metre parts

Frequently Asked Questions

01 What is the largest Vision Wide HF model?

The HF-10040 / HF-10047, with a 10,000×3,500 mm (393.7×137.8 in) table, 10,100 mm (397.6 in) of X travel, 4,000/ 4,700 mm (157.5/ 185.0 in) of Y and a 36,000 kg (79,365 lb) load rating.

02 How does the HF-10047 differ from the HF-10047M?

Both have a 10,000×3,500 mm (393.7×137.8 in) table and 4,700 mm (185.0 in) of Y. The HF-10047M lists 1,500 mm (59.1 in) of Z travel; the HF-10047 has 920 mm standard and up to 1,400 mm with optional heads.

03 What Z travel does the HF-10040 / HF-10047 have?

920 mm on the standard box way head, or 1,020 mm as an option. The linear way and enclosed box ram heads on dual ballscrews are listed at 1,000 mm, 1,200 mm and 1,400 mm, all optional.

04 How fast are the axes on the HF-10040?

X/Y rapid is 8 m/min. Z rapid is 15 m/min with the box way or linear way head and 12 m/min with the enclosed box ram. Cutting feed is 1-7,000 mm/min.
