Pinnacle Vertical Machining Centers (VMC)

Pinnacle LV85

Q: How much does the Pinnacle LV85 cost?

The price estimate for the Pinnacle LV85 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-lv85#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

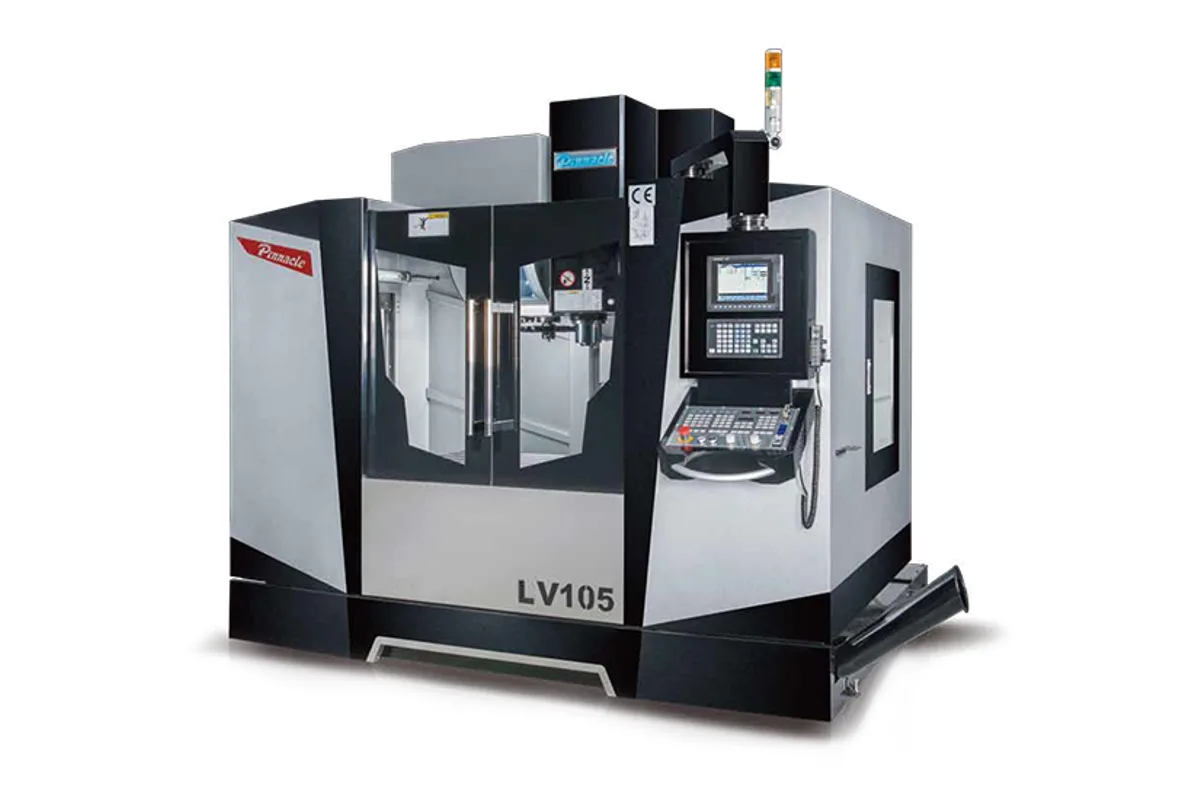

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Spindle Taper

ISO40

Tool Capacity

Table Size

1,000 x 510 mm (39.4 x 20.1 in)

Spindle Power

5.5 / 7.5 kW (7.4 / 10.1 hp) (con/30 min)

x axis travel

850 mm (33.5 in)

y axis travel

560 mm (22.0 in)

How much does the Pinnacle LV85 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle LV85 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle LV85 is the smallest of the linear-way LV vertical machining centers: 850 mm (33.5 in) of X travel, 560 mm (22.0 in) in Y and Z, and an ISO40 spindle driven by a 5.5 / 7.5 kW (7.4 / 10.1 hp) motor. The table measures 1,000 x 510 mm (39.4 x 20.1 in) and carries 600 kg (1,323 lb).

Pinnacle's table gives three ways to drive the spindle. The belt version runs 60 ~ 8,000(10,000/12,000) rpm, a two-range gear head covers the same 8,000 rpm ceiling with a low range for torque, and direct-drive spindles are listed at 10,000 / 12,000 / 15,000 rpm. Which of these a given machine has is decided at order, so the headline speed on a quotation needs checking against the work.

All three axes run on linear guideways, 35mm wide on this size, with 36mm class C3 ball screws. Rapids are 36 / 36 / 24 m/min and the cutting feed tops out at 10,000 mm/min. The magazine row shows a 24-tool disk with tools up to Ø90 mm (Ø3.5 in).

At 5,500 kg (12,125 lb) on a 2,600 x 2,230 mm (102.4 x 87.8 in) floor space with a 20 kVA supply, it is a machine for shops that are short on room. The LV105 on the same page stretches X to 1,020 mm (40.2 in) and steps the motor up to 7.5 / 11 kW (10.1 / 14.8 hp), so the LV85 makes sense when parts fit inside 850 mm and the lighter motor is enough.

Full Specifications

Parameter	Value
Table Size	1,000 x 510 mm (39.4 x 20.1 in)
X Axis Travel	850 mm (33.5 in)
Y Axis Travel	560 mm (22.0 in)
Z Axis Travel	560 mm (22.0 in)
Max Table Load	600 kg (1,323 lb)
Distance Spindle Nose to Table	100 ~ 660 mm (3.9 ~ 26.0 in)
T-Slots	18 x 100 x 5 (Width x Distance x Number mm)
Spindle Taper	ISO40
Spindle Bearing Inner Diameter	Ø60 mm (Ø2.4 in)
Spindle Center to Column	620 mm (24.4 in)
Spindle Speed Belt Drive	60 ~ 8,000(10,000/12,000) rpm
Spindle Speed Gear Drive	L40 ~ 2000, H2001 ~ 8000 rpm
Spindle Speed Direct Drive	10,000 / 12,000 / 15,000 rpm
Draw Bar Force	700 kgf
Spindle Motor Power	5.5 / 7.5 kW (7.4 / 10.1 hp) (con/30 min)
Rapid Traverse Xyz	36 / 36 / 24 m/min
Cutting Feed Rate	10,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	24
Max Tool Diameter (full magazine)	Ø90 mm (Ø3.5 in)
Air Requirement	6 kg/cm²
Power Requirement	20 kVA
Coolant Tank Capacity	200 L
Machine Weight	5,500 kg (12,125 lb)
Machine Height	2,750 mm (108.3 in)
Floor Space	2,600 x 2,230 mm (102.4 x 87.8 in) (L x W)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Compact footprint: 2,600 x 2,230 mm (102.4 x 87.8 in) floor space and a 20 kVA power requirement
Spindle can be ordered belt-driven, gear-driven or direct-drive, the last listed at 10,000 / 12,000 / 15,000 rpm
Rapids of 36 / 36 / 24 m/min on linear guideways in all three axes
Controls from five makers are listed, including MITSUBISHI M80 / M830 and FANUC 0i-MF / 31i-MB

Limitations

The 5.5 / 7.5 kW (7.4 / 10.1 hp) motor is the smallest in the LV85/LV105 pair, which limits heavy roughing
Coolant through spindle, the 20 bar pump and the chip conveyor are all marked as options
Table load stops at 600 kg (1,323 lb), so heavy fixtures plus a fourth axis need adding up first

Best For

Small and medium parts inside 850 mm (33.5 in) of X travel Job shops with limited floor space and a 20 kVA supply Aluminium and light steel work on an ISO40 spindle

Frequently Asked Questions

01 What are the travels of the Pinnacle LV85?

X is 850 mm (33.5 in), Y is 560 mm (22.0 in) and Z is 560 mm (22.0 in). The table is 1,000 x 510 mm (39.4 x 20.1 in) and the spindle nose sits 100 ~ 660 mm (3.9 ~ 26.0 in) above it.

02 Which spindle speeds can the LV85 be built with?

Pinnacle lists a belt-driven spindle at 60 ~ 8,000(10,000/12,000) rpm, a gear-driven one with low and high ranges up to 8,000 rpm, and direct-drive spindles at 10,000 / 12,000 / 15,000 rpm. The taper is ISO40 in every case and the motor is 5.5 / 7.5 kW (7.4 / 10.1 hp).

03 How does the LV85 differ from the LV105?

The LV105 has 1,020 mm (40.2 in) of X travel on a 1,200 x 510 mm (47.2 x 20.1 in) table and a 7.5 / 11 kW (10.1 / 14.8 hp) motor. Y, Z, the 600 kg table load and the 24-tool magazine are the same on both, and the LV85 is the lighter machine at 5,500 kg (12,125 lb).

04 Which CNC controls are offered on the LV85?
