Pinnacle AX260

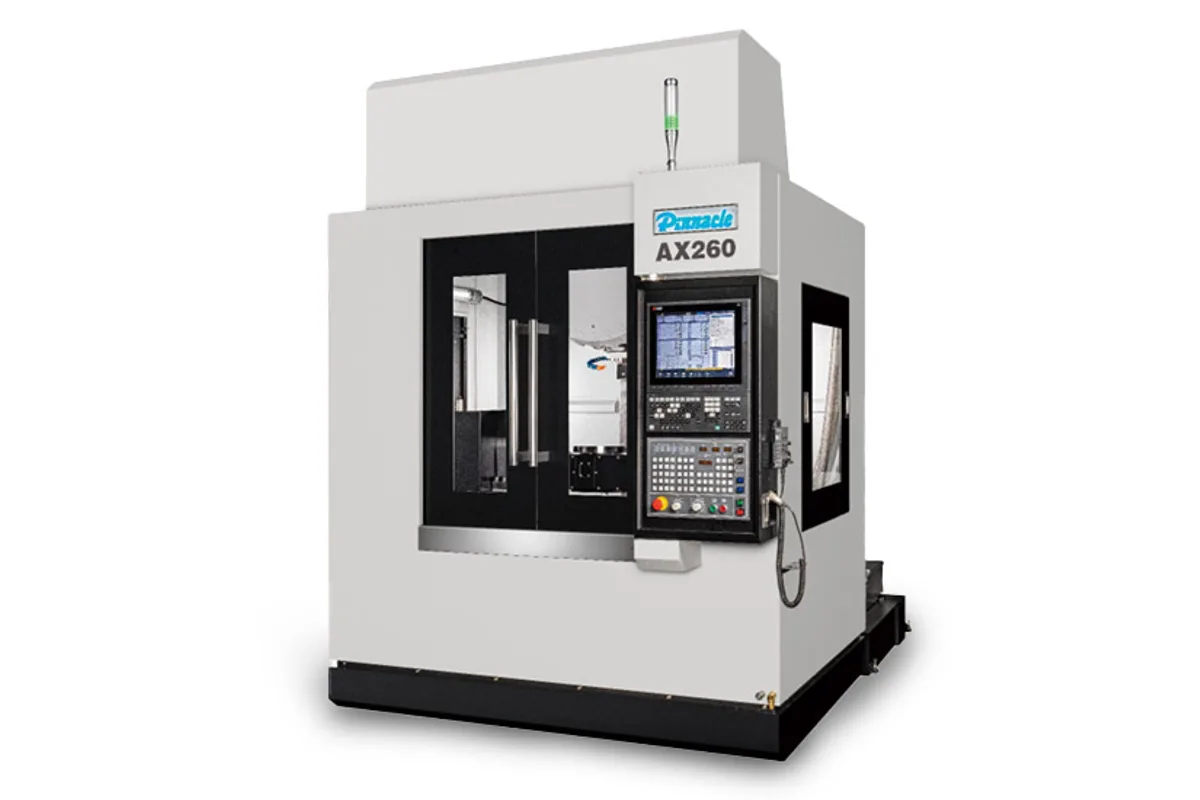

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Pinnacle AX260 cost?
Price estimate
We do not have a price for the Pinnacle AX260 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle AX260 is a compact 5-axis machining center built around a BBT30 spindle and a Ø260 mm (Ø10.2 in) trunnion table. Travels are 510 mm (20.1 in) in X, 455 mm (17.9 in) in Y and 380 mm (15.0 in) in Z, and it is the fastest AX model in a straight line at 48 / 48 / 48 m/min.
A 30-taper spindle sets its character. It turns 15,000 (20,000) rpm on a 5.5 / 7.5 kW (7.4 / 10.1 hp) motor and changes tools from a 30-pocket magazine, but each tool may weigh no more than 3 kg (7 lb). That is a drill-tap style package applied to 5-sided and 5-axis parts in aluminium and other light alloys.
The table tilts 150° (-30°/+120°) and rotates 360°, driven by roller cam instead of the DD motors used on the AX170. Speeds are 26.3 rpm on A and 84.3 rpm on C. Rotary accuracy is quoted as 15" / 10" with the encoder option, and the rotary encoders appear in the optional accessories list, so the base machine positions the table without them.
Workpieces up to Ø500 x 300 mm (Ø19.7 x 11.8 in) and 100 kg (220 lb) fit. The machine weighs 4,000 kg (8,818 lb) and measures 2,100 x 2,580 x 3,032 mm (82.7 x 101.6 x 119.4 in).
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | Ø260 mm (Ø10.2 in) |
| X Axis Travel | 510 mm (20.1 in) |
| Y Axis Travel | 455 mm (17.9 in) |
| Z Axis Travel | 380 mm (15.0 in) |
| Distance Spindle Nose to Table | 80~460 mm (3.1~18.1 in) |
| Max Table Load | 100 kg (220 lb) |
| Max Workpiece Size | Ø500 x 300 mm (Ø19.7 x 11.8 in) |
| Table Bore Diameter | Ø40 mm (Ø1.6 in) |
| A Axis Range | 150° (-30°/+120°) |
| C Axis Range | 360° |
| A Axis Speed | 26.3 rpm |
| C Axis Speed | 84.3 rpm |
| T-Slots | 12 x 90° x 4 |
| Spindle Taper | BBT30 |
| Max Spindle Speed | 15,000 (20,000) rpm |
| Spindle Base Speed | 1,500 rpm |
| Spindle Motor Power | 5.5 / 7.5 kW (7.4 / 10.1 hp) (con/30 min) |
| Spindle Drive | Direct |
| Spindle Bearing Inner Diameter | Ø40 mm (Ø1.6 in) |
| Rapid Traverse Xyz | 48 / 48 / 48 m/min |
| Cutting Feed Rate | 20,000 mm/min |
| Tool Magazine Type | TP TYPE |
| Tool Capacity | 30 |
| Max Tool Diameter (full magazine) | Ø100 mm (Ø3.9 in) |
| Max Tool Length | 250 mm (9.8 in) |
| Max Tool Weight | 3 kg (7 lb) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 15" / 10" (Encoder-opt.) (A/C(arc-sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 10"/8" (Encoder-opt.) (A/C(arc-sec)) |
| Machine Dimensions | 2,100 x 2,580 x 3,032 mm (82.7 x 101.6 x 119.4 in) |
| Machine Weight | 4,000 kg (8,818 lb) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- 48 / 48 / 48 m/min rapids, the highest in the AX range
- 30-tool magazine on a BBT30 spindle of 15,000 (20,000) rpm
- Takes workpieces up to Ø500 x 300 mm (Ø19.7 x 11.8 in)
- Roller cam drive on both rotary axes
Limitations
- Tools are limited to 3 kg (7 lb), which rules out large cutters
- A-axis and C-axis rotary encoders are optional accessories
- Z travel is 380 mm (15.0 in), short for tall parts on a tilted table
Best For
Frequently Asked Questions
01
BBT30. Maximum speed is listed as 15,000 (20,000) rpm with a base speed of 1,500 rpm, and the motor is 5.5 / 7.5 kW (7.4 / 10.1 hp). The spindle is a direct type with a Ø40 mm (Ø1.6 in) bearing bore.
02
The A axis tilts 150° (-30°/+120°) and the C axis rotates 360°. Maximum speeds are 26.3 rpm for A and 84.3 rpm for C. Pinnacle states that rotation and tilting are driven by roller cam.
03
Positioning accuracy on A/C is given as 15" / 10" and repeatability as 10"/8", both marked as applying with the encoder option. On X, Y and Z the table gives 0.005 mm positioning and 0.003 mm repeatability.
04
The standard accessories list includes the 30-tool arm-type ATC, spindle oil cooler, full splash guard, telescopic covers and auto lubrication. Coolant through spindle, tool and workpiece measurement and the rotary encoders are in the optional list.
