Pinnacle BX900T

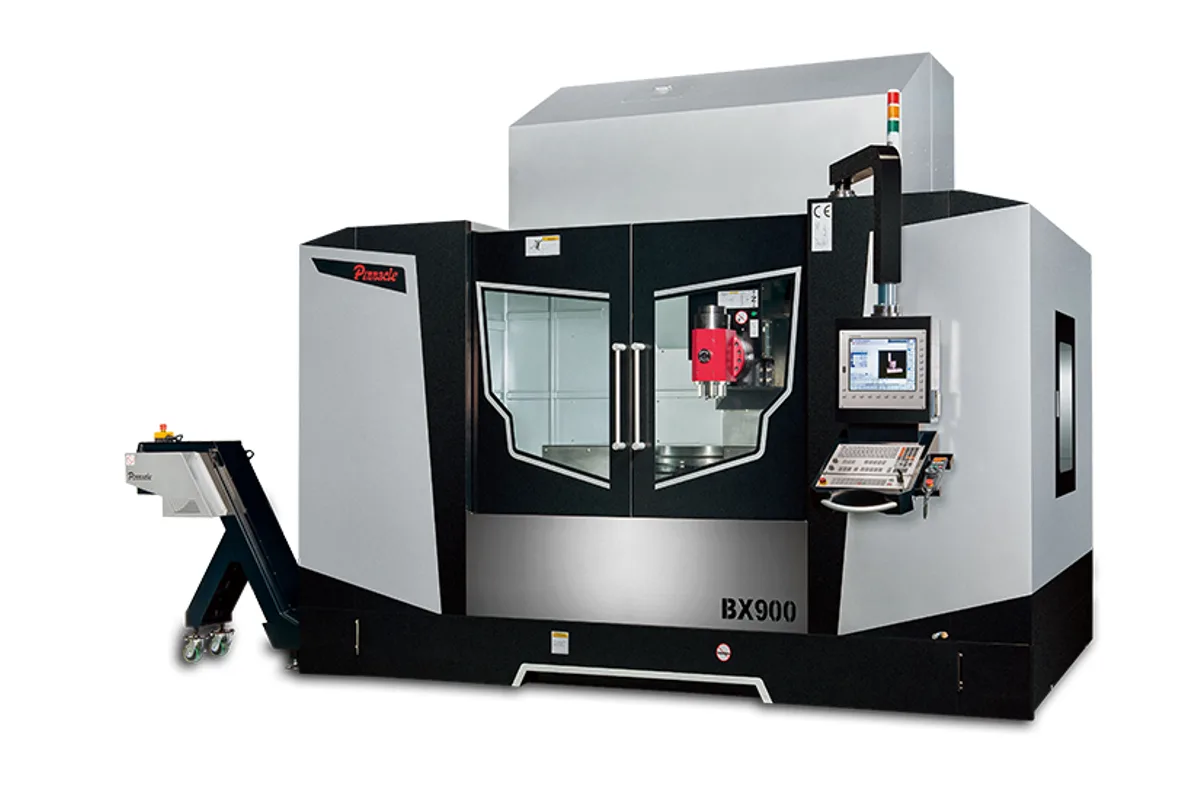

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Pinnacle BX900T cost?
Price estimate
We do not have a price for the Pinnacle BX900T that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle BX900T is the mill-turn version of the BX900 platform. The Ø800 mm (Ø31.5 in) table is listed at 50(Mill) / 800(Turn) rpm and the built-in spindle takes HSK63T tooling.
Compared with the BX700T, the turning speed is lower, 800 against 1,200, as expected of a larger table, and the linear envelope is bigger: 1,500 mm (59.1 in) of X, 900 mm (35.4 in) of Y and Z of Vertical 1,000 / Horizontal 1,100 mm. Large rings, casings and discs that need turned diameters plus milled or drilled features are the obvious work.
Table load is 800(Mill) / 500(Turn) kg. That figure is lower than the 1,200 kg (2,646 lb) of the milling-only BX900, so heavy 5-axis milling jobs belong on the other variants.
The spindle is rated 19/23 kW (25.5/30.8 hp) and 93/239 Nm (68.6/176.3 lb-ft) at up to 15,000 rpm, with an 1,800±100 kgf draw bar. The spindle centre is 970 mm (38.2 in) from the column. Both rotary axes are direct drive, and rotary accuracy is 10"/10". Rapids are 20/20/16 m/min. The machine weighs 15,000 kg (33,069 lb) and occupies 4,450x4,340 mm (175.2x170.9 in).
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,700x850 mm (66.9x33.5 in) |
| X Axis Travel | 1,500 mm (59.1 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | Vertical 1,000 / Horizontal 1,100 mm (Vertical 39.4 / Horizontal 43.3 in) |
| Max Table Load | 1,200 kg (2,646 lb) |
| T-Slots | 18x150x5 (W x D x N mm) |
| Spindle Taper | HSK63T |
| Spindle Bearing Inner Diameter | Ø 70 mm (Ø 2.8 in) |
| Spindle Center to Column | 970 mm (38.2 in) |
| Max Spindle Speed | 15,000 rpm |
| Draw Bar Force | 1,800±100 kgf |
| Spindle Motor Power | 19/23 kW (25.5/30.8 hp) (con/S6 60%) |
| Spindle Torque | 93/239 Nm (68.6/176.3 lb-ft) (con/max) |
| B Axis Drive | Direct drive |
| B Axis Range | ±120° |
| B Axis Speed | 50 rpm |
| B Axis Clamp Torque | 2,950 Nm (2,175.9 lb-ft) |
| Rotary Table Type | EMBEDDED |
| Rotary Table Drive Type | Direct drive |
| Rotary Table Diameter | Ø800 mm (Ø31.5 in) |
| C Axis Speed | 50(Mill) / 800(Turn) rpm |
| Rotary Table Load | 800(Mill) / 500(Turn) kg (1,764(Mill) / 1,102(Turn) lb) |
| Rapid Traverse Xyz | 20/20/16 m/min |
| Cutting Feed Rate | 10,000 mm/min |
| Tool Magazine Type | PLATE |
| Tool Capacity | 30(60) |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3.0 in) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 10"/10" (B/C rotary axis(sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 6"/6" (B/C rotary axis(sec)) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 50 kVA |
| Coolant Tank Capacity | 700 L |
| Machine Weight | 15,000 kg (33,069 lb) |
| Machine Height | 3,450 mm (135.8 in) |
| Floor Space | 4,450x4,340 mm (175.2x170.9 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Turning on the Ø800 mm (Ø31.5 in) table at up to 800 rpm
- HSK63T spindle with 19/23 kW (25.5/30.8 hp) and 93/239 Nm (68.6/176.3 lb-ft)
- Large envelope: 1,500 mm (59.1 in) by 900 mm (35.4 in)
- Direct-drive B and C axes with 10"/10" rotary accuracy
Limitations
- Table load is 800(Mill) / 500(Turn) kg, below the 1,200 kg (2,646 lb) of the BX900
- Turning speed is lower than the 1,200 rpm of the smaller BX700T table
- 50 kVA supply and a 4,450x4,340 mm (175.2x170.9 in) footprint
Best For
Frequently Asked Questions
01
The rotary table rotation speed is listed as 50(Mill) / 800(Turn) rpm. The table is Ø800 mm (Ø31.5 in), embedded and direct driven.
02
800(Mill) / 500(Turn) kg according to the rotary table row. The surrounding main table, 1,700x850 mm (66.9x33.5 in), is listed at 1,200 kg (2,646 lb).
03
HSK63T. The built-in spindle runs to 15,000 rpm with a 19/23 kW (25.5/30.8 hp) motor, 93/239 Nm (68.6/176.3 lb-ft) of torque and a draw bar force of 1,800±100 kgf.
04
The BX700T has a Ø640 mm (Ø25.2 in) table at 50(M) / 1,200(T) rpm, 1,400 mm (55.1 in) of X and weighs 12,000 kg (26,455 lb). The BX900T is the larger machine with the slower turning table.
