Pinnacle BX700A

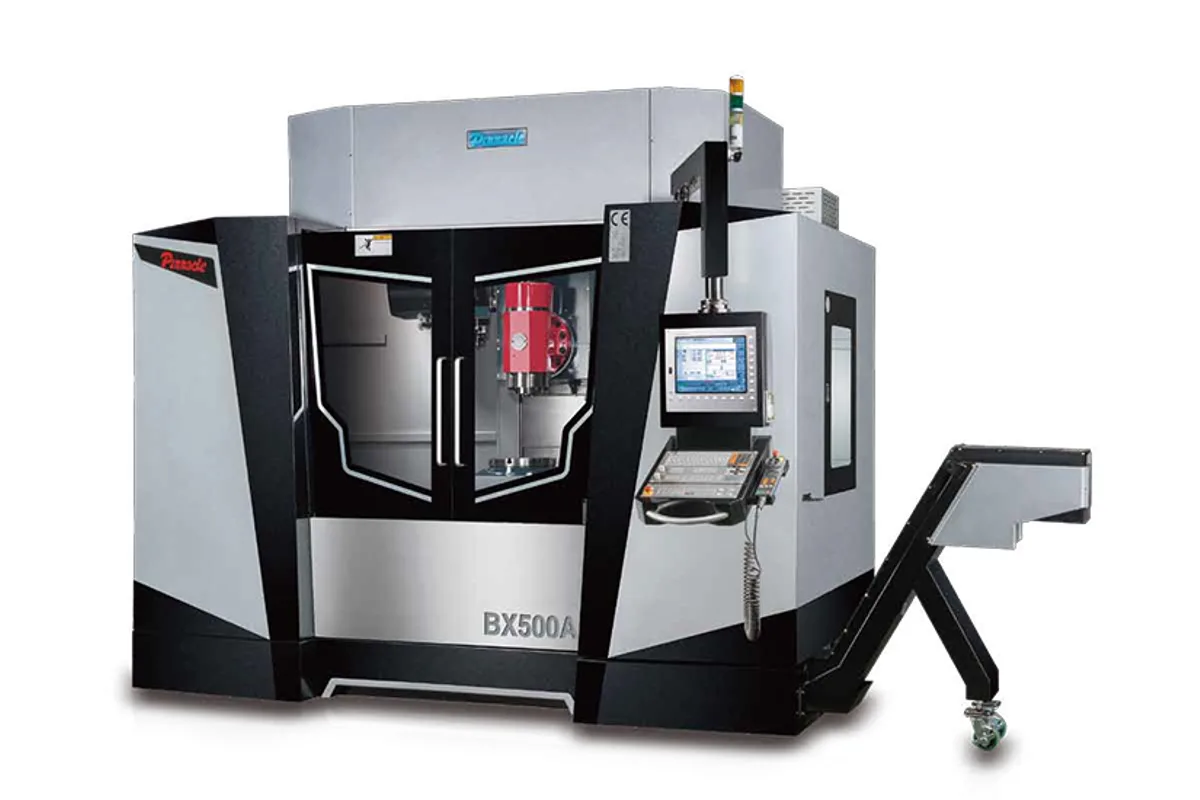

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Pinnacle BX700A cost?
Price estimate
We do not have a price for the Pinnacle BX700A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle BX700A is the heavy member of the BX A group, a swivel-head machine weighing 11,000 kg (24,250 lb) with a Ø 630 mm (Ø 24.8 in) separate rotary table. Travels are 1,400 mm (55.1 in), 710 mm (28.0 in) and 810 mm (31.9 in).
Nearly everything is scaled up from the BX500A. The fixed table grows to 1,600 x 700 mm (63.0 x 27.6 in) with a 1,000 kg (2,205 lb) rating, the rotary table takes 800 kg (1,764 lb), and the B-axis clamp torque rises to 1,765 Nm (1,301.9 lb-ft). The head itself turns more slowly, 16.6 rpm.
The spindle motor also changes. It is listed at 15 / 19.4 kW (20.1 / 26.0 hp) with a 900 ± 100 kgf draw bar, still at 15,000 rpm and DIN40 (HSKA63). Rapids stay at 36 / 36 / 24 m/min, which is brisk for a machine of this weight.
Because the rotary table is a separate, worm-gear unit, rotary accuracy is 14"/14" and the table speed 11.1 rpm. Buyers who want the same envelope with a built-in direct-drive table should look at the BX700. The BX700A makes its case when large three-axis and four-axis jobs share the machine with 5-axis ones. It needs 3,890 x 3,180 mm (153.1 x 125.2 in) of floor and has a 450 L coolant tank.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,600 x 700 mm (63.0 x 27.6 in) |
| X Axis Travel | 1,400 mm (55.1 in) |
| Y Axis Travel | 710 mm (28.0 in) |
| Z Axis Travel | 810 mm (31.9 in) |
| Max Table Load | 1,000 kg (2,205 lb) |
| Distance Spindle Nose to Table Vertical | 180 ~ 990 mm (7.1 ~ 39.0 in) |
| Distance Spindle Center to Table Horizontal | 420~1,230 mm (16.5~48.4 in) |
| T-Slots | 18 x 125 x 5 (Width x Distance x Number mm) |
| Spindle Taper | DIN40 (HSKA63) |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Center to Column | 760 mm (29.9 in) |
| Max Spindle Speed | 15,000 rpm |
| Draw Bar Force | 900 ± 100 kgf |
| Spindle Motor Power | 15 / 19.4 kW (20.1 / 26.0 hp) (con/30 min) |
| B Axis Drive | WORM GEAR |
| B Axis Range | ± 120° |
| B Axis Speed | 16.6 rpm |
| B Axis Clamp Torque | 1,765 Nm (1,301.9 lb-ft) |
| Rotary Table Drive Type | SEPARATED |
| Rotary Table Type | WORM GEAR |
| Rotary Table Diameter | Ø 630 mm (Ø 24.8 in) |
| C Axis Speed | 11.1 rpm |
| Rotary Table Load | 800 kg (1,764 lb) |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min |
| Cutting Feed Rate | 10,000 mm/min |
| Tool Magazine Type | PLATE |
| Tool Capacity | 30 (40, 60) |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3.0 in) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 14"/14" (BC rotary (sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 8"/8" (BC rotary (sec)) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 450 L |
| Machine Weight | 11,000 kg (24,250 lb) |
| Machine Height | 3,200 mm (126.0 in) |
| Floor Space | 3,890 x 3,180 mm (153.1 x 125.2 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø 630 mm (Ø 24.8 in) rotary table rated for 800 kg (1,764 lb)
- 1,600 x 700 mm (63.0 x 27.6 in) fixed table with a 1,000 kg (2,205 lb) rating
- B-axis clamp torque of 1,765 Nm (1,301.9 lb-ft)
- 15 / 19.4 kW (20.1 / 26.0 hp) built-in spindle at 15,000 rpm
Limitations
- B axis turns at 16.6 rpm and the rotary table at 11.1 rpm
- Weighs 11,000 kg (24,250 lb) and occupies 3,890 x 3,180 mm (153.1 x 125.2 in)
- Rotary positioning accuracy is 14"/14"
Best For
Frequently Asked Questions
01
The rotary table is rated for 800 kg (1,764 lb) and is Ø 630 mm (Ø 24.8 in) in diameter. The fixed table beneath it is 1,600 x 700 mm (63.0 x 27.6 in) and takes 1,000 kg (2,205 lb).
02
The BX700 has an embedded direct-drive Ø640 mm (Ø25.2 in) table at 50 rpm, weighs 12,000 kg (26,455 lb) and lists separate vertical and horizontal Z travels. The BX700A uses a separate worm-gear table that Pinnacle says can be removed.
03
Built-in spindle, 15,000 rpm, 15 / 19.4 kW (20.1 / 26.0 hp), DIN40 (HSKA63) taper, Ø70 mm (Ø2.8 in) bearing bore and a draw bar force of 900 ± 100 kgf.
04
Floor space is 3,890 x 3,180 mm (153.1 x 125.2 in) and machine height 3,200 mm (126.0 in). Supply is 40 kVA with air at 6 kg/cm², and the coolant tank holds 450 L.
