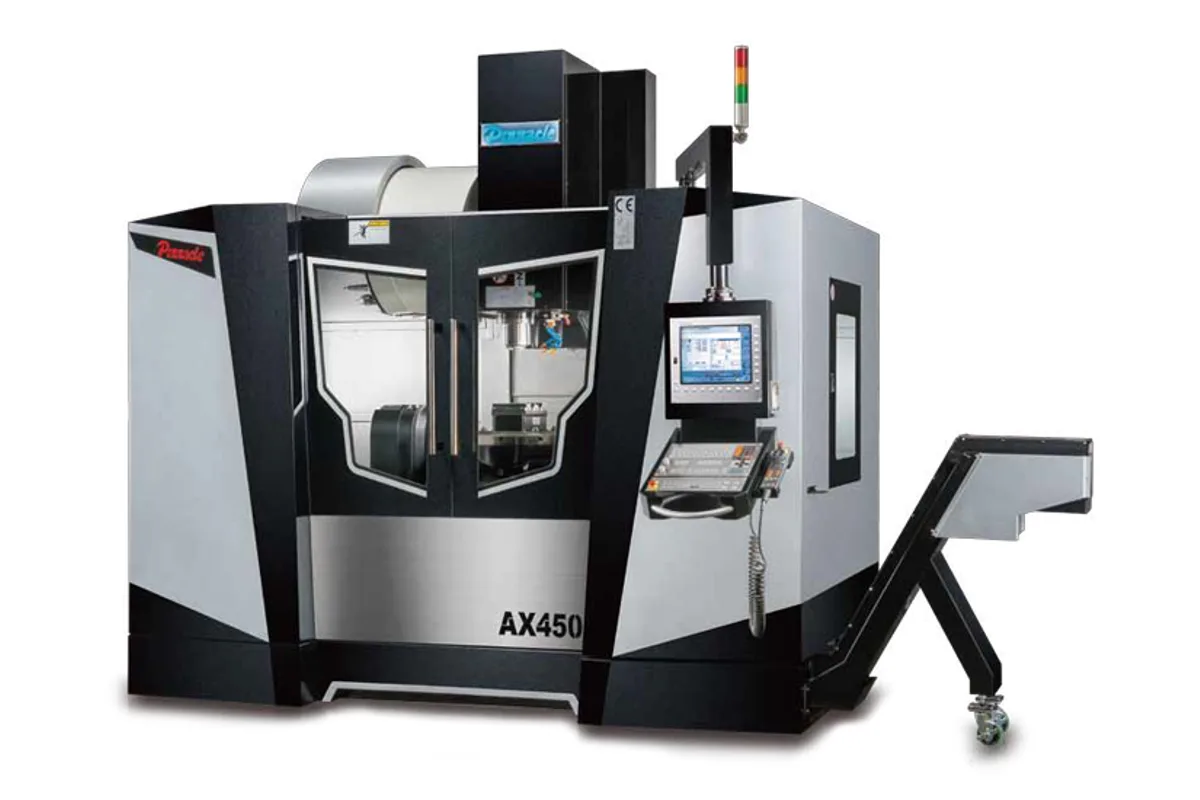

Pinnacle AX450
Image: pinnacle-mc.com, Pinnacle
Key Specifications
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
y axis travel
How much does the Pinnacle AX450 cost?
Price estimate
We do not have a price for the Pinnacle AX450 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle AX450 gives the AX trunnion design a Ø450 mm (Ø17.7 in) table and a symmetrical tilt: the A axis swings 220°(±110°). Linear travels are 760 mm (29.9 in) in X, 610 mm (24.0 in) in Y and 560 mm (22.0 in) in Z.
Symmetrical tilt is what separates it from the AX320, whose table goes to 120° on one side and only 30° on the other. With ±110° the part can be presented to the spindle from either side without re-clamping, which matters on components with features all the way round.
The table has an unusually large through hole, Ø171 mm (Ø6.7 in), useful for fixtures that pass through the centre. Maximum workpiece size is Ø600x 300 mm (Ø23.6x 11.8 in).
Spindle choices are shared with the smaller model: ISO40, 9/12 kW (12.1/16.1 hp), direct drive at 10,000 (12,000/15,000) rpm or built-in at 18,000 (20,000/24,000) rpm. Rapids are 30/30/24 m/min. The A/C feed rate of 5.5/11.5 rev/min is modest, so cycle times on fully simultaneous paths are set by the table and not by the linear axes. Pinnacle marks coolant through the ball screws as standard on this page. The machine weighs 7,000 kg (15,432 lb) and takes 3,100 x 2,230 mm (122.0 x 87.8 in) of floor.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | Ø450 mm (Ø17.7 in) |
| X Axis Travel | 760 mm (29.9 in) |
| Y Axis Travel | 610 mm (24.0 in) |
| Z Axis Travel | 560 mm (22.0 in) |
| Max Workpiece Size | Ø600x 300 mm (Ø23.6x 11.8 in) |
| Table Bore Diameter | Ø171 mm (Ø6.7 in) |
| Distance Spindle Nose to Table | 50~565 mm (2.0~22.2 in) |
| A Axis Range | 220°(±110°) |
| C Axis Range | 360° |
| Spindle Taper | ISO40 |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Speed Direct Drive | 10,000 (12,000/15,000) rpm |
| Spindle Speed Built in | 18,000 (20,000/24,000) rpm |
| Spindle Motor Power | 9/12 kW (12.1/16.1 hp) (con/30 min) |
| Rapid Traverse Xyz | 30/30/24 m/min |
| Cutting Feed Rate | 10 m/min |
| A C Axis Feed Rate | 5.5/11.5 rev/min |
| Tool Magazine Type | DISK - 24,30(Chain-40) |
| Tool Capacity | 24 (30,40) |
| Max Tool Diameter (full magazine) | 90 (76) mm (3.5 (3.0) in) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 300 L |
| Machine Weight | 7,000 kg (15,432 lb) |
| Machine Height | 2,900 mm (114.2 in) |
| Floor Space | 3,100 x 2,230 mm (122.0 x 87.8 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- A-axis tilt of 220°(±110°), symmetrical about vertical
- Ø450 mm (Ø17.7 in) table with a Ø171 mm (Ø6.7 in) through hole
- Built-in spindle option at 18,000 (20,000/24,000) rpm
- Coolant through ball screws listed as standard
Limitations
- A/C feed rate is 5.5/11.5 rev/min
- Workpiece height is limited to 300 mm within the Ø600x 300 mm (Ø23.6x 11.8 in) envelope
- Needs a 40 kVA supply and air at 6 kg/cm²
Best For
Frequently Asked Questions
01
The A axis tilts 220°(±110°) and the C axis rotates 360°. The AX320 by comparison is listed at 150°(-120°/+30°), so the AX450 reaches both sides of the part equally.
02
Travels are 760 mm (29.9 in) in X, 610 mm (24.0 in) in Y and 560 mm (22.0 in) in Z. The table is Ø450 mm (Ø17.7 in), and the spindle nose is 50~565 mm (2.0~22.2 in) from its surface.
03
The main motor is 9/12 kW (12.1/16.1 hp), continuous and 30 minute, on an ISO40 spindle with a Ø70 mm (Ø2.8 in) bearing bore. Speeds are 10,000 (12,000/15,000) rpm with direct drive or 18,000 (20,000/24,000) rpm built-in.
04
Travels are the same. The AX500 has a Ø500 mm (Ø19.7 in) table driven by DD motors with an A/C feed rate of 30/90 rev/min, against 5.5/11.5 rev/min here, and a 350 kg (772 lb) table load. The AX500 weighs 7,100 kg (15,653 lb).
More from Pinnacle
Other 5-Axis Machining Centers
AWEA LG-6050

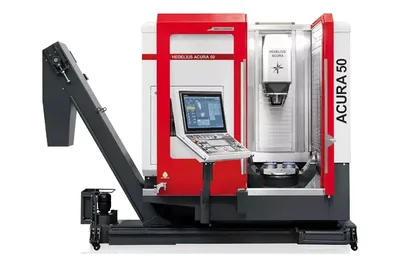

Hedelius ACURA 50 MARATHON
