Pinnacle AX170

Q: How much does the Pinnacle AX170 cost?

The price estimate for the Pinnacle AX170 is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/pinnacle-ax170#price; the request is passed to Pinnacle or an authorised dealer.

Specs verified 2026-10-04 · pinnacle-mc.com Updated 2026-10-04

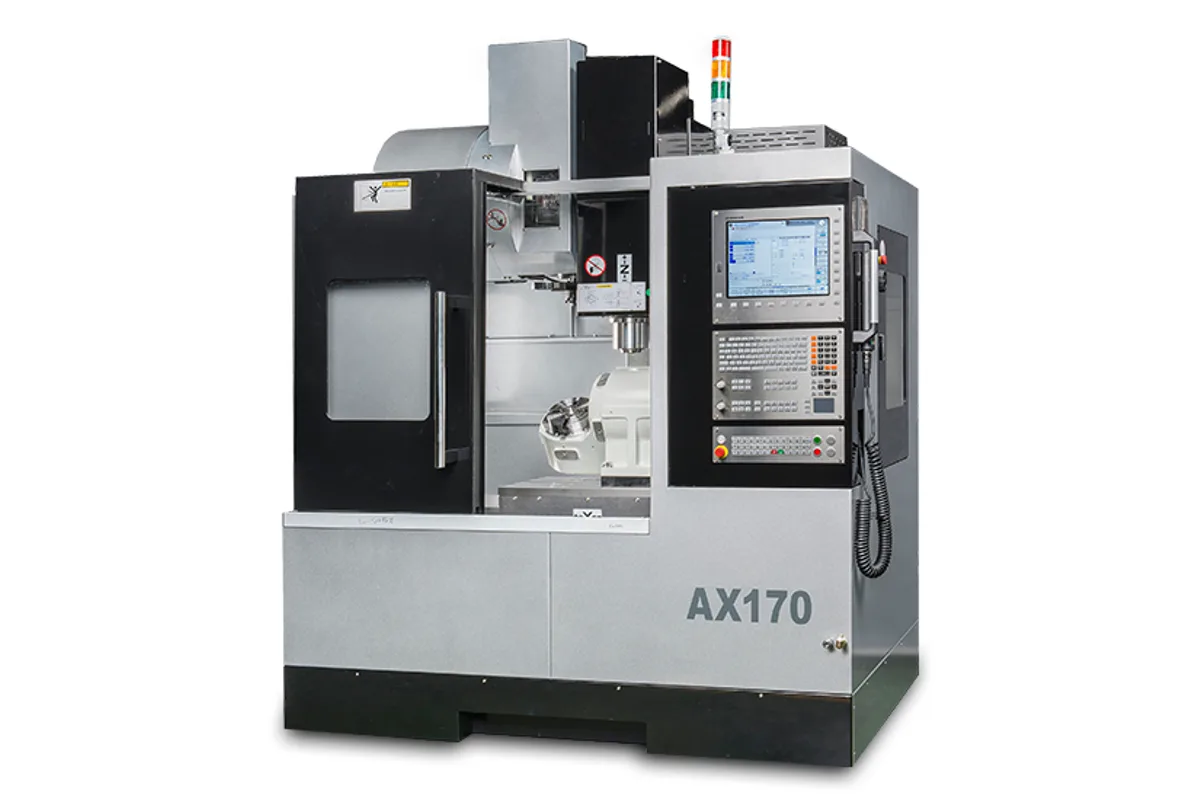

Image: pinnacle-mc.com, Pinnacle

Key Specifications

Max Spindle

15,000 rpm

Spindle Taper

ISO40 (HSKA63)

Tool Capacity

Table Size

Ø170 mm (Ø6.7 in)

Spindle Power

5.5 / 9.5 kW (7.4 / 12.7 hp) (S1/max)

Accuracy

0.005 mm

How much does the Pinnacle AX170 cost?

Price estimate

Uncertain

We do not have a price for the Pinnacle AX170 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Pinnacle AX170 is the smallest AX 5-axis machining center: a Ø170 mm (Ø6.7 in) trunnion table with direct-drive A and C axes under a 15,000 rpm spindle. Linear travels are 360 mm (14.2 in) in X and Y and 440 mm (17.3 in) in Z.

This is a machine for small, intricate parts. The largest workpiece is Ø210 x 180 mm (Ø8.3 x 7.1 in) and the table carries 50 kg (110 lb). Within that envelope the rotary axes are quick: the A axis tilts ±120° at 60 rpm and the C axis turns 360° at 200 rpm, both by DD motor, so there is no worm gear to wear or to add backlash.

The spindle is a direct type rated 5.5 / 9.5 kW (7.4 / 12.7 hp) and 35 / 60 Nm (25.8 / 44.3 lb-ft), S1 and maximum, with a base speed of 1,500 rpm. Pinnacle lists the taper as ISO40 (HSKA63). Linear axes rapid at 36 / 36 / 36 m/min on 25mm roller ways, and oil is circulated through the ball screws to hold thermal growth down.

Stated accuracy is 0.005 mm positioning and 0.003 mm repeatability on X, Y and Z. The accessories list names Heidenhain TNC640, rotary encoders on both rotary axes and a 20-tool arm-type changer. The whole machine weighs 3,800 kg (8,377 lb).

Full Specifications

Parameter	Value
Table Size	Ø170 mm (Ø6.7 in)
X Axis Travel	360 mm (14.2 in)
Y Axis Travel	360 mm (14.2 in)
Z Axis Travel	440 mm (17.3 in)
Distance Spindle Nose to Table	60~500 mm (2.4~19.7 in)
Max Table Load	50 kg (110 lb)
Max Workpiece Size	Ø210 x 180 mm (Ø8.3 x 7.1 in)
Table Bore Diameter	Ø40 mm (Ø1.6 in)
A Axis Range	±120°
C Axis Range	360°
A Axis Speed	60 rpm
C Axis Speed	200 rpm
T-Slots	14 x 90° x 4
Spindle Taper	ISO40 (HSKA63)
Max Spindle Speed	15,000 rpm
Spindle Base Speed	1,500 rpm
Spindle Motor Power	5.5 / 9.5 kW (7.4 / 12.7 hp) (S1/max)
Spindle Torque	35 / 60 Nm (25.8 / 44.3 lb-ft) (S1/max)
Spindle Drive	Direct
Spindle Bearing Inner Diameter	Ø60 mm (Ø2.4 in)
Rapid Traverse Xyz	36 / 36 / 36 m/min
Cutting Feed Rate	20,000 mm/min
Tool Magazine Type	DISK
Tool Capacity	20
Max Tool Diameter (full magazine)	Ø75 mm (Ø3.0 in)
Max Tool Length	250 mm (9.8 in)
Max Tool Weight	8 kg (18 lb)
Positioning Accuracy	0.005 mm
Positioning Accuracy Rotary Axes	5" / 5" (A/C(arc-sec))
Repeatability	0.003 mm
Repeatability Rotary Axes	4"/4" (A/C(arc-sec))
Machine Dimensions	1,700 x 2,290 x 3,110 mm (66.9 x 90.2 x 122.4 in)
Machine Weight	3,800 kg (8,377 lb)

Specifications sourced from pinnacle-mc.com — verified 2026-10-04

Strengths & Limitations

Strengths

Direct-drive A and C axes at 60 rpm and 200 rpm
A-axis tilt of ±120° with a full 360° C axis
15,000 rpm direct spindle with 35 / 60 Nm (25.8 / 44.3 lb-ft)
Positioning accuracy of 0.005 mm and repeatability of 0.003 mm on the linear axes

Limitations

Workpiece limited to Ø210 x 180 mm (Ø8.3 x 7.1 in) and 50 kg (110 lb)
Magazine holds 20 tools of at most Ø75 mm (Ø3.0 in)
Spindle power of 5.5 / 9.5 kW (7.4 / 12.7 hp) suits small tools only

Best For

Small 5-axis parts such as impellers and medical components Dental and jewellery-scale work on a Ø170 mm table Simultaneous 5-axis finishing at 15,000 rpm

Frequently Asked Questions

01 How big a part fits on the Pinnacle AX170?

The maximum workpiece size is Ø210 x 180 mm (Ø8.3 x 7.1 in) and the maximum table load is 50 kg (110 lb). The table itself is Ø170 mm (Ø6.7 in) with a Ø40 mm (Ø1.6 in) centre hole.

02 How are the rotary axes driven on the AX170?

By DD motors. Pinnacle states that table rotation and tilting are driven by DD motor, with maximum speeds of 60 rpm on the A axis and 200 rpm on the C axis. Rotary positioning accuracy is listed as 5" / 5" and repeatability as 4"/4".

03 What spindle does the AX170 have?

A direct-type spindle with a maximum speed of 15,000 rpm and a base speed of 1,500 rpm. Power is 5.5 / 9.5 kW (7.4 / 12.7 hp) and torque 35 / 60 Nm (25.8 / 44.3 lb-ft), given as S1 and maximum. The taper is listed as ISO40 (HSKA63).

04 What control does the AX170 use?

The accessories list on the page includes Heidenhain TNC640, together with DCM and a kinematics function. A-axis and C-axis rotary encoders are also in that list.
