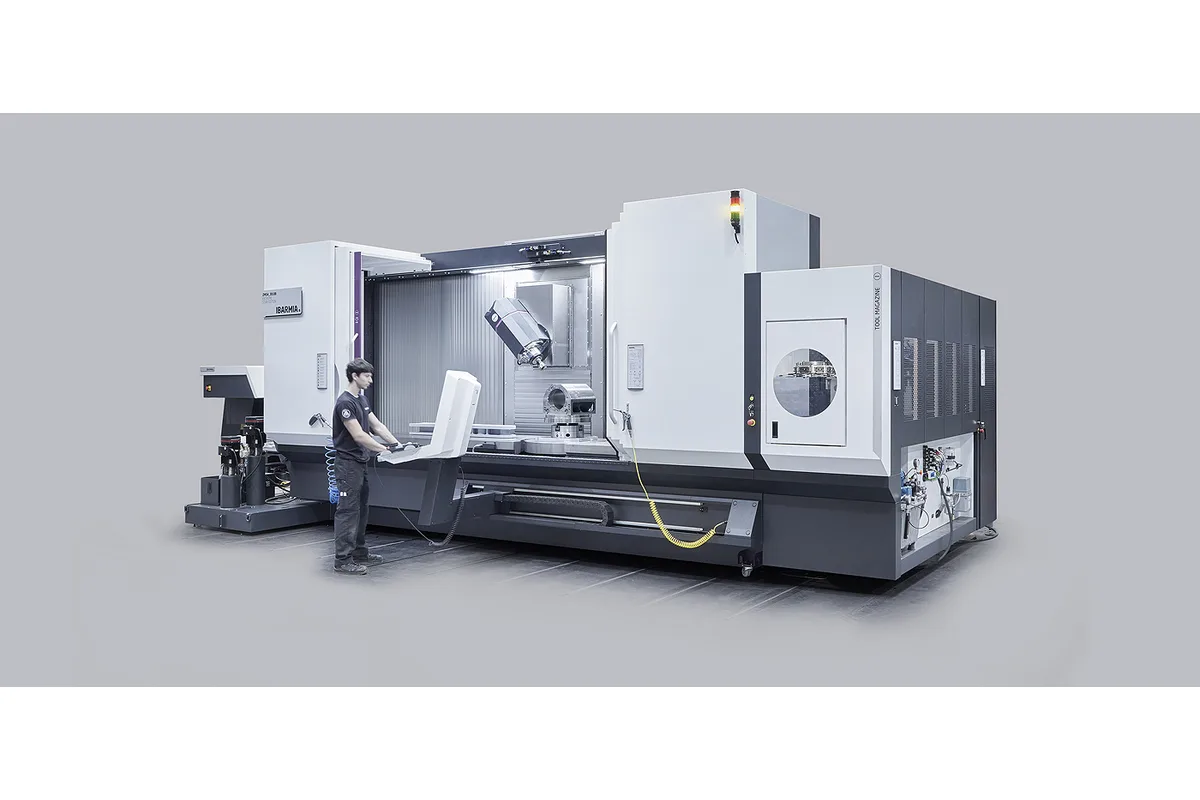

Ibarmia ZMS4_30.08 Extreme Star Edition
Image: ibarmia.com, Ibarmia
Key Specifications
Spindle Taper
Tool Capacity
Spindle Power
x axis travel
y axis travel
z axis travel
How much does the Ibarmia ZMS4_30.08 Extreme Star Edition cost?
Price estimate
We do not have a price for the Ibarmia ZMS4_30.08 Extreme Star Edition that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Ibarmia ZMS4_30.08 Extreme Star Edition is a moving-column machining center with 3,000 mm (118.1 in) of X travel, 800 mm (31.5 in) each of Y and Z, and a tilting head on an SK-40 or HSK A-63 spindle. The table describes its ZS head as a continuous tilting head with a torque motor, giving 4-axis movement, and puts the B-axis range at +/- 120º.
The proportions say what the machine is for. X is 3.75 times the Y travel, so the envelope is a long, narrow box: beams, rails, profiles and plates, or several shorter parts clamped in a row. Because the column does the travelling, the work stays still through the full 3,000 mm. A maximum swing diameter of 1,100 mm (43.3 in) is also listed, and that is the figure to check for anything that has to rotate inside the work area.
A B axis that tilts continuously lets the spindle hold any angle inside its range, where an indexing head would be restricted to fixed steps. Angled holes, chamfers and inclined faces can then be reached in the same clamping as the top of the part.
Spindle power is given as up to 46 kW (61.7 hp). No spindle speed or torque appears in the table, so ask for the speed range of the spindle being quoted. The magazine holds 50 tools, with 150 tools as an option, and two CNC controls are listed as alternatives. The sibling ZMS5_30.08 has the same travels with an SK-50 or HSK A-100 spindle of 43 kW (57.7 hp) at 8,000 rpm, and its optional magazine stops at 100 tools.
Full Specifications
| Parameter | Value |
|---|---|
| Spindle Taper | SK-40 • HSK A-63 |
| X Axis Travel | 3,000 mm (118.1 in) |
| Y Axis Travel | 800 mm (31.5 in) |
| Z Axis Travel | 800 mm (31.5 in) |
| B Axis Range | +/- 120º |
| Max Swing Diameter | 1,100 mm (43.3 in) |
| Spindle Head | ZS head, continuous tilting head with torque motor (4-axis movement) |
| CNC Control | Heidenhain TNC 7 / Fanuc 31i-B5 |
| Structure | Moving column |
| Spindle Motor Power | Up to 46 kW (61.7 hp) |
| Tool Capacity | 50 tools (Option: 150 tools) |
Specifications sourced from ibarmia.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 3,000 mm (118.1 in) of X travel on a moving-column structure, so long workpieces stay fixed while the column moves
- ZS continuous tilting head with torque motor and a B-axis range of +/- 120º
- Spindle power of up to 46 kW (61.7 hp) on an SK-40 or HSK A-63 interface
- Optional 150-tool magazine, larger than the 100 tools offered as the option on the ZMS5_30.08
- Two CNC control options are listed, so the control can follow what the shop already programs
Limitations
- Y and Z travels are 800 mm (31.5 in) each, which caps part width and height however long the X axis is
- The table states no spindle speed or torque, and the 46 kW (61.7 hp) figure is an upper limit
- The standard magazine is 50 tools; 150 tools is an option
- The head is listed as 4-axis movement, and no rotary axis for the workpiece appears in the table
Best For
Frequently Asked Questions
01
X is 3,000 mm (118.1 in), Y is 800 mm (31.5 in) and Z is 800 mm (31.5 in). The B axis of the tilting head has a range of +/- 120º. The table also lists a maximum swing diameter of 1,100 mm (43.3 in).
02
The taper row lists SK-40 and HSK A-63, and spindle power is given as up to 46 kW (61.7 hp). No maximum speed or torque is listed for this model, so those figures need to come from Ibarmia for the specific spindle on offer.
03
50 tools as listed, with a 150-tool magazine available as an option. The table gives no maximum tool diameter, length or weight, so check those limits if the job relies on long or heavy tools.
04
The spindle and the magazine option. The ZMS4_30.08 lists SK-40 and HSK A-63 with up to 46 kW (61.7 hp) and an optional 150 tools. The ZMS5_30.08 lists SK-50 and HSK A-100 with 43 kW (57.7 hp), 8,000 rpm and an optional 100 tools. Travels, head, structure and the 50-tool standard magazine are the same.
05
Continuously. The table describes the ZS head as a continuous tilting head with a torque motor, with a B-axis range of +/- 120º, and calls the result 4-axis movement. That allows the tilt to take part in a cut and not only to index between cuts.
