Pinnacle BX300A

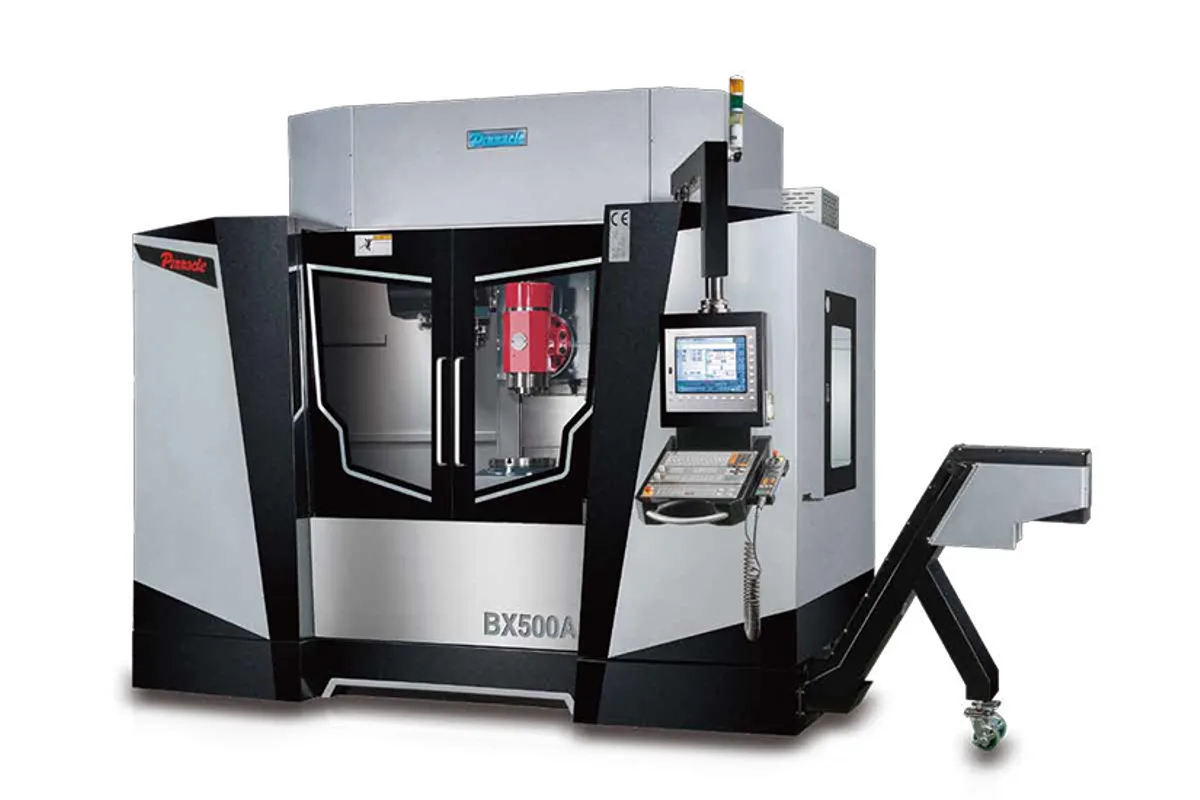

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Pinnacle BX300A cost?
Price estimate
We do not have a price for the Pinnacle BX300A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle BX300A is a swivel-head 5-axis machining center whose rotary table can be taken off. With the Ø 320 mm (Ø 12.6 in) table removed, the 1,300 x 610 mm (51.2 x 24.0 in) fixed table is free and the machine works as a 4-axis machine with a tilting spindle, a point Pinnacle makes explicitly for the BX A models.
Travels are 1,140 mm (44.9 in) in X, 610 mm (24.0 in) in Y and 810 mm (31.9 in) in Z. The B-axis head swivels ± 120° through a worm gear at up to 25 rpm, clamping with 1,157 Nm (853.4 lb-ft). The separate rotary table is also worm driven, turns at 22.2 rpm and carries 350 kg (772 lb); the fixed table underneath takes 850 kg (1,874 lb).
A built-in spindle runs to 15,000 rpm on a 15 / 18 kW (20.1 / 24.1 hp) motor. The taper is DIN40 (HSKA63) and the magazine holds 30 (40, 60) tools of up to Ø75 mm (Ø3.0 in). Rapids are 36 / 36 / 24 m/min.
Pinnacle states 0.005 mm positioning accuracy on the linear axes and 14"/14" on B and C. At 6,500 kg (14,330 lb) and 3,100 x 2,230 mm (122.0 x 87.8 in) it has the footprint of a mid-size vertical. The controller described for the series is the HEIDENHAIN TNC640.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,300 x 610 mm (51.2 x 24.0 in) |
| X Axis Travel | 1,140 mm (44.9 in) |
| Y Axis Travel | 610 mm (24.0 in) |
| Z Axis Travel | 810 mm (31.9 in) |
| Max Table Load | 850 kg (1,874 lb) |
| Distance Spindle Nose to Table Vertical | 100 ~ 910 mm (3.9 ~ 35.8 in) |
| Distance Spindle Center to Table Horizontal | 355~1,165 mm (14.0~45.9 in) |
| T-Slots | 18 x 125 x 5 (Width x Distance x Number mm) |
| Spindle Taper | DIN40 (HSKA63) |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Center to Column | 675 mm (26.6 in) |
| Max Spindle Speed | 15,000 rpm |
| Draw Bar Force | 800 ± 100 kgf |
| Spindle Motor Power | 15 / 18 kW (20.1 / 24.1 hp) (con/30 min) |
| B Axis Drive | WORM GEAR |
| B Axis Range | ± 120° |
| B Axis Speed | 25 rpm |
| B Axis Clamp Torque | 1,157 Nm (853.4 lb-ft) |
| Rotary Table Drive Type | SEPARATED |
| Rotary Table Type | WORM GEAR |
| Rotary Table Diameter | Ø 320 mm (Ø 12.6 in) |
| C Axis Speed | 22.2 rpm |
| Rotary Table Load | 350 kg (772 lb) |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min |
| Cutting Feed Rate | 10,000 mm/min |
| Tool Magazine Type | PLATE |
| Tool Capacity | 30 (40, 60) |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3.0 in) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 14"/14" (BC rotary (sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 8"/8" (BC rotary (sec)) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 300 L |
| Machine Weight | 6,500 kg (14,330 lb) |
| Machine Height | 3,100 mm (122.0 in) |
| Floor Space | 3,100 x 2,230 mm (122.0 x 87.8 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Removable Ø 320 mm (Ø 12.6 in) rotary table frees a 1,300 x 610 mm (51.2 x 24.0 in) fixed table
- B-axis swivel head with a ± 120° tilting range
- 15,000 rpm built-in spindle with 15 / 18 kW (20.1 / 24.1 hp)
- 810 mm (31.9 in) of Z travel in a 6,500 kg (14,330 lb) machine
Limitations
- Worm-gear B axis is limited to 25 rpm and the table to 22.2 rpm
- Rotary table load is 350 kg (772 lb)
- Rotary accuracy of 14"/14" trails the direct-drive BX models
Best For
Frequently Asked Questions
01
Yes. Pinnacle describes the BX A models as having a swivel head and rotary table design in which the rotary table is removable, so the machine can work as a 4 axes machine. The table type is listed as SEPARATED.
02
1,140 mm (44.9 in) in X, 610 mm (24.0 in) in Y and 810 mm (31.9 in) in Z. With the head vertical the spindle nose is 100 ~ 910 mm (3.9 ~ 35.8 in) from the table; with the head horizontal the spindle centre is 355~1,165 mm (14.0~45.9 in) above it.
03
By worm gear. The tilting range is ± 120°, maximum speed 25 rpm and clamp torque 1,157 Nm (853.4 lb-ft). Pinnacle offers direct drive on the B axis as an option for the series.
04
A built-in spindle with a maximum speed of 15,000 rpm, a 15 / 18 kW (20.1 / 24.1 hp) motor and a DIN40 (HSKA63) taper. Draw bar force is 800 ± 100 kgf and the bearing bore Ø70 mm (Ø2.8 in).
