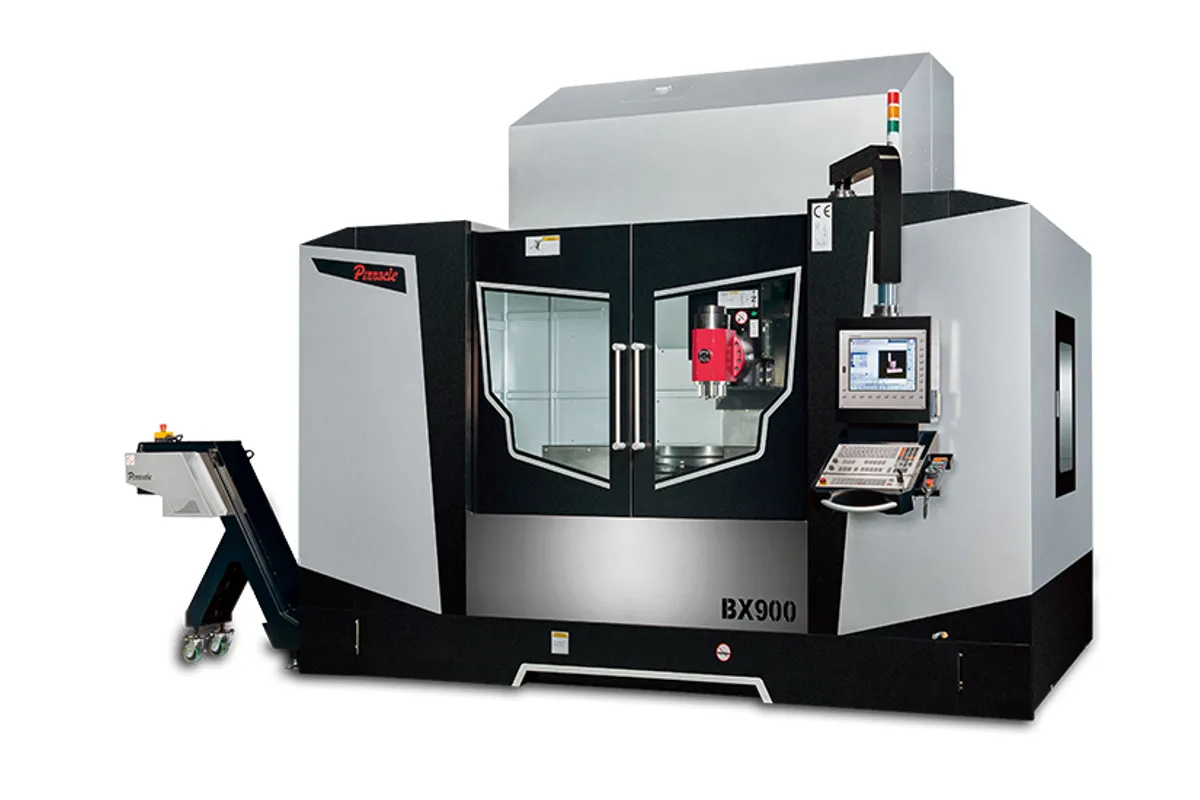

Pinnacle BX900
Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Pinnacle BX900 cost?
Price estimate
We do not have a price for the Pinnacle BX900 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle BX900 is the largest swivel-head model in the BX line: 1,500 mm (59.1 in) of X, 900 mm (35.4 in) of Y, and Z of Vertical 1,000 / Horizontal 1,100 mm. A Ø800 mm (Ø31.5 in) direct-drive rotary table is built into the 1,700x850 mm (66.9x33.5 in) main table.
Size brings a different balance of figures. The table carries 1,200 kg (2,646 lb) and the machine weighs 15,000 kg (33,069 lb), but rapids are 20/20/16 m/min, well under the 36 m/min of the BX700 group. Supply rises to 50 kVA and the coolant tank to 700 L.
On the base BX900 the B axis is worm driven at 16.6 rpm with 1,765 Nm (1,301.9 lb-ft) of clamp torque; the C axis is direct drive at 50 rpm. Rotary accuracy is 14"/10". Pinnacle's description highlights finishing complex workpieces in one setup with the head swivelling ±120°.
The built-in spindle is DIN40 with 15/19.4 kW (20.1/26.0 hp) and 71.6/172 Nm (52.8/126.9 lb-ft) at up to 15,000 rpm. Thirty tools are standard and 60 optional. Check the building: the machine is 3,450 mm (135.8 in) high on a 4,450x4,340 mm (175.2x170.9 in) floor space. The control described is the HEIDENHAIN TNC640.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,700x850 mm (66.9x33.5 in) |
| X Axis Travel | 1,500 mm (59.1 in) |
| Y Axis Travel | 900 mm (35.4 in) |
| Z Axis Travel | Vertical 1,000 / Horizontal 1,100 mm (Vertical 39.4 / Horizontal 43.3 in) |
| Max Table Load | 1,200 kg (2,646 lb) |
| T-Slots | 18x150x5 (W x D x N mm) |
| Spindle Taper | DIN40 |
| Spindle Bearing Inner Diameter | Ø 70 mm (Ø 2.8 in) |
| Spindle Center to Column | 950 mm (37.4 in) |
| Max Spindle Speed | 15,000 rpm |
| Draw Bar Force | 900±100 kgf |
| Spindle Motor Power | 15/19.4 kW (20.1/26.0 hp) (con/S6 60%) |
| Spindle Torque | 71.6/172 Nm (52.8/126.9 lb-ft) (con/max) |
| B Axis Drive | WORM GEAR |
| B Axis Range | ±120° |
| B Axis Speed | 16.6 rpm |
| B Axis Clamp Torque | 1,765 Nm (1,301.9 lb-ft) |
| Rotary Table Type | EMBEDDED |
| Rotary Table Drive Type | Direct drive |
| Rotary Table Diameter | Ø800 mm (Ø31.5 in) |
| C Axis Speed | 50 rpm |
| Rotary Table Load | 1,200 kg (2,646 lb) |
| Rapid Traverse Xyz | 20/20/16 m/min |
| Cutting Feed Rate | 10,000 mm/min |
| Tool Magazine Type | PLATE |
| Tool Capacity | 30(60) |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3.0 in) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 14"/10" (B/C rotary axis(sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 8"/6" (B/C rotary axis(sec)) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 50 kVA |
| Coolant Tank Capacity | 700 L |
| Machine Weight | 15,000 kg (33,069 lb) |
| Machine Height | 3,450 mm (135.8 in) |
| Floor Space | 4,450x4,340 mm (175.2x170.9 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø800 mm (Ø31.5 in) direct-drive table rated for 1,200 kg (2,646 lb)
- 1,500 x 900 mm X and Y travels with up to 1,100 mm of Z in horizontal milling
- 15,000 rpm built-in spindle with 71.6/172 Nm (52.8/126.9 lb-ft)
- 15,000 kg (33,069 lb) structure
Limitations
- Rapids are 20/20/16 m/min
- Worm-gear B axis at 16.6 rpm in the base version
- Needs 50 kVA and a 4,450x4,340 mm (175.2x170.9 in) floor space
Best For
Frequently Asked Questions
01
X is 1,500 mm (59.1 in), Y is 900 mm (35.4 in) and Z is listed as Vertical 1,000 / Horizontal 1,100 mm. The main table is 1,700x850 mm (66.9x33.5 in) with an embedded Ø800 mm (Ø31.5 in) rotary table.
02
Both the main table and the rotary table are rated for 1,200 kg (2,646 lb). The rotary table is direct driven and listed at 50 rpm.
03
The tool storage capacity is listed as 30(60): 30 tools, with 60 as the larger option. The magazine is a plate type with random, bi-directional selection, and the maximum tool diameter is Ø75 mm (Ø3.0 in).
04
A 50 kVA supply, air at 6 kg/cm², floor space of 4,450x4,340 mm (175.2x170.9 in) and 3,450 mm (135.8 in) of height. The machine weighs 15,000 kg (33,069 lb) and has a 700 L coolant tank.
More from Pinnacle
Other 5-Axis Machining Centers
AWEA LP-3021YF
Röders RXU1201DSXH
DMG Mori HSC 20 linear

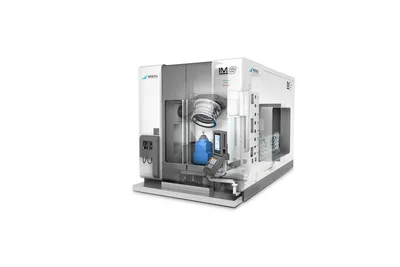

Modig IM-8

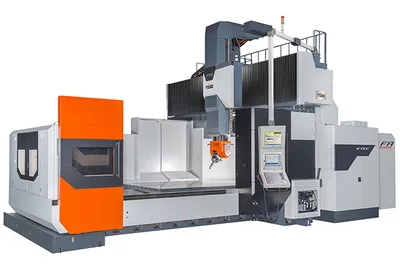

Vision Wide FA-2623
