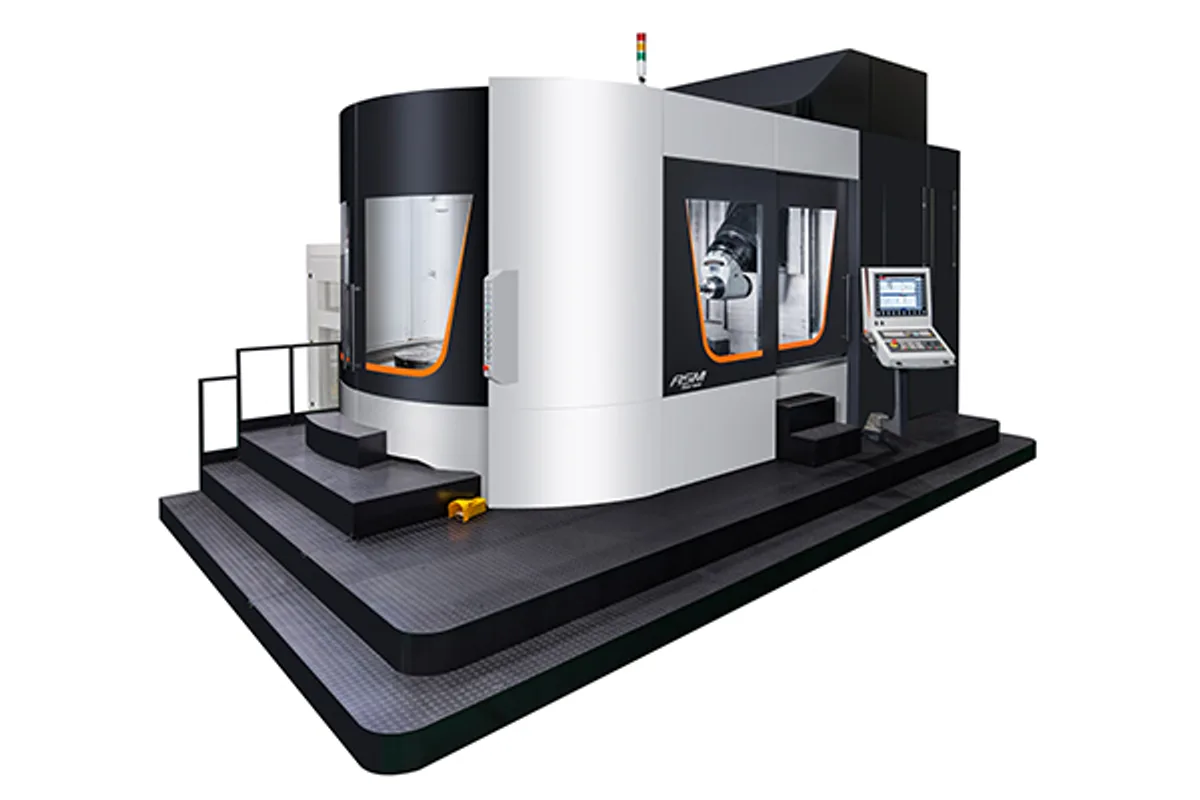

Vision Wide ASM-1612
Image: visionwide-tech.com, Vision Wide
Key Specifications
Max Spindle
x axis travel
y axis travel
z axis travel
table diameter
max table load central area
How much does the Vision Wide ASM-1612 cost?
Price estimate
We do not have a price for the Vision Wide ASM-1612 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Vision Wide ASM-1612 is the large-table ASM with the fast spindle. Its table is Ø1,500 mm (Ø59.1 in) and takes 3,000 kg (6,614 lb) in the central area, X travel is 1,620 mm (63.8 in), and the spindle speed is 10,000 rpm.
Two versions share that table, so it is worth being exact. The ASM-1612 lists 10,000 rpm and rapids of 40 / 40 / 40 m/min. The ASM-1612G lists 7,000 rpm and 40 / 40 / 24 m/min. Buyers who cut mostly aluminum, or who finish more than they rough, want this one.
Tooling and coolant are generous for the class. A horizontal chain type magazine with 40 tools is standard, and 60 or 119 tools are optional. The universal head has an external cutting coolant device as standard; coolant through spindle at 20 / 60 bar, the same with air through the spindle at 6 bar, and oil mist (MQL) are options.
Y travel is 1,260 mm (49.6 in), which is less than the table diameter. A part that fills the Ø1,500 mm table is reached across its full width by rotating it, not by Y travel alone. Z travel is 1,050 mm (41.3 in). The control is a HEIDENHAIN TNC 640, with a SIEMENS ONE Controller as the option.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,620 mm (63.8 in) |
| Y Axis Travel | 1,260 mm (49.6 in) |
| Z Axis Travel | 1,050 mm (41.3 in) |
| Table Diameter | Ø1,500 mm (Ø59.1 in) |
| Max Table Load Central Area | 3,000 kg (6,614 lb) |
| Max Spindle Speed | 10,000 rpm |
| Cutting Feed Rate | 24 / 24 / 24 m/min |
| Rapid Traverse Xyz | 40 / 40 / 40 m/min |
Specifications sourced from visionwide-tech.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Ø1,500 mm (Ø59.1 in) table for 3,000 kg (6,614 lb)
- 10,000 rpm with 40 / 40 / 40 m/min rapids
- Horizontal chain type magazine: 40 tools standard, 60 / 119 tools optional
- Universal head external cutting coolant device is standard
Limitations
- Y travel of 1,260 mm (49.6 in) is less than the table diameter
- Through-spindle coolant is an option
- No spindle power or torque appears in the specification table
Best For
Frequently Asked Questions
01
The ASM-1612 lists a spindle speed of 10,000 rpm and rapids of 40 / 40 / 40 m/min. The ASM-1612G lists 7,000 rpm and 40 / 40 / 24 m/min. Travels, table and load are the same.
02
A horizontal chain type magazine with 40 tools is standard. Horizontal chain type magazines with 60 / 119 tools are on the option list.
03
Table diameter Ø1,500 mm (Ø59.1 in), load 3,000 kg (6,614 lb) in the central area. Travels are 1,620 mm (63.8 in) in X, 1,260 mm (49.6 in) in Y and 1,050 mm (41.3 in) in Z.
04
The HEIDENHAIN TNC 640 Controller is standard and the SIEMENS ONE Controller is optional. An ASM-1612 FD is also listed with identical table figures; the page does not explain it.
More from Vision Wide
Other 5-Axis Machining Centers

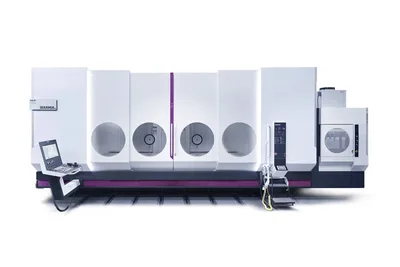

Ibarmia ZMS5
