Pinnacle BX500A

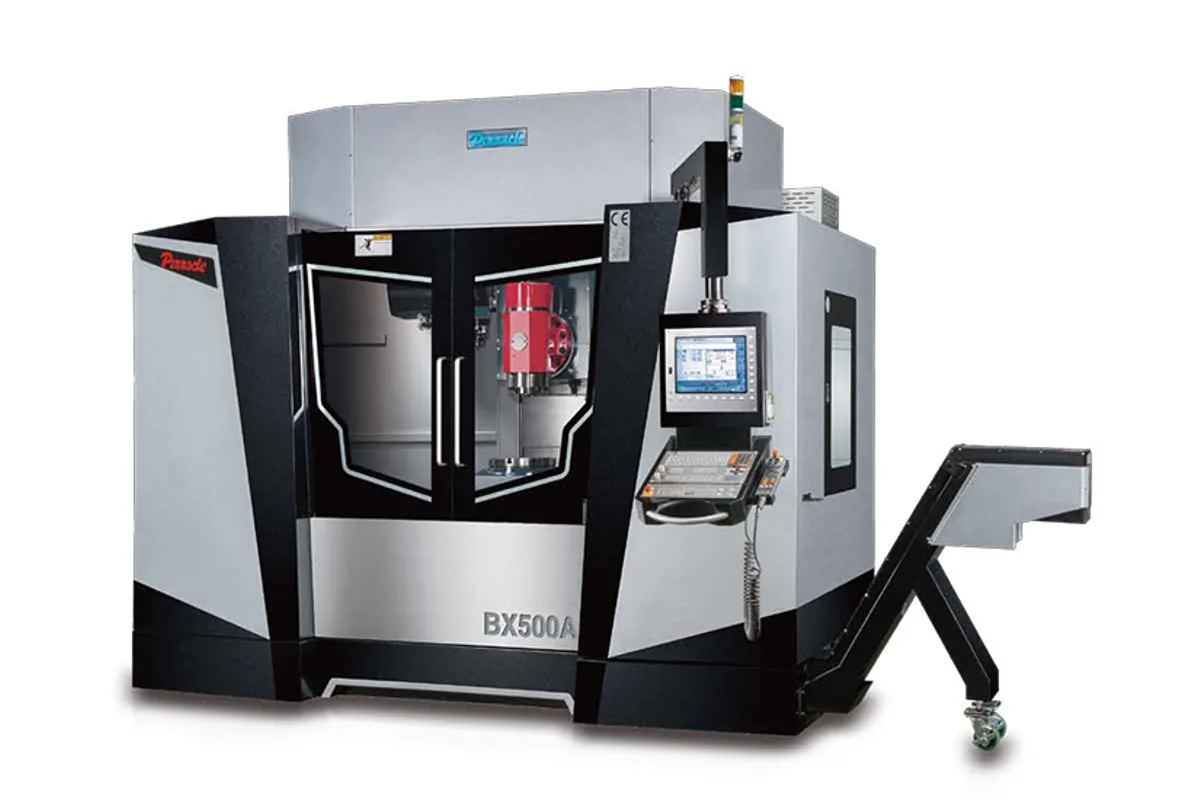

Image: pinnacle-mc.com, Pinnacle
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Pinnacle BX500A cost?
Price estimate
We do not have a price for the Pinnacle BX500A that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Pinnacle BX500A combines a ± 120° swivel head with a detachable Ø 500 mm (Ø 19.7 in) rotary table on a 1,450 x 610 mm (57.1 x 24.0 in) fixed table. X travel is 1,300 mm (51.2 in), Y 610 mm (24.0 in) and Z 810 mm (31.9 in).
Its place in the A group is easy to state. The BX300A has a smaller rotary table and less X; the BX700A is a much heavier machine with 710 mm (28.0 in) of Y. The BX500A keeps the light frame, 6,800 kg (14,991 lb), while raising the rotary table load to 500 kg (1,102 lb).
Both rotary axes are worm driven on this version. The head turns at up to 25 rpm, the table at 11.1 rpm, and rotary positioning accuracy is 14"/14". For indexing work those speeds are adequate. For continuous 5-axis contouring the embedded direct-drive table of the BX500, at 50 rpm, is the better tool, and it does not come off.
The built-in spindle is common across the group: 15,000 rpm, 15 / 18 kW (20.1 / 24.1 hp), DIN40 (HSKA63). Thirty tools are standard in the plate magazine, with 40 and 60 listed as alternatives. Floor space is 3,400 x 2,230 mm (133.9 x 87.8 in) and supply 40 kVA.
Full Specifications
| Parameter | Value |
|---|---|
| Table Size | 1,450 x 610 mm (57.1 x 24.0 in) |
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 610 mm (24.0 in) |
| Z Axis Travel | 810 mm (31.9 in) |
| Max Table Load | 850 kg (1,874 lb) |
| Distance Spindle Nose to Table Vertical | 100 ~ 910 mm (3.9 ~ 35.8 in) |
| Distance Spindle Center to Table Horizontal | 355~1,165 mm (14.0~45.9 in) |
| T-Slots | 18 x 125 x 5 (Width x Distance x Number mm) |
| Spindle Taper | DIN40 (HSKA63) |
| Spindle Bearing Inner Diameter | Ø70 mm (Ø2.8 in) |
| Spindle Center to Column | 675 mm (26.6 in) |
| Max Spindle Speed | 15,000 rpm |
| Draw Bar Force | 800 ± 100 kgf |
| Spindle Motor Power | 15 / 18 kW (20.1 / 24.1 hp) (con/30 min) |
| B Axis Drive | WORM GEAR |
| B Axis Range | ± 120° |
| B Axis Speed | 25 rpm |
| B Axis Clamp Torque | 1,157 Nm (853.4 lb-ft) |
| Rotary Table Drive Type | SEPARATED |
| Rotary Table Type | WORM GEAR |
| Rotary Table Diameter | Ø 500 mm (Ø 19.7 in) |
| C Axis Speed | 11.1 rpm |
| Rotary Table Load | 500 kg (1,102 lb) |
| Rapid Traverse Xyz | 36 / 36 / 24 m/min |
| Cutting Feed Rate | 10,000 mm/min |
| Tool Magazine Type | PLATE |
| Tool Capacity | 30 (40, 60) |
| Max Tool Diameter (full magazine) | Ø75 mm (Ø3.0 in) |
| Positioning Accuracy | 0.005 mm |
| Positioning Accuracy Rotary Axes | 14"/14" (BC rotary (sec)) |
| Repeatability | 0.003 mm |
| Repeatability Rotary Axes | 8"/8" (BC rotary (sec)) |
| Air Requirement | 6 kg/cm² |
| Power Requirement | 40 kVA |
| Coolant Tank Capacity | 300 L |
| Machine Weight | 6,800 kg (14,991 lb) |
| Machine Height | 3,100 mm (122.0 in) |
| Floor Space | 3,400 x 2,230 mm (133.9 x 87.8 in) (L x W) |
Specifications sourced from pinnacle-mc.com — verified 2026-10-04
Strengths & Limitations
Strengths
- Detachable Ø 500 mm (Ø 19.7 in) rotary table rated for 500 kg (1,102 lb)
- 1,300 mm (51.2 in) of X travel for long parts when used as a 4-axis machine
- 15,000 rpm built-in spindle, DIN40 (HSKA63)
- Tool capacity of 30 (40, 60)
Limitations
- Rotary table speed is 11.1 rpm
- Y travel is 610 mm (24.0 in), which limits swing over the rotary table
- Worm-gear axes give 14"/14" rotary positioning accuracy
Best For
Frequently Asked Questions
01
Ø 500 mm (Ø 19.7 in), worm driven, with a maximum load of 500 kg (1,102 lb) and a rotation speed of 11.1 rpm. It is a separate unit mounted on the 1,450 x 610 mm (57.1 x 24.0 in) fixed table.
02
The BX500 has an embedded, direct-drive Ø500 mm (Ø19.7 in) table turning at 50 rpm and weighs 7,200 kg (15,873 lb). The BX500A has a separate worm-gear table and a single 810 mm (31.9 in) Z travel figure.
03
Rapid traverse is 36 / 36 / 24 m/min in X, Y and Z and the cutting feed rate is 10,000 mm/min. Pinnacle describes roller guideways on the three axes and oil-cooled ball screws for the series.
04
Positioning accuracy is 0.005 mm on X, Y and Z and 14"/14" on the B and C axes. Repeatability is 0.003 mm on the linear axes and 8"/8" on the rotary axes.
