Matec 30PB | 40PB

Q: How much does the Matec 30PB | 40PB cost?

The price estimate for the Matec 30PB | 40PB is uncertain: we have no price for it that we can cite and no estimate we can stand behind, so we give no figure. Configuration, tooling, automation and installation move the final price substantially. A specific price can be requested at https://machinetoolindex.com/machines/matec-30pb-40pb#price; the request is passed to Matec or an authorised dealer.

Specs verified 2026-10-04 · matec.de Updated 2026-10-04

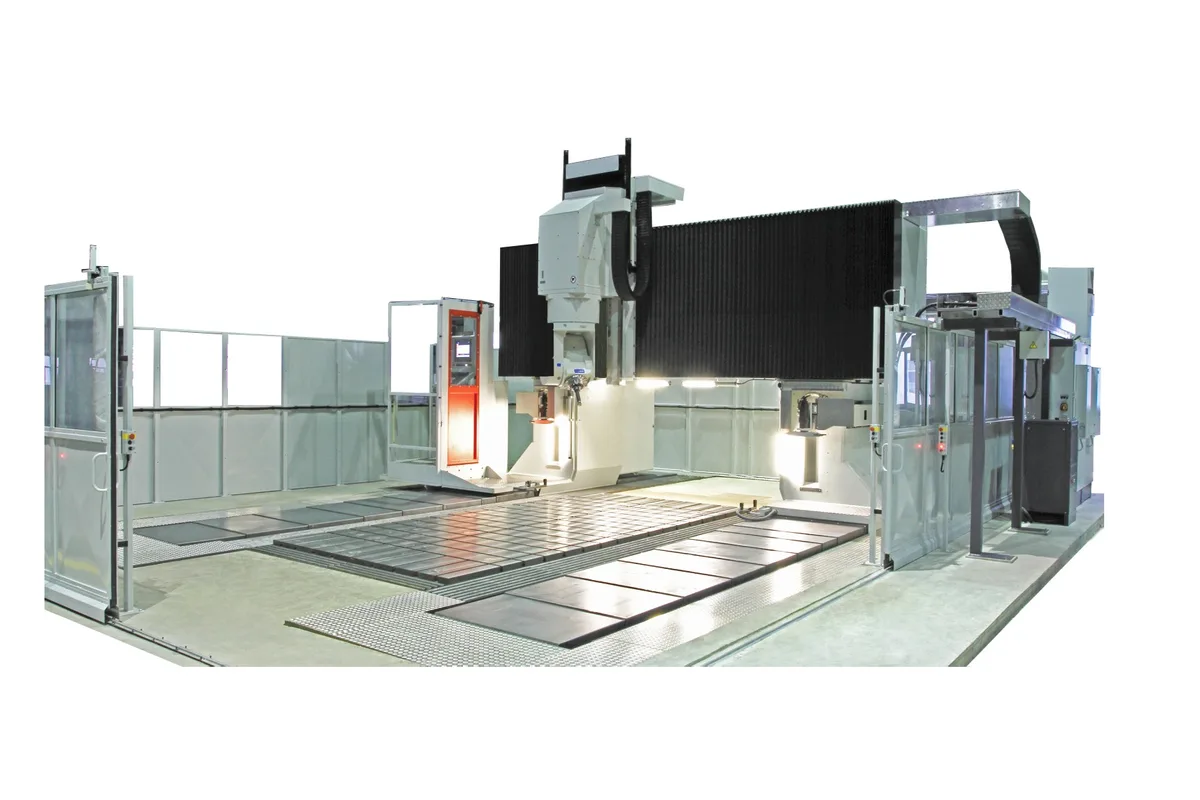

MATEC 30PB | 40PB series floor-running gantry machining centre

Image: matec.de, Matec

Key Specifications

Max Spindle

10,000 | 15,000 | 24,000 rpm

Tool Capacity

40 | 48 | max. 680 pcs.

Rapid Traverse

30 m/min (1,181 ipm) (feed | rapid traverse)

Spindle Power

96 kW (128.7 hp) max.

machine layout

Moving gantry | Stationary table | Floor-running

performance class

HSK63 | HSK100

How much does the Matec 30PB | 40PB cost?

Price estimate

Uncertain

We do not have a price for the Matec 30PB | 40PB that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.

Overview

The Matec 30PB | 40PB is the floor-running version of MATEC's moving gantry machine. The gantry travels beside a table set at shop-floor level, which MATEC sums up as ground-level accessibility: parts and fixtures can be brought to the table without lifting them onto a raised bed.

This layout changes how the load figure is given. The table is rated at 4,000 kg/m², a load per unit of area, where the table-type 30P | 40P is listed with 4,000 kg. On a floor plate 3,500 to 40,500 mm long and 2,100 to 3,100 mm wide, that allows far heavier workpieces in total than any of the table machines.

Clearance is larger too. Clearance height is 1,500 or 1,800 mm (59.1 or 70.9 in) with matching Z travels, and clearance width starts at 2,900 mm, against 1,900 mm on the 30P | 40P. X travel is 3,000 to 40,000 mm and Y 2,500 to 4,300 mm.

MATEC describes the floor-running machines as variants of its modular system whose main difference is the type of head. This one has the 2-axis fork head: 250 mm (9.8 in) swivel radius, ±180° in C, ±105° in A. Spindles run to 10,000, 15,000 or 24,000 rpm with up to 96 kW (128.7 hp) and 690 Nm (509 lb-ft). Axis drive is by ball screw at 30 m/min (1,181 ipm), with a linear drive as the option.

Full Specifications

Parameter	Value
Machine Layout	Moving gantry \| Stationary table \| Floor-running
Performance Class	HSK63 \| HSK100
CNC Control	SIEMENS \| HEIDENHAIN
X Axis Travel	3,000 - 40,000 mm (118.1 - 1,574.8 in)
Y Axis Travel	2,500 - 4,300 mm (98.4 - 169.3 in)
Z Axis Travel	1,500 \| 1,800 mm (59.1 \| 70.9 in)
Clearance Height	1,500 \| 1,800 mm (59.1 \| 70.9 in)
Clearance Width	2,900 - 3,400 mm (114.2 - 133.9 in)
Max Spindle Speed	10,000 \| 15,000 \| 24,000 rpm
Spindle Motor Power	96 kW (128.7 hp) max.
Spindle Torque	690 Nm (509 lb-ft) max.
Tool Capacity	40 \| 48 \| max. 680 pcs.
Max Tool Length	450 mm (17.7 in)
Max Tool Weight	10 \| 20 kg (22 \| 44 lb)
Head Type	2-Axis fork head
Head Swivel Radius	250 mm (9.8 in)
C Axis Range	± 180°
C Axis Direct Measuring System	± 6"
A Axis Range	± 105°
A Axis Direct Measuring System	± 5"
Table Length	3,500 - 40,500 mm (137.8 - 1,594.5 in)
Table Width	2,100 - 3,100 mm (82.7 - 122.0 in)
Max Table Load	4,000 kg/m² (depending on table size and drive system)
Rapid Traverse Rate	30 m/min (1,181 ipm) (feed \| rapid traverse)
Axis Drive	Ball screw; option: linear drive

Specifications sourced from matec.de — verified 2026-10-04

Strengths & Limitations

Strengths

Floor-level table with ground-level accessibility
Table load given as 4,000 kg/m²
X travel from 3,000 to 40,000 mm (118.1 to 1,574.8 in)
Clearance width of 2,900 to 3,400 mm (114.2 to 133.9 in)
Spindle speeds up to 24,000 rpm

Limitations

Only two Z travels, 1,500 or 1,800 mm (59.1 or 70.9 in)
A floor-running machine needs a prepared foundation; MATEC's page gives no foundation data
Fork head limited to ±105° in the A axis
30 m/min (1,181 ipm) feed and rapid traverse with the standard ball screw

Best For

Heavy workpieces loaded at floor level Very long components up to 40,000 mm (1,574.8 in) of X travel Large welded structures and machine frames machined from five sides

Frequently Asked Questions

01 What does floor-running mean on the 30PB | 40PB?

The gantry moves along the shop floor beside a stationary table at floor level, instead of riding on a raised machine bed. MATEC's page stresses ground-level accessibility for this series and calls the machines variants of its modular system.

02 How much load can the table take?

MATEC gives 4,000 kg/m², depending on table size and drive system. Unlike the 4,000 kg total printed for the table-type 30P | 40P, this is a load per square metre, so the permissible total rises with the area the workpiece rests on.

03 What are the travels and clearances of the 30PB | 40PB?

X travel is 3,000 to 40,000 mm, Y travel 2,500 to 4,300 mm and Z travel 1,500 or 1,800 mm. Clearance height is 1,500 or 1,800 mm and clearance width 2,900 to 3,400 mm (114.2 to 133.9 in). Table length is 3,500 to 40,500 mm.

04 How does it differ from the 30PBU | 40PBU?

By the head, which MATEC calls the main difference within the floor-running series. The 30PB | 40PB has the 2-axis fork head with ±105° in A and a 250 mm swivel radius. The 30PBU | 40PBU has the universal head with ±180° in A and 440 mm.
