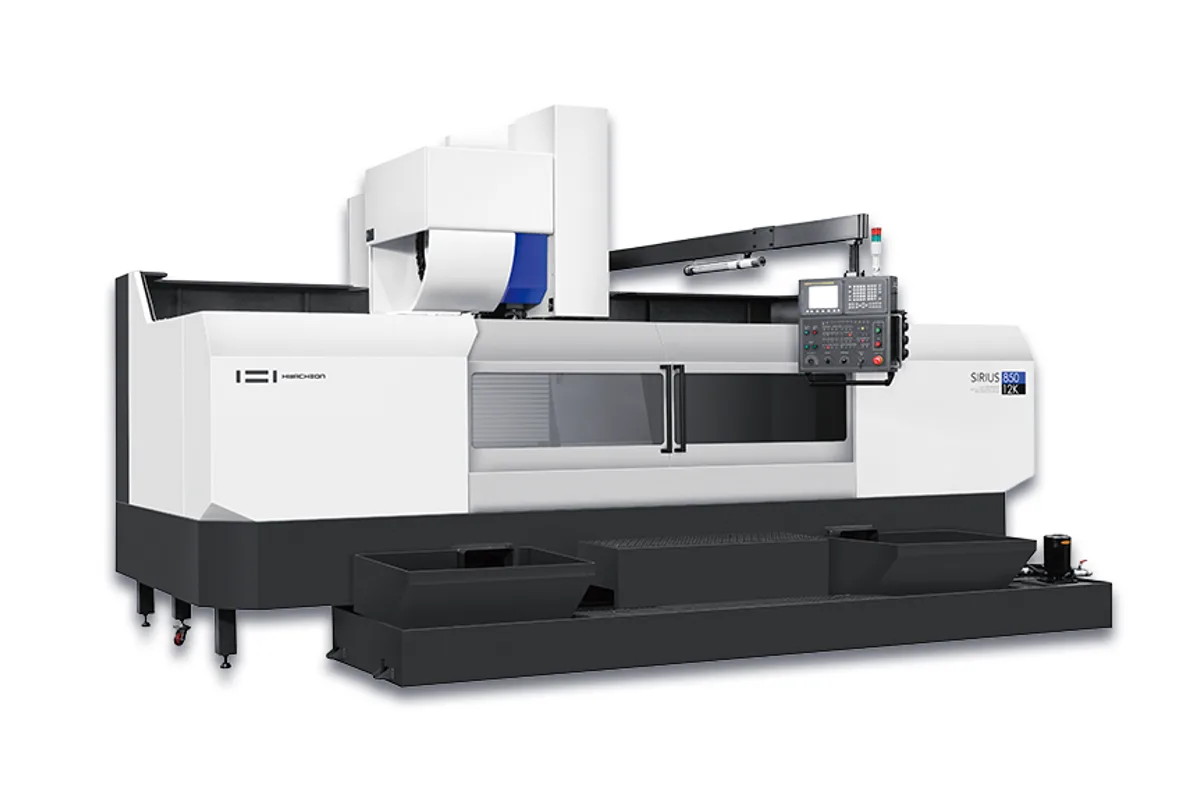

Hwacheon SIRIUS-850
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon SIRIUS-850 cost?
Price estimate
We do not have a price for the Hwacheon SIRIUS-850 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon SIRIUS-850 is the entry size of the large SIRIUS 50-taper verticals above the SIRIUS-650: 2,000 mm (78.7 in) of X, 850 mm (33.5 in) of Y and 750 mm (29.5 in) of Z over a 2,150 x 850 mm (84.6 x 33.5 in) table rated for 4,000 kg (8,818 lb). The spindle nose sits 200 ~ 950 mm (7.9 ~ 37.4 in) above the table, so tall fixtures and long tools both fit under it.
The spindle is a built-in motor unit with an ISO#50 BBT-50 taper, offered at 8,000 or 12,000 rpm, and the table gives a 30 / 25 kW (40.2 / 33.5 hp) rating. Bearings are oil-jet lubricated on a Ø100 mm (Ø3.9 in) bore and the housing is jacket cooled from an oil cooler. Against the SIRIUS-650, which carries an 18.5 / 11 kW (24.8 / 14.8 hp) spindle at 5,000 / 8,000 rpm, this is a clear step up in both power and speed, and the table load rises from 1,500 kg (3,307 lb) to 4,000 kg.
The machine is set up for long plates and frames rather than for fast positioning. Rapids are 16 / 16 / 16 m/min (630 / 630 / 630 ipm) on all three axes, so on a 2,000 mm stroke the non-cutting time is noticeable on hole-heavy parts. Six T-slots, 22 x 125 mm (0.87 x 4.92 in), run the length of the table.
Tooling is a 24-tool memory-random magazine taking BBT-50 holders (CAT-50 optional) up to 350 mm (13.8 in) long and 20 kg (44 lb). Diameter is Ø110 mm (Ø4.3 in) with neighbours in place and Ø200 mm (Ø7.9 in) with the adjacent pockets empty. The table shows no larger magazine for this size, whereas the SIRIUS-1050 lists 24 (opt.: 30). Control is a Fanuc 31i-B.
Plan the site carefully: 20,710 kg (45,657 lb), a 5,730 x 4,670 mm (225.6 x 183.9 in) footprint, 3,670 mm (144.5 in) of height, a 75 kVA supply, 0.5 ~ 0.7 MPa x 1,870 NL/min of air and a 1,020 L (269 US gal) coolant tank.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 2,000 mm (78.7 in) |
| Y Axis Travel | 850 mm (33.5 in) |
| Z Axis Travel | 750 mm (29.5 in) |
| Distance Spindle Nose to Table | 200 ~ 950 mm (7.9 ~ 37.4 in) |
| Table Size | 2,150 x 850 mm (84.6 x 33.5 in) |
| Max Table Load | 4,000 kg (8,818 lb) |
| T-Slots | 22 x 125 mm (0.87 x 4.92 in), 6 slots (width x pitch, count) |
| Max Spindle Speed | 8,000 / 12,000 rpm |
| Spindle Motor Power | 30 / 25 kW (40.2 / 33.5 hp) |
| Spindle Taper | ISO#50, 7/24 Taper (BBT-50) |
| Spindle Bearing Bore | Ø100 mm (Ø3.9 in) |
| Spindle Drive | Built-in motor |
| Spindle Bearing Lubrication | Oil-jet |
| Spindle Cooling | Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 16 / 16 / 16 m/min (630 / 630 / 630 ipm) |
| Tool Shank | BBT-50 (opt.: CAT-50) |
| Pull Stud | 90˚ |
| Tool Capacity | 24 |
| Max Tool Diameter (full magazine) | Ø110 / Ø200 mm (Ø4.3 / Ø7.9 in) (with / without adjacent tools) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 20 kg (44 lb) |
| Tool Selection | Memory Random |
| Power Requirement | 75 kVA |
| Air Supply | 0.5 ~ 0.7 MPa x 1,870 NL/min |
| Coolant Tank Capacity | 1,020 L (269 US gal) |
| Machine Height | 3,670 mm (144.5 in) |
| Floor Space | 5,730 x 4,670 mm (225.6 x 183.9 in) |
| Machine Weight | 20,710 kg (45,657 lb) |
| CNC Control | Fanuc 31i-B |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 2,000 mm (78.7 in) of X travel over a 2,150 x 850 mm (84.6 x 33.5 in) table for long plates and frames
- 4,000 kg (8,818 lb) table load, against 1,500 kg (3,307 lb) on the SIRIUS-650
- Built-in BBT-50 spindle at 8,000 or 12,000 rpm with a 30 / 25 kW (40.2 / 33.5 hp) rating
- 200 ~ 950 mm (7.9 ~ 37.4 in) from spindle nose to table leaves room for risers and long tools
- Magazine takes tools up to Ø200 mm (Ø7.9 in) with adjacent pockets empty, 350 mm (13.8 in) long and 20 kg (44 lb)
Limitations
- Rapids are 16 / 16 / 16 m/min (630 / 630 / 630 ipm), slow for long repositioning moves across a 2,000 mm stroke
- 24 tools with no larger magazine listed for this size, while the SIRIUS-1050 offers 24 (opt.: 30)
- With neighbouring pockets filled, tool diameter is limited to Ø110 mm (Ø4.3 in)
- 20,710 kg (45,657 lb) on a 5,730 x 4,670 mm (225.6 x 183.9 in) footprint, with a 75 kVA supply and 1,870 NL/min of air
Best For
Frequently Asked Questions
01
The SIRIUS-850 has a 2,150 x 850 mm (84.6 x 33.5 in) table rated for 4,000 kg (8,818 lb) and an 8,000 / 12,000 rpm spindle rated 30 / 25 kW (40.2 / 33.5 hp). The SIRIUS-650 has a 1,800 x 650 mm (70.9 x 25.6 in) table, 1,500 kg (3,307 lb) of load and a 5,000 / 8,000 rpm spindle rated 18.5 / 11 kW (24.8 / 14.8 hp). Both use BBT-50 tooling and a Fanuc 31i-B.
02
Two maximum speeds are listed, 8,000 and 12,000 rpm, with a 30 / 25 kW (40.2 / 33.5 hp) rating. Both are built-in motor spindles with an ISO#50 BBT-50 taper, oil-jet lubricated bearings on a Ø100 mm (Ø3.9 in) bore and jacket cooling from an oil cooler. CAT-50 shanks are an option.
03
The 24-tool memory-random magazine accepts tools up to 350 mm (13.8 in) long and 20 kg (44 lb). Diameter is Ø110 mm (Ø4.3 in) when the adjacent pockets hold tools and Ø200 mm (Ø7.9 in) when they are left empty, so large face mills cost you neighbouring pockets.
04
The machine weighs 20,710 kg (45,657 lb), stands 3,670 mm (144.5 in) tall and covers 5,730 x 4,670 mm (225.6 x 183.9 in). It needs a 75 kVA electrical supply and 0.5 ~ 0.7 MPa x 1,870 NL/min of air, and the coolant tank holds 1,020 L (269 US gal).
