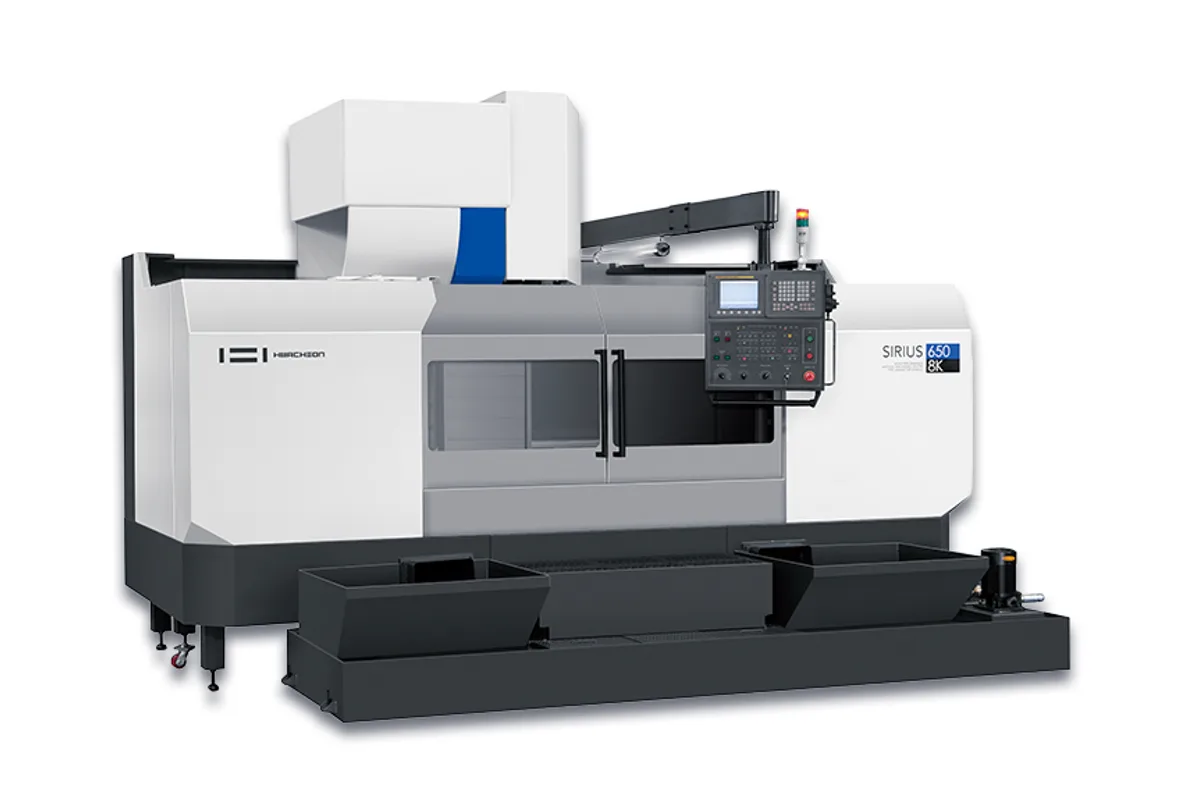

Hwacheon SIRIUS-650
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon SIRIUS-650 cost?
Price estimate
We do not have a price for the Hwacheon SIRIUS-650 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon SIRIUS-650 is a gear-driven BBT-50 vertical machining center with 1,300 mm (51.2 in) of X, 650 mm (25.6 in) of Y and 650 mm (25.6 in) of Z travel, a long 1,800 x 650 mm (70.9 x 25.6 in) table rated 1,500 kg (3,307 lb) and a spindle at 5,000 or 8,000 rpm rated 18.5 / 11 kW (24.8 / 14.8 hp).
The gear drive is what sets it apart in the SIRIUS range. Where the SIRIUS-UX uses a built-in motor at 12,000 or 15,000 rpm and 30 / 25 kW (40.2 / 33.5 hp), the SIRIUS-650 runs a geared 50-taper spindle at lower speed, the layout traditionally used for face milling, heavy drilling and tapping in steel and cast iron. Lubrication follows the speed: grease on the 5K spindle, oil-jet on the 8K. Both use a Ø100 mm (Ø3.9 in) bearing and an oil-cooled jacket.
At 1,800 mm (70.9 in) the table is longer than the 1,300 mm (51.2 in) X stroke, which leaves room for a vise or a second fixture at one end while the other is machined. Five 18 mm T-slots at 125 mm pitch run along it, and the spindle nose works from 200 to 850 mm (7.9 to 33.5 in) above it. Rapids are 15 m/min (591 ipm) on X and Y and 12 m/min (472 ipm) on Z.
The standard machine has a 24-tool memory-random magazine with tools up to Ø110 mm (Ø4.3 in) beside full pockets or Ø220 mm (Ø8.7 in) with neighbours removed, 350 mm (13.8 in) long and 15 kg (33 lb). A version without the tool changer is also listed, weighing 11,700 kg (25,794 lb) against 12,200 kg (26,896 lb) for the ATC machine; it suits shops that change tools by hand on one-off work. BBT-50 holders are standard, CAT-50 optional.
The SIRIUS-650 needs a floor space of 4,280 x 4,010 mm (168.5 x 157.9 in) and 3,210 mm (126.4 in) of height, 40 kVA, and air at 0.5 to 0.7 MPa x 1,230 NL/min. The coolant tank holds 600 L (159 US gal), and the control is Fanuc 31i-B.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 1,300 mm (51.2 in) |
| Y Axis Travel | 650 mm (25.6 in) |
| Z Axis Travel | 650 mm (25.6 in) |
| Distance Spindle Nose to Table | 200 ~ 850 mm (7.9 ~ 33.5 in) |
| Table Size | 1,800 x 650 mm (70.9 x 25.6 in) |
| Max Table Load | 1,500 kg (3,307 lb) |
| T-Slots | 18 x 125 mm (0.71 x 4.92 in), 5 slots (width x pitch, count) |
| Max Spindle Speed | 5,000 / 8,000 rpm |
| Spindle Motor Power | 18.5 / 11 kW (24.8 / 14.8 hp) |
| Spindle Taper | ISO#50, 7/24 Taper (BBT-50) |
| Spindle Bearing Bore | Ø100 mm (Ø3.9 in) |
| Spindle Drive | Gear drive |
| Spindle Bearing Lubrication | 5K: Grease; 8K: Oil-jet |
| Spindle Cooling | Jacket cooling (oil cooler) |
| Rapid Traverse Xyz | 15 / 15 / 12 m/min (591 / 591 / 472 ipm) |
| Tool Shank | BBT-50 (opt.: CAT-50) |
| Pull Stud | 90˚ |
| Tool Capacity | 24 (no-ATC version available) |
| Max Tool Diameter (full magazine) | Ø110 / Ø220 mm (Ø4.3 / Ø8.7 in) (with / without adjacent tools) |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 15 kg (33 lb) |
| Tool Selection | Memory Random [no ATC: -] |
| Power Requirement | 40 kVA |
| Air Supply | 0.5 ~ 0.7 MPa x 1,230 NL/min |
| Coolant Tank Capacity | 600 L (159 US gal) |
| Machine Height | 3,210 mm (126.4 in) |
| Floor Space | 4,280 x 4,010 mm (168.5 x 157.9 in) |
| Machine Weight | 12,200 kg (26,896 lb) [no-ATC version: 11,700 kg (25,794 lb)] |
| CNC Control | Fanuc 31i-B |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- Gear-driven BBT-50 spindle at 5,000 or 8,000 rpm for face milling and heavy drilling
- Long 1,800 x 650 mm (70.9 x 25.6 in) table rated 1,500 kg (3,307 lb)
- Tools up to Ø220 mm (Ø8.7 in) with adjacent pockets empty and up to 15 kg (33 lb)
- Version without tool changer available at 11,700 kg (25,794 lb)
- 600 L (159 US gal) coolant tank
Limitations
- Spindle power is 18.5 / 11 kW (24.8 / 14.8 hp), below the 30 / 25 kW (40.2 / 33.5 hp) of the SIRIUS-UX
- Maximum speed of 8,000 rpm limits small-tool finishing
- 24-tool magazine with no larger option listed
- Rapids of 15 m/min (591 ipm) on X and Y and 12 m/min (472 ipm) on Z
Best For
Frequently Asked Questions
01
Two gear-driven BBT-50 spindles: 5,000 rpm with grease-lubricated bearings and 8,000 rpm with oil-jet lubrication. Both are rated 18.5 / 11 kW (24.8 / 14.8 hp) and run on a Ø100 mm (Ø3.9 in) bearing with an oil-cooled jacket.
02
Yes. A no-ATC version is listed at 11,700 kg (25,794 lb), against 12,200 kg (26,896 lb) for the standard machine with its 24-tool memory-random magazine.
03
The SIRIUS-UX has a built-in BBT-50 spindle at 12,000 or 15,000 rpm rated 30 / 25 kW (40.2 / 33.5 hp), a 1,650 x 750 mm (65.0 x 29.5 in) table rated 2,500 kg (5,512 lb) and 40 tools. The SIRIUS-650 has a longer, narrower 1,800 x 650 mm (70.9 x 25.6 in) table and a geared spindle at lower speed.
04
Up to Ø110 mm (Ø4.3 in) with neighbouring tools in place or Ø220 mm (Ø8.7 in) with them removed, up to 350 mm (13.8 in) long and 15 kg (33 lb). BBT-50 is standard and CAT-50 an option, with a 90° pull stud.
05
A floor space of 4,280 x 4,010 mm (168.5 x 157.9 in) and 3,210 mm (126.4 in) of height for a machine of 12,200 kg (26,896 lb). Supply is 40 kVA and air at 0.5 to 0.7 MPa x 1,230 NL/min.
