Hedelius FORTE 11-3600
Image: hedelius.de, Hedelius
Key Specifications
Tool Capacity
Table Size
Accuracy
x axis travel
y axis travel
z axis travel
How much does the Hedelius FORTE 11-3600 cost?
Price estimate
We do not have a price for the Hedelius FORTE 11-3600 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview

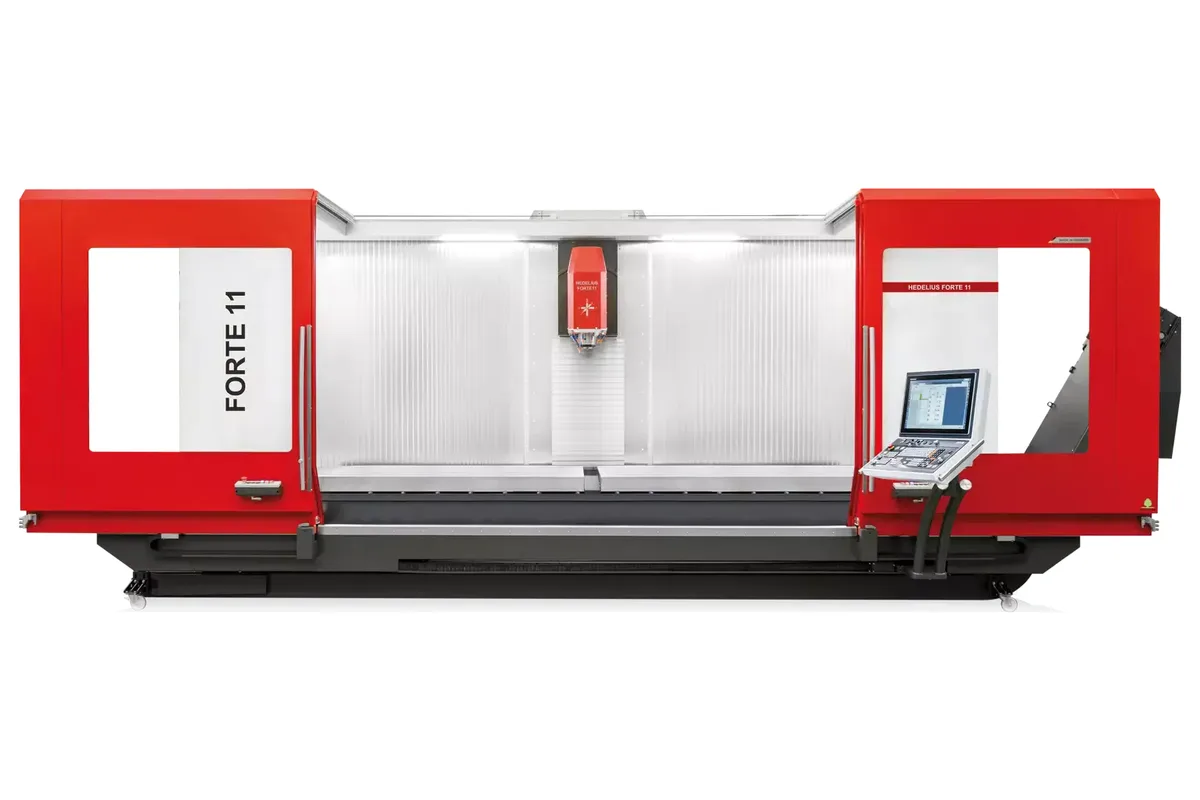

A table of 4,080 x 1,100 mm that takes 5,000 kg (11,023 lb): the Hedelius FORTE 11-3600 is a 3-axis travelling column machining centre for parts that are long and wide at once. X travel is 3,600 mm (141.7 in), Y is 1,100 mm (43.3 in) and Z is 1,005 mm (39.6 in).
Hedelius names machine and tool construction, vehicle construction and aerospace as the fields for this model, the common thread being long workpieces. In practice the wide Y axis is what distinguishes it from other 3,600 mm machines. Sheet-like aerospace parts, die plates and vehicle frame members tend to fail on Y travel before they fail on X.
The spindles are liquid-cooled motor spindles in 40 size. SK40 is the standard mount, with 14,000 rpm and either 117 Nm and 22 kW or 185 Nm and 37 kW. HSK A63 is optional and brings 18,000 rpm with 35 kW or 15,000 rpm with 217 Nm and 50 kW. For aluminium structures the 18,000 rpm unit is the obvious choice; for steel dies, the 217 Nm one. Feeds are 40 m/min and feed force is 27,000 N.
A 65-position tool magazine is standard and travels with the column. The data sheet gives ca. 13 s chip to chip, and theoretical capacities up to 329 with standby magazines. Pendulum operation divides the table into 1,525 x 1,525 mm. Direct measuring systems are fitted, the work area is fully encapsulated, and the chip conveyor can be ordered in right-hand or left-hand design. Machine weight is 23,000 kg (50,705 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 3,600 mm (141.7 in) |
| Y Axis Travel | 1,100 mm (43.3 in) |
| Z Axis Travel | 1,005 mm (39.6 in) |
| Pendulum Operation | 1,525 x 1,525 mm (60.0 x 60.0 in) |
| Spindle Option 1 | SK40 / BT40, 14,000 min-1, 117 Nm (86.3 lb-ft), 22 kW (29.5 hp); in E335/St60-2: milling 400 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 2 | SK40 / BT40, 14,000 min-1, 185 Nm (136 lb-ft), 37 kW (49.6 hp); in E335/St60-2: milling 550 cm3/min, drilling Ø 45 mm (Ø 1.8 in), thread cutting M 27 |
| Spindle Option 3 | HSK A63, 18,000 min-1, 136 Nm (100 lb-ft), 35 kW (46.9 hp); in E335/St60-2: milling 450 cm3/min, drilling Ø 40 mm (Ø 1.6 in), thread cutting M 24 |
| Spindle Option 4 | HSK A63, 15,000 min-1, 217 Nm (160 lb-ft), 50 kW (67.1 hp); in E335/St60-2: milling 600 cm3/min, drilling Ø 50 mm (Ø 2.0 in), thread cutting M 27 |
| Spindle Distance | 15 - 1,020 mm (0.6 - 40.2 in) |
| Table Size | 4,080 x 1,100 mm (160.6 x 43.3 in) |
| T-Slots | 18 mm (0.71 in) T-slots, number 9, distance 125 mm (4.9 in) |
| Max Table Load | 5,000 kg (11,023 lb) |
| Feed Rate Xyz | 40 / 40 / 40 m/min (1,575 / 1,575 / 1,575 ipm) (infinitely variable) |
| Feed Force Max | 27,000 N (6,070 lbf) |
| Formingstar 3d Package | optional |
| Tool Capacity | 65 / 135 / 180 / 245 / 329 |
| Max Tool Diameter (full magazine) | 75 / 100 / 125 mm (3.0 / 3.9 / 4.9 in); 100/125 mm with free adjoining areas (option) |
| Max Tool Length | 330 / 390 mm (13.0 / 15.4 in) |
| Max Tool Weight | 5 kg (11 lb); other weights on request |
| Chip to Chip Time | ca. 13 s (for pre-selected follow-on tools) |
| Positioning Accuracy | A=6 µm/1,000 mm (ISO 230-2, X, Y, Z) |
| Machine Weight | 23,000 kg (50,705 lb) |
| Transport Height | 3,100 mm (122.0 in) |
| Transport Width | 4,230 / 3,940 mm (166.5 / 155.1 in) |
Specifications sourced from hedelius.de — verified 2026-10-04
Strengths & Limitations
Strengths
- 4,080 x 1,100 mm fixed table for 5,000 kg (11,023 lb)
- 1,100 mm of Y travel on a 3,600 mm machine
- 65-position travelling magazine as standard, up to 329 tools in theory
- Choice between 18,000 rpm with 35 kW and 15,000 rpm with 217 Nm and 50 kW in HSK A63
- Pendulum operation in two 1,525 x 1,525 mm areas
Limitations
- 23,000 kg (50,705 lb) with a transport width of 4,230 / 3,940 mm
- HSK A63 and the stronger spindles are options; SK40 is the standard mount
- Tool weight is limited to 5 kg
- Three axes only in the data sheet
Best For
Frequently Asked Questions
01
Hedelius names machine construction, tool construction, vehicle construction and aerospace, wherever long workpieces are machined. The machine offers travels of 3,600 mm in X, 1,100 mm in Y and 1,005 mm in Z for that work.
02
5,000 kg (11,023 lb) on a clamping area of 4,080 x 1,100 mm. The table is fixed and has nine 18 mm T-slots at 125 mm spacing. The spindle distance to the table runs from 15 to 1,020 mm.
03
Four in the data sheet: SK40 / BT40 at 14,000 rpm with 117 Nm and 22 kW, SK40 / BT40 at 14,000 rpm with 185 Nm and 37 kW, HSK A63 at 18,000 rpm with 136 Nm and 35 kW, and HSK A63 at 15,000 rpm with 217 Nm and 50 kW.
04
Yes. Pendulum operation is listed as 1,525 x 1,525 mm, so the table divides into two work areas of 1,525 mm in X, each with the full 1,100 mm of Y. The travelling 65-position magazine serves both areas.
