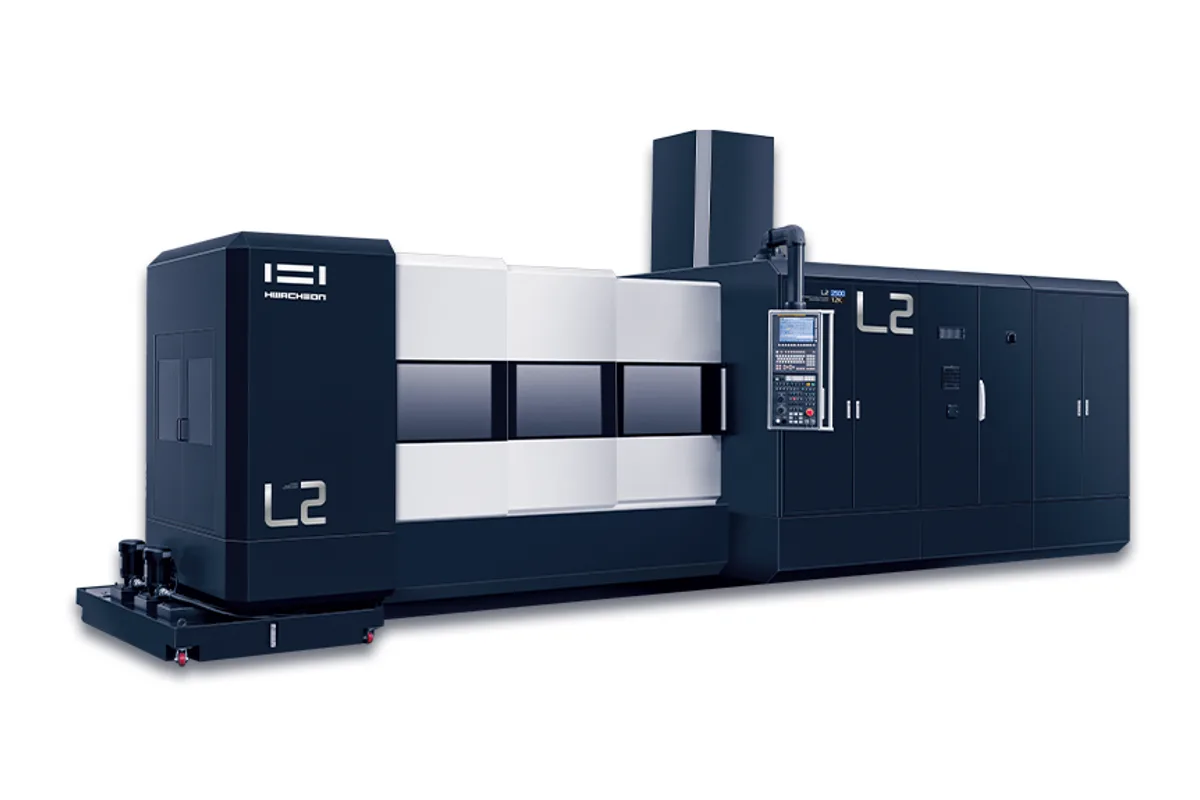

Hwacheon L2
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon L2 cost?
Price estimate
We do not have a price for the Hwacheon L2 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon L2 is a double-column vertical machining center for wide work: 1,100 mm (43.3 in) of Y travel, 1,350 mm (53.1 in) between the columns and a table 1,100 mm (43.3 in) wide. It comes as the L2 2500, with 2,500 mm (98.4 in) of X travel and a 2,500 x 1,100 mm (98.4 x 43.3 in) table, or the L2 3000, with 3,000 mm (118.1 in) of X and a 3,000 x 1,100 mm (118.1 x 43.3 in) table. Z travel is 500 mm (19.7 in) on both.
The width is the point of this model. Nine T-slots of 18 mm at 110 mm pitch cross the table, giving a dense grid for clamping wide plates or two rows of fixtures. The rating, though, is 2,000 kg (4,409 lb), the same as on the narrower Hwacheon L1 with its 900 mm (35.4 in) wide tables, so the L2 adds area rather than carrying capacity. For heavier single parts the Hwacheon L3 is rated 3,000 kg (6,614 lb) on a 3,000 x 1,800 mm (118.1 x 70.9 in) table.
On the floor, the L2 2500 measures 8,540 x 3,785 mm (336.2 x 149.0 in) and weighs 17,000 kg (37,478 lb). The L2 3000 needs 9,780 x 3,785 mm (385.0 x 149.0 in) and weighs 19,000 kg (41,887 lb). Height is 3,060 mm (120.5 in). Electrical demand is 45 kVA at 220V, 60Hz, and the air supply needs 0.5 to 0.7 MPa at 690 Nℓ/min.
Spindle choice is between BT-40 versions at 12,000 rpm (12K), rated 18.5 / 11 kW (24.8 / 14.8 hp), and 20,000 rpm (20K), rated 37 / 18.5 kW (49.6 / 24.8 hp). The spindle nose reaches from 100 to 600 mm (3.9 to 23.6 in) above the table. Rapid traverse is 24 m/min (945 ipm) in X and 36 m/min (1,417 ipm) in Y and Z, with programmable feed up to 20,000 mm/min (787 ipm). A servo-driven arm changes from 30 pockets, with 40 available, and the largest tool is Ø150 mm (Ø5.9 in) when the pockets either side are empty, Ø75 mm (Ø3.0 in) otherwise, with 350 mm (13.8 in) length and 8 kg (17.6 lb) as the other limits.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | L2 2500: 2,500 mm (98.4 in); L2 3000: 3,000 mm (118.1 in) |
| Y Axis Travel | 1,100 mm (43.3 in) |
| Z Axis Travel | 500 mm (19.7 in) |
| Width Between Columns | 1,350 mm (53.1 in) |
| Distance Spindle Nose to Table | 100 ~ 600 mm (3.9 ~ 23.6 in) |
| Table Size | L2 2500: 2,500 x 1,100 mm (98.4 x 43.3 in); L2 3000: 3,000 x 1,100 mm (118.1 x 43.3 in) |
| Max Table Load | 2,000 kg (4,409 lb) |
| T-Slots | 18 x 110 mm, 9 slots (width x pitch: 0.71 x 4.3 in) |
| Max Spindle Speed | 12,000 rpm (12K) / 20,000 rpm (20K) |
| Spindle Motor Power | 12K: 18.5 / 11 kW (24.8 / 14.8 hp); 20K: 37 / 18.5 kW (49.6 / 24.8 hp) |
| Spindle Taper | ISO#40, 7/24 Taper (BT-40) |
| Spindle Bearing Bore | Ø70 mm (Ø2.8 in) |
| Cutting Feed Rate | 1 ~ 20,000 mm/min (up to 787 ipm) |
| Tool Shank | MAS-403 BT-40 |
| Pull Stud | MAS-P40T-1 (45°) |
| Tool Capacity | 30 (40 opt.) |
| Max Tool Diameter (full magazine) | Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in), with / without adjacent tools |
| Max Tool Length | 350 mm (13.8 in) |
| Max Tool Weight | 8 kg (17.6 lb) |
| Tool Selection | Memory random (fixed address opt.) |
| ATC Drive | Servo motor (magazine / swing arm) |
| Axis Motors Xyz | 6 / 4 / 4 kW (8.0 / 5.4 / 5.4 hp) |
| Coolant Pump Motor | 1.1 kW (1.5 hp) |
| Power Requirement | 45 kVA |
| Power Supply | 220V, 60Hz |
| Air Supply | 0.5 ~ 0.7 MPa x 690 Nℓ/min |
| Rapid Traverse Xyz | 24 / 36 / 36 m/min (945 / 1,417 / 1,417 ipm) |
| Machine Height | 3,060 mm (120.5 in) |
| Machine Dimensions | L2 2500: 8,540 x 3,785 mm (336.2 x 149.0 in); L2 3000: 9,780 x 3,785 mm (385.0 x 149.0 in) (length x width) |
| Machine Weight | L2 2500: 17,000 kg (37,478 lb); L2 3000: 19,000 kg (41,887 lb) |
| CNC Control | FANUC 0i-MF Plus |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 1,100 mm (43.3 in) of Y travel and 1,350 mm (53.1 in) between columns for wide plates
- Two lengths: 2,500 mm (98.4 in) of X on the L2 2500 or 3,000 mm (118.1 in) on the L2 3000
- Nine 18 mm T-slots at 110 mm pitch give a close clamping grid across the table
- 20K spindle option with 20,000 rpm and 37 / 18.5 kW (49.6 / 24.8 hp) on BT-40
- Magazine of 30 tools, 40 optional, with tools up to 350 mm (13.8 in) long
Limitations
- Table rating is 2,000 kg (4,409 lb) on both lengths, no more than the narrower Hwacheon L1
- Z travel of 500 mm (19.7 in) limits tall parts and angle heads
- X rapids at 24 m/min (945 ipm) are slower than the 36 m/min (1,417 ipm) of Y and Z
- The L2 3000 weighs 19,000 kg (41,887 lb) and needs 9,780 x 3,785 mm (385.0 x 149.0 in) of floor
Best For
Frequently Asked Questions
01
Two. The L2 2500 has 2,500 mm (98.4 in) of X travel and a 2,500 x 1,100 mm (98.4 x 43.3 in) table and weighs 17,000 kg (37,478 lb). The L2 3000 has 3,000 mm (118.1 in) of X travel and a 3,000 x 1,100 mm (118.1 x 43.3 in) table and weighs 19,000 kg (41,887 lb).
02
The Hwacheon L1 has 900 mm (35.4 in) wide tables in 1,500 and 2,500 mm lengths. The L2 widens the table to 1,100 mm (43.3 in) and adds a 3,000 mm (118.1 in) length. Both are rated 2,000 kg (4,409 lb) and use the same 12K and 20K BT-40 spindle options.
03
The table is rated 2,000 kg (4,409 lb) on both lengths. Where a part or fixture is heavier, the Hwacheon L3 is rated 3,000 kg (6,614 lb) on its 3,000 x 1,800 mm (118.1 x 70.9 in) table.
04
A 12K spindle at 12,000 rpm rated 18.5 / 11 kW (24.8 / 14.8 hp) and a 20K spindle at 20,000 rpm rated 37 / 18.5 kW (49.6 / 24.8 hp). Both use ISO#40 7/24 BT-40 tooling with a Ø70 mm (Ø2.8 in) bearing bore.
05
45 kVA at 220V, 60Hz, and air at 0.5 to 0.7 MPa with a flow of 690 Nℓ/min. The coolant pump motor is rated 1.1 kW (1.5 hp). Check the 3,060 mm (120.5 in) machine height against the building as well.
