Victor Taichung Vcenter-P76APC
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
Accuracy
How much does the Victor Taichung Vcenter-P76APC cost?
Price estimate
We do not have a price for the Victor Taichung Vcenter-P76APC that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Victor Taichung Vcenter-P76APC is a vertical machining center with an automatic pallet changer, so one part can be loaded while another is cut. Each pallet measures 720 x 400 mm (28.34 x 15.74 in) and carries 200 kg (440.92 lb). Travels are 760 mm (29.92 in) in X, 460 mm (18.11 in) in Y and 540 mm (21.25 in) in Z.
The pallet changer is the machine's reason for being, and the maker gives two facts about it. The mechanism is seated on the ground for rigidity, not hung from the machine, and a pallet exchange takes 15 seconds including the time to check the air seal. Against a manual unload and reload inside the enclosure, that is the saving on every cycle.
Pallets replace the T-slot table. Their surface is a grid of 45 M12 tapped holes on an 80 x 80 pitch, as the table row prints it, so fixtures bolt down to a pattern and repeat from pallet to pallet. The 200 kg (440.92 lb) limit has to cover the fixture and the part together.
The cutting side is the P series package: a 12,000 rpm BBT-40 spindle, 30 tools, and a motor of 11 / 15 / 18.5 kW (15 / 20 / 25 HP), or 7.5 / 11 / 15 kW (10 / 15 / 20 HP) with coolant through the spindle. The control panel sits on the right, and linear scales and a 4th axis can be installed. Weight is 6,500 kg (14,330.02 lb).
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 760 mm (29.92 in) |
| Y Axis Travel | 460 mm (18.11 in) |
| Z Axis Travel | 540 mm (21.25 in) |
| Table Size | 720 x 400 mm (28.34 x 15.74 in) |
| T-Slots | 45-M12 (80 x 80) mm |
| Max Table Load | 200 kg (440.92 lb) |
| Spindle Taper | BBT-40 |
| Spindle Motor Power | Non CTS: 11 / 15 / 18.5 kW (15 / 20 / 25 HP); CTS: 7.5 / 11 / 15 kW (10 / 15 / 20 HP) |
| Max Spindle Speed | 12,000 rpm |
| Tool Capacity | 30 |
| Max Tool Weight | 7 kg (15.43 lb) |
| Positioning Accuracy | 0.010 mm |
| Repeatability | 0.007 mm (±0.0035 mm) |
| Machine Weight | 6,500 kg (14,330.02 lb) |
Specifications sourced from machine-tools.victortaichung.com — verified 2026-10-05
Strengths & Limitations
Strengths
- Automatic pallet changer with a 15 seconds exchange time
- Two 720 x 400 mm (28.34 x 15.74 in) pallets with a tapped-hole grid
- 12,000 rpm BBT-40 spindle and 30 tools
- APC mechanism seated on the ground for rigidity
- Linear scales and a 4th axis can be installed
Limitations
- Pallet load is 200 kg (440.92 lb), fixture included
- Y travel is 460 mm (18.11 in), less than the Vcenter-P76
- CTS column lists the smaller 7.5 / 11 / 15 kW (10 / 15 / 20 HP) motor
- Fixtures must suit the M12 hole grid; there are no T-slots
Best For
Frequently Asked Questions
01
Victor Taichung gives a pallet exchange time of 15 seconds, including the air sealing detection time. The changer mechanism stands on the ground beside the machine.
02
720 x 400 mm (28.34 x 15.74 in), each rated for 200 kg (440.92 lb). The surface row lists 45-M12 holes on an 80 x 80 pattern in place of T-slots.
03
It adds the pallet changer and changes the envelope: Y travel is 460 mm (18.11 in) and Z travel is 540 mm (21.25 in), and the load limit is 200 kg (440.92 lb). The Vcenter-P76 has a fixed 840 x 500 mm (33.07 x 19.68 in) table rated for 500 kg (1,102.30 lb).
04
A BBT-40 spindle at 12,000 rpm. The motor is listed at 11 / 15 / 18.5 kW (15 / 20 / 25 HP) in the Non CTS column and 7.5 / 11 / 15 kW (10 / 15 / 20 HP) in the CTS column.
More from Victor Taichung
Other Vertical Machining Centers (VMC)
AWEA LP-3025
Röders RXU2000

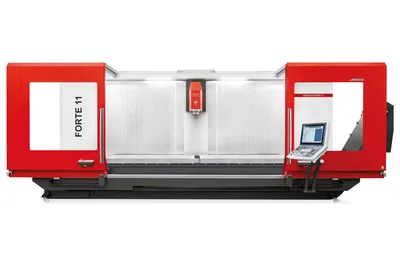

Hedelius FORTE 11-3600

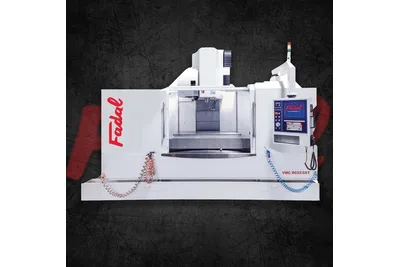

Fadal VMC 8032/50T
