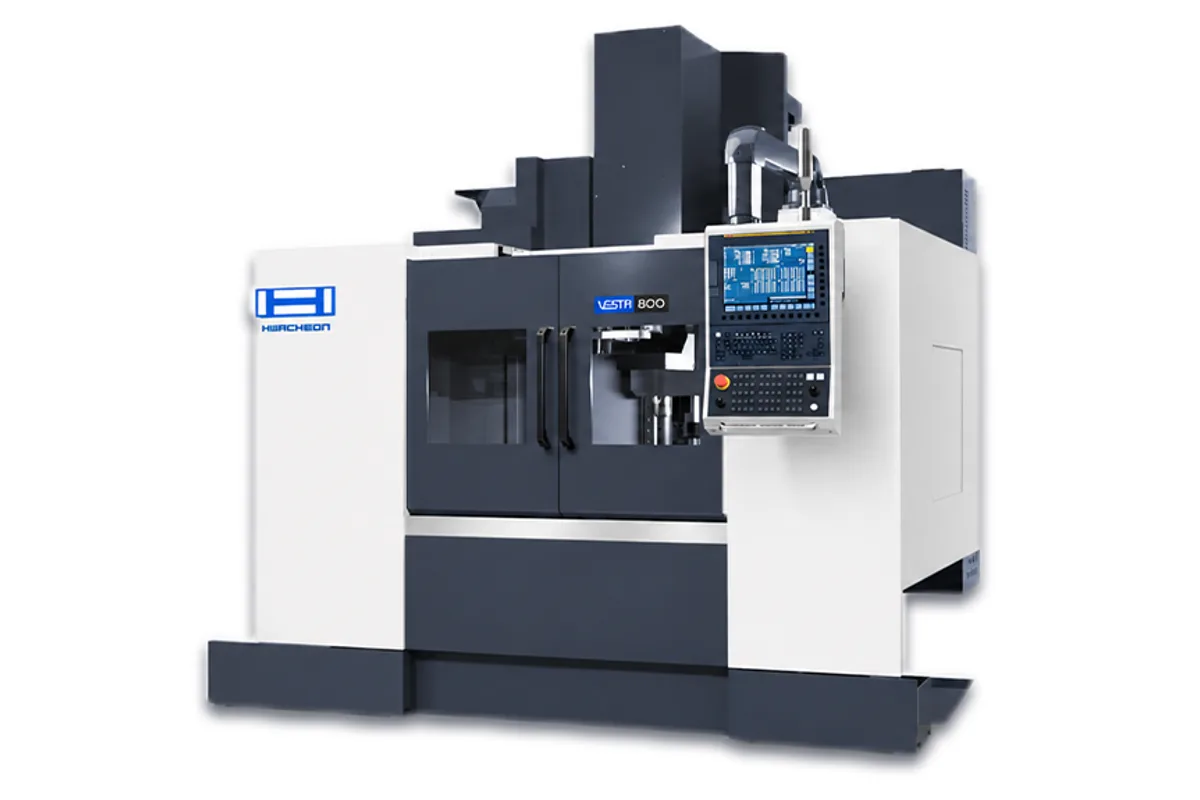

Hwacheon VESTA-800
Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon VESTA-800 cost?
Price estimate
We do not have a price for the Hwacheon VESTA-800 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon VESTA-800 is a compact 40-taper vertical with 800 mm (31.5 in) of X, 550 mm (21.65 in) of Y and 550 mm (21.65 in) of Z over a 1,000 x 550 mm (39.4 x 21.7 in) table, in a machine of 4,300 kgf (9,479 lbf) that needs only 25 kVA. It comes as an STD or a PRO version, and the choice changes both spindle and rapids.
The STD machine offers two spindle ratings. One runs to 10,000 rpm at 11 / 7.5 kW (15 / 10 HP); the other runs to 10,000 / 12,000 rpm at 18.5 / 11 kW (25 / 15 HP). The PRO version runs to 15,000 rpm at 18.5 / 11 kW and raises X and Y rapids from 36 m/min (1,417 ipm) to 42 m/min (1,654 ipm), with Z at 36 m/min in both. Through-spindle coolant versions are optional and raise the supply to 30 kVA. All spindles take BBT-40 (CAT-40 and SK-40 optional) on a Ø70 mm (Ø2.76 in) bearing bore.
The spindle nose comes down to 90 mm (3.54 in) above the table, giving a range of 90 ~ 640 mm (3.54 ~ 25.2 in), so short tools reach thin plates without a riser. Five 18 x 90 mm (0.71 x 3.54 in) T-slots cross the table, which is rated 600 kgf (1,322.77 lbf). The spindle centre is 590 mm (23.23 in) from the column.
The magazine holds 24 tools as standard and 30 as an option, memory random, for tools up to 300 mm (11.81 in) long, 8 kgf (17.64 lbf), and Ø80 / Ø150 mm (Ø3.15 / Ø5.91 in) with / without adjacent tools. The coolant tank is 390 L (103.3 gal), with 690 L (182.3 gal) as an option.
Against the VESTA-850B, which has a geared 8,000 rpm BT-40 or 6,000 rpm BT-50 spindle and 800 kg (1,764 lb) of table load, the VESTA-800 is the faster, lighter choice for high-speed work in a smaller footprint of 3,085 x 2,596 mm (121.46 x 102.2 in). It stands 2,906 mm (114.41 in) tall and runs a Fanuc 0i-MF Plus.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 800 mm (31.5 in) |
| Y Axis Travel | 550 mm (21.65 in) |
| Z Axis Travel | 550 mm (21.65 in) |
| Distance Spindle Nose to Table | 90 ~ 640 mm (3.54 ~ 25.2 in) |
| Distance Column to Spindle Center | 590 mm (23.23 in) |
| Table Size | 1,000 x 550 mm (39.4 x 21.7 in) |
| Max Table Load | 600 kgf (1,322.77 lbf) |
| T-Slots | 18 x 90 mm (0.71 x 3.54 in), 5 slots (width x pitch, count) |
| Max Spindle Speed | STD: 10,000 rpm (11 / 7.5 kW) or 10,000 / 12,000 rpm (18.5 / 11 kW); PRO: 15,000 rpm; through-spindle coolant versions opt. |
| Spindle Motor Power | STD 10,000 rpm: 11 / 7.5 kW (15 / 10 HP); STD 10,000 / 12,000 rpm and PRO: 18.5 / 11 kW (25 / 15 HP) |
| Spindle Taper | ISO#40, 7/24 Taper (BBT-40) |
| Spindle Bearing Bore | Ø70 mm (Ø2.76 in) |
| Rapid Traverse Xyz | STD: 36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm); PRO: 42 / 42 / 36 m/min (1,654 / 1,654 / 1,417 ipm) |
| Tool Shank | BBT-40 (opt.: CAT-40, SK-40) |
| Pull Stud | MAS P40T-1 (45˚) |
| Tool Capacity | 24 (opt.: 30) |
| Max Tool Diameter (full magazine) | Ø80 / Ø150 mm (Ø3.15 / Ø5.91 in) (with / without adjacent tools) |
| Max Tool Length | 300 mm (11.81 in) |
| Max Tool Weight | 8 kgf (17.64 lbf) |
| Tool Selection | Memory Random |
| Power Requirement | 25 kVA (through-spindle coolant: 30 kVA) |
| Air Supply | 0.5 ~ 0.7 MPa x 690 NL/min |
| Coolant Tank Capacity | 390 L (103.3 gal) [opt.: 690 L (182.3 gal)] |
| Machine Height | 2,906 mm (114.41 in) |
| Machine Dimensions | 3,085 x 2,596 mm (121.46 x 102.2 in) |
| Machine Weight | 4,300 kgf (9,479 lbf) |
| CNC Control | Fanuc 0i-MF Plus |
Specifications sourced from hwacheon.com — verified 2026-09-25
Strengths & Limitations
Strengths
- PRO version runs to 15,000 rpm with 42 / 42 / 36 m/min (1,654 / 1,654 / 1,417 ipm) rapids
- Only 25 kVA of supply, or 30 kVA with through-spindle coolant
- Spindle nose reaches 90 mm (3.54 in) from the table for short tools on thin parts
- Magazine of 24 tools with a 30-tool option, and CAT-40 or SK-40 shanks available
- Coolant tank can grow from 390 L (103.3 gal) to an optional 690 L (182.3 gal)
Limitations
- Table load is 600 kgf (1,322.77 lbf), below the 800 kg (1,764 lb) of the VESTA-850B
- The base STD 10,000 rpm spindle is rated only 11 / 7.5 kW (15 / 10 HP)
- No 50-taper option, unlike the VESTA-850B
- Tools are limited to 8 kgf (17.64 lbf) and 300 mm (11.81 in)
Best For
Frequently Asked Questions
01
The STD has a 10,000 rpm spindle at 11 / 7.5 kW (15 / 10 HP) or a 10,000 / 12,000 rpm spindle at 18.5 / 11 kW (25 / 15 HP), with 36 / 36 / 36 m/min (1,417 / 1,417 / 1,417 ipm) rapids. The PRO runs to 15,000 rpm at 18.5 / 11 kW and rapids at 42 / 42 / 36 m/min (1,654 / 1,654 / 1,417 ipm).
02
The table is 1,000 x 550 mm (39.4 x 21.7 in) and is rated 600 kgf (1,322.77 lbf), with five 18 x 90 mm (0.71 x 3.54 in) T-slots. Add up vise, fixture, any rotary and the part before loading a heavy job.
03
The VESTA-1100 has a 1,300 x 600 mm (51.2 x 23.6 in) table rated 1,000 kg (2,205 lb) as STD and 800 kg (1,764 lb) as PRO, 30 tools and a weight of 5,900 kg (13,007 lb). The VESTA-800 is smaller, with a 1,000 x 550 mm table rated 600 kgf, 24 tools (opt.: 30) and 4,300 kgf (9,479 lbf).
04
A 25 kVA supply, or 30 kVA with through-spindle coolant, and 0.5 ~ 0.7 MPa x 690 NL/min of air. The machine weighs 4,300 kgf (9,479 lbf), measures 3,085 x 2,596 mm (121.46 x 102.2 in) and is 2,906 mm (114.41 in) tall.
Videos

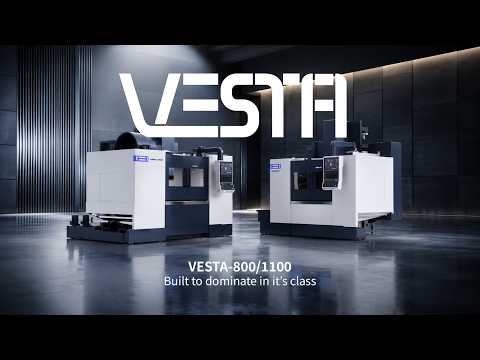

화천기계 - Hwacheon Machine Tools
화천기계 - Hwacheon Machine Tools

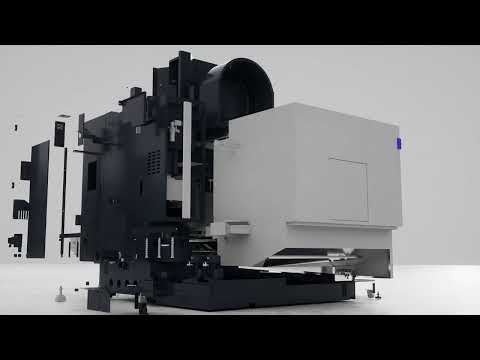

Hwacheon Machinery Europe GmbH

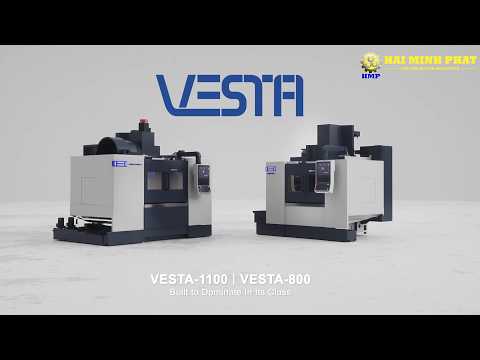

Công ty TNHH Kỹ thuật Hải Minh Phát
