Hwacheon U1

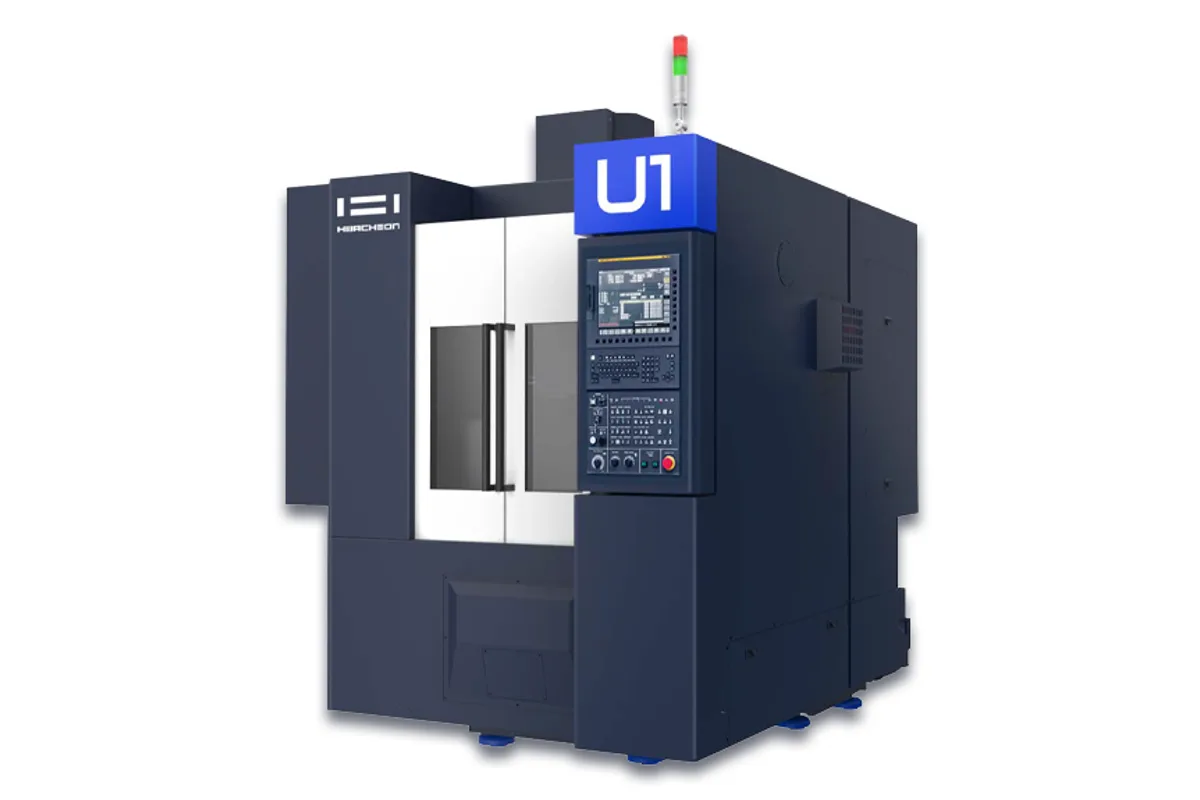

Image: hwacheon.com, Hwacheon
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
Spindle Power
x axis travel
How much does the Hwacheon U1 cost?
Price estimate
We do not have a price for the Hwacheon U1 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Hwacheon U1 is a compact 40-taper vertical with 600 mm (23.6 in) of X, 450 mm (17.7 in) of Y and 350 mm (13.8 in) of Z, a 15,000 rpm spindle rated 18.5 / 15 kW (24.8 / 20.1 hp) and 30 m/min (1,181 ipm) rapids on all three axes. The table is 700 x 450 mm (27.6 x 17.7 in) and carries 500 kg (1,102 lb), which is more than the 400 kg (882 lb) of the Hi-M G1 on a table of similar size.
For a machine with 600 mm of X the spindle is strong, and the two figures of its rating sit close together at 18.5 and 15 kW. The bearings sit on a Ø70 mm (Ø2.8 in) bore with air-oil lubrication and jacket cooling, and the taper is ISO#40 BBT-40, with CAT-40, HSK-A63 and SK-40 shanks as options. Against the 24,000 rpm HSK-E40 spindle of the Hi-M760, the U1 gives up top speed for a larger taper and more power.
The working envelope is small. The spindle nose sits 150 ~ 500 mm (5.9 ~ 19.7 in) above the table, the Z guideway is 179 mm (7.0 in) from the spindle centre and the columns are 900 mm (35.4 in) apart. Five 18 x 80 mm T-slots cross the table. Cutting feed runs from 1 ~ 24,000 mm/min (up to 945 ipm), driven by 3 kW (4.0 hp) motors on each axis.
A 20-tool swing-arm changer with memory-random selection takes tools up to 200 mm (7.9 in) long and 8 kg (17.6 lb), Ø75 mm (Ø3.0 in) with neighbours loaded or Ø150 mm (Ø5.9 in) without. The 200 mm length limit, together with 350 mm of Z, is the main constraint on deep pockets.
The machine weighs 6,500 kg (14,330 lb), measures (1,700+300) x 2,661 mm (78.7 x 104.8 in) and stands 2,714 mm (106.9 in) tall. It needs 55 kVA and 0.5 ~ 0.7 MPa x 690 Nℓ/min of air, has a 190 L (50 US gal) coolant tank and runs a Fanuc 0i-MF Plus.
Full Specifications
| Parameter | Value |
|---|---|
| X Axis Travel | 600 mm (23.6 in) |
| Y Axis Travel | 450 mm (17.7 in) |
| Z Axis Travel | 350 mm (13.8 in) |
| Distance Spindle Nose to Table | 150 ~ 500 mm (5.9 ~ 19.7 in) |
| Distance Z Guideway to Spindle Center | 179 mm (7.0 in) |
| Distance Between Columns | 900 mm (35.4 in) |
| Table Size | 700 x 450 mm (27.6 x 17.7 in) |
| Max Table Load | 500 kg (1,102 lb) |
| T-Slots | 18 x 80 mm, 5 slots (width x pitch: 0.71 x 3.1 in) |
| Max Spindle Speed | 15,000 rpm |
| Spindle Motor Power | 18.5 / 15 kW (24.8 / 20.1 hp) |
| Spindle Taper | ISO#40, 7/24 Taper (BBT-40) |
| Spindle Bearing Bore | Ø70 mm (Ø2.8 in) |
| Spindle Lubrication Cooling | Air-oil lubrication + jacket cooling |
| Rapid Traverse Xyz | 30 / 30 / 30 m/min (1,181 / 1,181 / 1,181 ipm) |
| Cutting Feed Rate | 1 ~ 24,000 mm/min (up to 945 ipm) |
| Axis Motors Xyz | 3 / 3 / 3 kW (4.0 / 4.0 / 4.0 hp) |
| Tool Shank | MAS-403 BBT-40 (CAT-40, HSK-A63, SK-40 opt.) |
| Pull Stud | MAS P40T-1 (45°) |
| Tool Capacity | 20 |
| Max Tool Diameter (full magazine) | Ø75 / Ø150 mm (Ø3.0 / Ø5.9 in), with / without adjacent tools |
| Max Tool Length | 200 mm (7.9 in) |
| Max Tool Weight | 8 kg (17.6 lb) |
| Tool Selection | Memory Random |
| ATC Type | Swing Arm Type |
| Power Requirement | 55 kVA |
| Air Supply | 0.5 ~ 0.7 MPa x 690 Nℓ/min |
| Coolant Tank | 190 L (50 US gal) |
| Machine Height | 2,714 mm (106.9 in) |
| Machine Dimensions | (1,700+300) x 2,661 mm (78.7 x 104.8 in) (length x width) |
| Machine Weight | 6,500 kg (14,330 lb) |
| CNC Control | Fanuc 0i-MF Plus |
Specifications sourced from hwacheon.com — verified 2026-10-03
Strengths & Limitations
Strengths
- 15,000 rpm BBT-40 spindle rated 18.5 / 15 kW (24.8 / 20.1 hp)
- 30 m/min (1,181 ipm) rapids and cutting feed up to 24,000 mm/min (945 ipm)
- 500 kg (1,102 lb) table load on a 700 x 450 mm (27.6 x 17.7 in) table
- Shank options of CAT-40, HSK-A63 and SK-40 alongside MAS-403 BBT-40
- Swing-arm changer with memory-random selection for 20 tools
Limitations
- Travels of 600 x 450 x 350 mm (23.6 x 17.7 x 13.8 in) restrict it to small parts
- Tool length is limited to 200 mm (7.9 in), short for deep cavities
- 20 tools is a small magazine for high-mix work
- The 190 L (50 US gal) coolant tank is small for long flood-coolant runs
Best For
Frequently Asked Questions
01
A 15,000 rpm ISO#40 BBT-40 spindle rated 18.5 / 15 kW (24.8 / 20.1 hp), with bearings on a Ø70 mm (Ø2.8 in) bore, air-oil lubrication and jacket cooling. CAT-40, HSK-A63 and SK-40 shanks are options.
02
The 20-tool swing-arm changer takes tools up to 200 mm (7.9 in) long and 8 kg (17.6 lb). Diameter is Ø75 mm (Ø3.0 in) with adjacent tools loaded and Ø150 mm (Ø5.9 in) with the neighbouring pockets empty.
03
The Hi-M G1 runs a 24,000 rpm HSK-E40 spindle rated 9.5 kW (12.7 hp) over a 750 x 620 mm (29.5 x 24.4 in) table rated 400 kg (882 lb), and weighs 4,800 kg (10,582 lb). The U1 trades speed for a 40-taper spindle rated 18.5 / 15 kW (24.8 / 20.1 hp) and a 500 kg (1,102 lb) table load, at 6,500 kg (14,330 lb).
04
The U1 weighs 6,500 kg (14,330 lb), measures (1,700+300) x 2,661 mm (78.7 x 104.8 in) and is 2,714 mm (106.9 in) tall. It needs 55 kVA and 0.5 ~ 0.7 MPa x 690 Nℓ/min of compressed air. The coolant tank holds 190 L (50 US gal).
