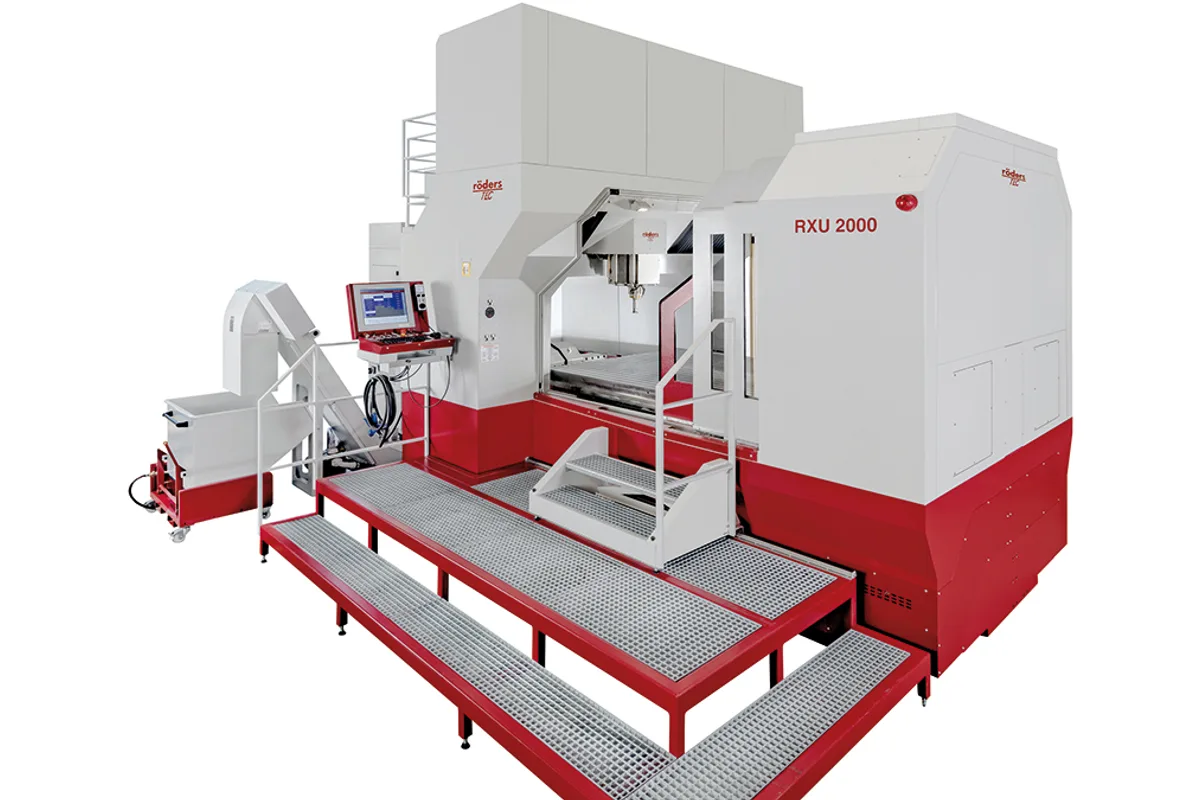

Röders RXU2000
Image: roeders.de, Röders
Key Specifications
Max Spindle
Spindle Taper
Tool Capacity
Table Size
machining range
t slots
How much does the Röders RXU2000 cost?
Price estimate
We do not have a price for the Röders RXU2000 that we can stand behind, so we show no number. Configuration, options and installation move the final price a long way: a quote is the reliable figure.
Overview
The Röders RXU2000 is a large portal machine that comes in two versions: one with a machining range of 2,000 mm x 1,800 mm x 800 mm (78.7 x 70.9 x 31.5 in), and one with 2,400 mm x 1,400 mm x 800 mm (94.5 x 55.1 x 31.5 in). Röders describes the choice as a rather squared or an elongated table. Both carry workpieces up to 5,000 kg (11,023 lb).
The tables measure 2,000 mm x 1,750 mm and 2,300 mm x 1,750 mm, with 22 mm T-slots at a distance of 170 mm. Röders names large progressive dies as the work the machine is ideally suited for, and the elongated version fits that kind of long, narrow tool. Crane loading is possible from both sides, a practical point when a 5,000 kg die set has to be placed without turning it in the aisle.
Precision on a part this size is a temperature problem. Röders offers temperature control of the machining area as an option and links it to temperature-controlled grinding oil, so the machine is evidently intended to jig grind large plates as well as mill them.
The spindle is the RXU standard, 24,000 rpm with 67 Nm (S1) on HSK A63 and tools up to 35 mm, with 102 Nm (S1) as the largest option. The chain changer holds 86 tools. Unlike the smaller models, the measuring laser stands beside the table with chip protection, and 2 screws deliver chips straight to a conveyor. The machine weighs about 49.0 t and needs W 5,510 mm x L 6,500 mm, depending on configuration, by H 4,350 mm.
Full Specifications
| Parameter | Value |
|---|---|
| Machining Range | 2,000 mm x 1,800 mm x 800 mm (78.7 x 70.9 x 31.5 in); 2,400 mm x 1,400 mm x 800 mm (94.5 x 55.1 x 31.5 in) |
| Table Size | 2,000 mm x 1,750 mm (78.7 x 68.9 in); 2,300 mm x 1,750 mm (90.6 x 68.9 in) |
| T-Slots | 22 mm (0.87 in), distance 170 mm (6.7 in) |
| Distance Spindle Nose to Table | 1,000 mm (39.4 in) (2,000 mm version); 950 mm (37.4 in) (2,400 mm version) |
| Max Workpiece Weight | 5,000 kg (11,023 lb) |
| Feed Rate | 0–60,000 mm/min (0–2,362 ipm) |
| Max Spindle Speed | 24,000 rpm (standard spindle; others on request) |
| Spindle Torque | 67 Nm (S1) (49.4 lb-ft) |
| Spindle Taper | HSK A63 |
| Max Tool Diameter (full magazine) | 35 mm (1.4 in) |
| Tool Capacity | 86 places, optional more places (chain changer – can be loaded during machining) |
| Tool Measurement | Measuring laser: placed aside the table with chip protection |
| Chip Disposal | With 2 screws into chip conveyor |
| Machine Weight | ~49.0 t (~108,025 lb) |
| Required Space | W 5,510 mm x L 6,500 mm (depending on configuration) x H 4,350 mm (216.9 x 255.9 x 171.3 in) |
Specifications sourced from roeders.de — verified 2026-10-05
Strengths & Limitations
Strengths
- Two versions: 2,000 mm x 1,800 mm x 800 mm or 2,400 mm x 1,400 mm x 800 mm machining range
- 5,000 kg (11,023 lb) workpiece weight
- Crane loading from both sides
- Optional temperature control of the machining area
- 86 tool places as standard, with chip conveyor
Limitations
- Weighs about 49.0 t, so foundation and transport need planning
- W 5,510 mm x L 6,500 mm x H 4,350 mm of space, with the length depending on configuration
- Spindle-nose-to-table distance is 950 mm on the 2,400 mm version, against 1,000 mm on the 2,000 mm version
- Temperature control of the machining area costs extra as an option
Best For
Frequently Asked Questions
01
One has a machining range of 2,000 mm x 1,800 mm x 800 mm and a 2,000 mm x 1,750 mm table. The other has 2,400 mm x 1,400 mm x 800 mm and a 2,300 mm x 1,750 mm table. Röders describes them as a rather squared and an elongated table.
02
Both versions are listed with a maximum workpiece weight of 5,000 kg (11,023 lb). Röders notes that crane loading is possible from both sides of the machine.
03
Length and load. The RXU2600 offers machining ranges of 2,600 mm x 1,800 mm x 800 mm or 3,000 mm x 1,400 mm x 800 mm and takes 6,000 kg, where the RXU2000 takes 5,000 kg. Spindle, tool changer and feed are the same.
04
The technical data place the measuring laser aside the table with chip protection. On the smaller Röders models it is listed as integrated with the tool changer row instead.
